1 Cementing Institute, Sinopec Research Institute of Petroleum Engineering, Beijing 100101, China 2 Cementing Branch, Sinopec Southwest Petroleum Engineering Co., Ltd., Chengdu 610000, China 3 Center of Advanced Elastomer Materials, School of Materials Science and Engineering, Beijing University of Chemical Technology, Beijing 100029, China

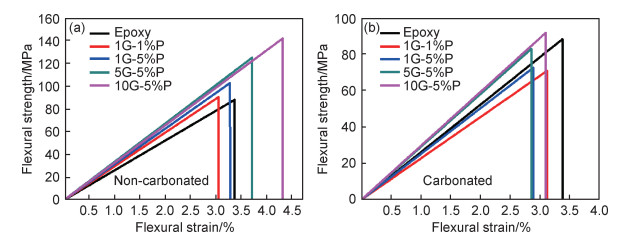

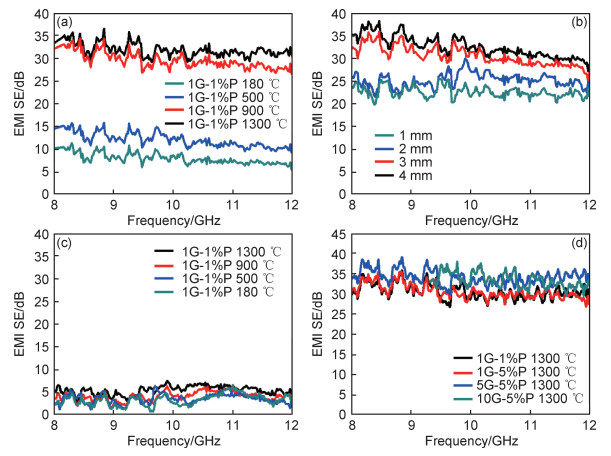

Lightweight and cellular-structured graphene-pyrrole (G-P) aerogels /epoxy composites were prepared basing on the three-step fabrication process which involving infiltration of epoxy resin into G-P aerogels under vacuum atmosphere. The microstructure of G-P aerogels possesses uniform three-dimensional structure, which can also be preserved well in epoxy composite. The three-dimensional interconnected graphene network serves as fast channels for charge carriers. The conductive property of the composite is improved significantly, 67.1 S/m with only 0.23%(mass fraction) filler content (1G-1%P, 1300 ℃). The electromagnetic interference shielding effectiveness (EMI SE) of the composite (1G-1%P, 1300 ℃) can reach 33 dB in the frequency range of 8-12 GHz. More importantly, the G-P aerogel network also enhances the mechanical properties of epoxy matrix. Flexural strength and flexural modulus are increased by 60.93% and 25.98% respectively (10G-5%P, 180 ℃). Implication of the results suggests that the three-dimensional structure is an effective method for preparing composites with both excellent EMI SE and mechanical properties.
GU Y , XU Y , WANG Y . Graphene-wrapped CoS nanoparticles for high-capacity lithium-ion storage[J]. ACS Applied Materials & Interfaces, 2013, 5 (3): 801- 806.
2
JU S A , KIM K , KIM J H , et al. Graphene-wrapped hybrid spheres of electrical conductivity[J]. ACS Applied Materials & Interfaces, 2011, 3 (8): 2904- 2911.
3
DUAN X , XIAO S , WANG L , et al. Ionic liquid-modulated preparation of hexagonal tungsten trioxide mesocrystals for lithium-ion batteries[J]. Nanoscale, 2015, 7 (6): 2230- 2234.
doi: 10.1039/C4NR05717A
4
AN F , LI X , MIN P , et al. Vertically aligned high-quality graphene foams for anisotropically conductive polymer composites with ultrahigh through-plane thermal conductivities[J]. ACS Applied Materials & Interfaces, 2018, 10 (20): 17383- 17392.
5
LIU T , HUANG M , LI X , et al. Highly compressible anisotropic graphene aerogels fabricated by directional freezing for efficient absorption of organic liquids[J]. Carbon, 2016, 100, 456- 464.
doi: 10.1016/j.carbon.2016.01.038
6
SASIKALA S P , POULIN P , AYMONIER C . Advances in subcritical hydro-/solvothermal processing of graphene materials[J]. Advanced Materials, 2017, 29 (22): 1605473.
doi: 10.1002/adma.201605473
7
WU Y , YI N , HUANG L , et al. Three-dimensionally bonded spongy graphene material with super compressive elasticity and near-zero Poisson's ratio[J]. Nature Communications, 2015, 6 (1): 1- 9.
8
YAO B , CHEN J , HUANG L , et al. Base-induced liquid crystals of graphene oxide for preparing elastic graphene foams with long-range ordered microstructures[J]. Advanced Materials, 2016, 28 (8): 1623- 1629.
doi: 10.1002/adma.201504594
9
CONG H P , REN X C , WANG P , et al. Macroscopic multifunctional graphene-based hydrogels and aerogels by a metal ion induced self-assembly process[J]. ACS Nano, 2012, 6 (3): 2693- 2703.
doi: 10.1021/nn300082k
10
WU C , HUANG X , WU X , et al. Mechanically flexible and multifunctional polymer-based graphene foams for elastic conductors and oil-water separators[J]. Advanced Materials, 2013, 25 (39): 5658- 5662.
doi: 10.1002/adma.201302406
11
SUN H , XU Z , GAO C . Aerogels: multifunctional, ultra-flyweight, synergistically assembled carbon aerogels[J]. Advanced Materials, 2013, 25 (18): 2632- 2632.
doi: 10.1002/adma.201370116
12
CHEN L , DU R , ZHU J , et al. Three-dimensional nitrogen-doped graphene nanoribbons aerogel as a highly efficient catalyst for the oxygen reduction reaction[J]. Small, 2015, 11 (12): 1423- 1429.
doi: 10.1002/smll.201402472
13
QIAN Y , ISMAIL I M , STEIN A . Ultralight, high-surface-area, multifunctional graphene-based aerogels from self-assembly of graphene oxide and resol[J]. Carbon, 2014, 68, 221- 231.
doi: 10.1016/j.carbon.2013.10.082
14
CAO Y , YU H , TAN J , et al. Nitrogen-, phosphorous and boron-doped carbon nanotubes as catalysts for the aerobic oxidation of cyclohexane[J]. Carbon, 2013, 57, 433- 442.
doi: 10.1016/j.carbon.2013.02.016
WANG Y , LI J , WU M Q , et al. Preparation and characterization of nitrogen-doped reduced graphene oxide/cobalt tetraoxide bifunctional catalyst[J]. Chinese Journal of Inorganic Chemistry, 2020, 36 (5): 36- 44.
16
ZHOU S , LIU N , WANG Z , et al. Nitrogen-doped graphene on transition metal substrates as efficient bifunctional catalysts for oxygen reduction and oxygen evolution reactions[J]. ACS Applied Materials & Interfaces, 2017, 9 (27): 22578- 22587.
17
HAAG D , KUNG H H . Metal free graphene based catalysts: a review[J]. Topics in Catalysis, 2014, 57 (6/9): 762- 773.
TANG X N , SHAO J J . Preparation and catalytic properties of nitrogen doped graphene/copper-based catalyst[J]. Chinese Journal of Inorganic Chemistry, 2019, 35 (10): 1767- 1772.
19
XIN G , YAO T , SUN H , et al. Highly thermally conductive and mechanically strong graphene fibers[J]. Science, 2015, 349, 1083- 1087.
doi: 10.1126/science.aaa6502
20
CHEN H , GUO F , LIU Y , et al. A defect-free principle for advanced graphene cathode of aluminum-ion battery[J]. Advanced Materials, 2017, 29 (12): 1605958.
doi: 10.1002/adma.201605958
