1 AVIC Shaanxi Hongyuan Aviation Forging Company Ltd., Xianyang 713801, Shaanxi, China 2 AECC Beijing Institute of Aeronautical Materials, Beijing 100095, China

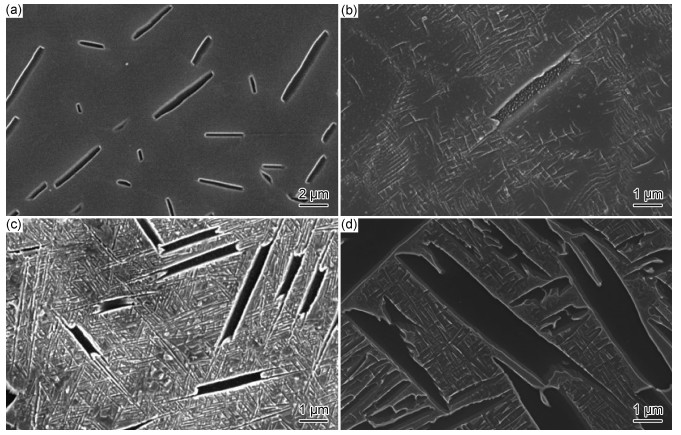

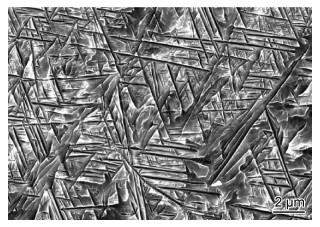

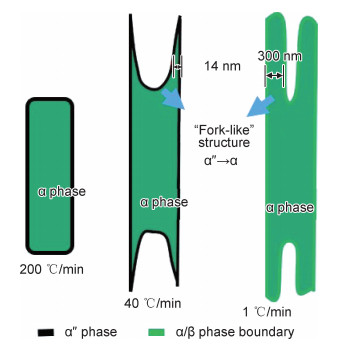

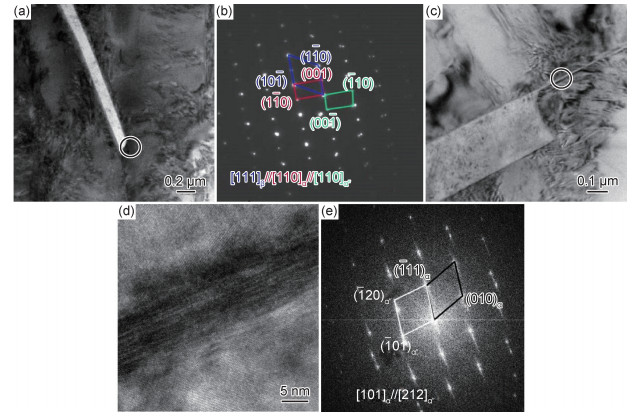

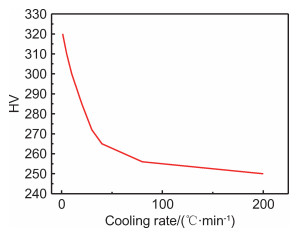

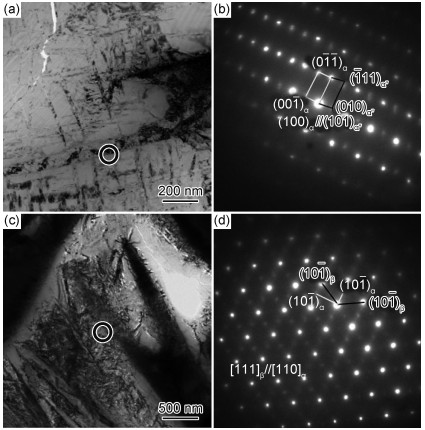

The effect of solid solution cooling rate on mechanical properties and the morphology of strip α phase of TB17 titanium alloy was studied by Gleeble thermal simulation compression testing machine, microhardness tester, scanning electron microscope (SEM) and transmission electron microscope (TEM). The results show that after solid solution of TB17 titanium alloy with basket-weave microstructure in α+β phase region, when the solid solution cooling rate is 200℃/min, the microhardness of the titanium alloy is 250HV. With the decrease of solid solution cooling rate, the microhardness increases gradually. When the solid solution cooling rate is reduced to 1℃/min (furnace cooling), the microhardness increases to 320HV. And TB17 titanium alloy occurs β→α phase transformation during cooling process, and secondary α phase precipitates on β matrix, and the strip-shaped α phase transforms into "fork-like" structure. As the solid solution cooling rate decreases, the "fork-like" structure gradually becomes thicker and larger. When the rate is 40℃/min, the width of the "fork-like" structure is about 14 nm. When the rate is 10℃/min, the width is about 100 nm. When the rate is 1℃/min (furnace cooling), the width is about 300 nm. When the solid solution cooling rate is greater than 10℃/min, the side and end faces of the strip-shaped α phase are wrapped with the rhombohedral martensite α″ phase, and the existence of the martensite phase promotes the transformation of α phase and the formation of the "fork-like" structure. When the solid solution cooling rate is gradually reduced to about 1℃/min which is equivalent to the furnace cooling rate, the "fork-like" structure becomes thicker, the orthorhombic martensite phase on the end and side faces of the strip-shaped α phase disappears, and α″→α phase transformation occurs.
ZHU Z S , SHANG G Q , WANG X N , et al. Microstructure controlling technology and mechanical properties relationship of titanium alloys for aviation applications[J]. Journal of Aeronautical Materials, 2020, 40 (3): 1- 10.
2
ZHAO Q Y , SUN Q Y , XIN S W , et al. High-strength titanium alloy for aerospace engineering applications: a review on melting-forging process[J]. Materials Science and Engineering: A, 2022, 845, 143260.
doi: 10.1016/j.msea.2022.143260
ZHU Z S , WANG X N , SHANG G Q , et al. Research and application of new type of high performance titanium alloy[J]. Journal of Aeronautical Materials, 2016, 36 (3): 7- 12.
ZHU Z S . Recent research and development of titanium alloys for aviation application in China[J]. Journal of Aeronautical Materials, 2014, 34 (4): 44- 50.
6
ZENG L Y , YANG G J , GE P , et al. Processing map of one kind of metastable β titanium alloy[J]. Rare Metal Materials and Engineering, 2010, 39 (9): 1505- 1508.
doi: 10.1016/S1875-5372(10)60119-1
7
LI C , CHEN J H , WU X , et al. A comparative study of the microstructure and mechanical properties of α+β titanium alloys[J]. Metal Science and Heat Treatment, 2014, 56 (7/8): 373- 380.
ZHAO Y Q , GE P . Current situation and development of new titanium alloys invented in China[J]. Journal of Aeronautical Materials, 2014, 34 (4): 51- 61.
GE P , ZHAO Y Q , ZHOU L . A new type metastable β titanium alloy Ti-B20 with high strength[J]. Rare Metal Materials and Engineering, 2005, 34 (5): 790- 794.
CHANG H , ZENG W D , LUO Y Y , et al. Phase transformation and microstructure evolution in near β Ti-B19 titanium alloy during aging treatment[J]. Rare Metal Materials and Engineering, 2006, 35 (10): 1589- 1592.
CHANG H , ZHOU L , ZHANG T J . Review of solid phase transformation in titanium alloys[J]. Rare Metal Materials and Engineering, 2007, 36 (9): 1505- 1510.
12
HUANG A J , LI G P , HAO Y L , et al. Acicular α2 precipitation induced by capillarity at α/β phase boundaries in Ti-14Al-2Zr-3Sn-3Mo-0.5Si titanium alloy[J]. Acta Materialia, 2003, 51 (16): 4939- 4952.
13
SEMIATIN S L , LEHNER T M , MILLER J D , et al. Alpha/beta heat treatment of a titanium alloy with a nonuniform microstructure[J]. Metallurgical and Materials Transactions A, 2007, 38 (4): 910- 921.
CHANG H. Solid phase transformation kinetics and microstructure evolutions of Ti-B19 alloy[D]. Xi'an: Northwestern Polytechnical University, 2006.
16
BRUNESEAUX F , AEBY-GAUTIER E , GEANDIER G , et al. In situ characterizations of phase transformations kinetics in the Ti17 titanium alloy by electrical resistivity and high temperature synchrotron X-ray diffraction[J]. Materials Science and Engineering: A, 2008, 476, 60- 68.
YANG Y , XU F , HUANG A J , et al. Evolution of microstructure of full lamellar titanium alloy BT18Y solutionized at α+β phase field[J]. Acta Metallurgica Sinica, 2005, 41 (7): 713- 720.
18
LU Y , TANG H B , FANG Y L , et al. Microstructure evolution of sub-critical annealed laser deposited Ti-6Al-4V alloy[J]. Materials & Design, 2012, 37, 56- 63.
LI J. Heat treatment on microstructure and mechanical properties of laser melting deposition TA15 titanium alloy[D]. Beijing: Beihang University, 2013.
20
ZHANG X D , BONNIWELL P , FRASER H L , et al. Effect of heat treatment and silicon addition on the microstructure development of Ti-6Al-2Cr-2Mo-2Sn-2Zr alloy[J]. Materials Science and Engineering: A, 2003, 343 (1/2): 210- 226.
21
DEHGHAN-MANSHADI A , DIPPENAAR R J . Development of α-phase morphologies during low temperature isothermal heat treatment of a Ti-5Al-5Mo-5V-3Cr alloy[J]. Materials Science and Engineering: A, 2011, 528 (3): 1833- 1839.
22
SEWARD G G E , CELOTTO S , PRIOR D J , et al. In situ SEM-EBSD observations of the hcp to bcc phase transformation in commercially pure titanium[J]. Acta Materialia, 2004, 52 (4): 821- 832.
23
WANG K , LI M Q . Morphology and crystallographic orientation of the secondary α phase in a compressed α/β titanium alloy[J]. Scripta Materialia, 2013, 68 (12): 964- 967.
24
FAN X G , YANG H , GAO P F , et al. Morphology transformation of primary strip α phase in hot working of two-phase tita-nium alloy[J]. Transactions of Nonferrous Metals Society of China, 2017, 27 (6): 1294- 1305.
25
SUN Z , GUO S , YANG H . Nucleation and growth mechanism of α-lamellae of Ti alloy TA15 cooling from an α+β phase field[J]. Acta Materialia, 2013, 61 (6): 2057- 2064.
2022, Vol. 50
), 王新南2, 商国强2, 王彦伟1, 李明兵2
