铁氮掺杂活性炭载体增强碳载铂基催化剂氧还原反应稳定性
李茂辉1,2, 杨智1, 潘廷仙1,2, 同鑫1,2, 胡长刚1,2, 田娟1,2,*()
1 贵州师范大学 化学与材料科学学院, 贵阳 550001
2 贵州省功能材料化学重点实验室, 贵阳 550001
Enhanced stability for oxygen reduction reaction of supported platinum-based catalyst with Fe-N doped activated carbon as carbon support
Maohui LI1,2, Zhi YANG1, Tingxian PAN1,2, Xin TONG1,2, Changgang HU1,2, Juan TIAN1,2,*()
1 School of Chemistry and Materials Science, Guizhou Normal University, Guiyang 550001, China
2 Key Laboratory of Functional Materials and Chemistry of Guizhou Province, Guiyang 550001, China
全文: PDF(7584 KB)   HTML ( 0 )
输出: BibTeX | EndNote (RIS)
摘要

修饰和改良载体是改善质子交换膜燃料电池阴极铂基催化剂性能的主要途径。以铁氮(FeN)掺杂活性炭(Black Pearl 2000, BP)为载体, 获得负载型铂基催化剂。使用电化学方法对催化剂的氧还原反应活性以及稳定性进行测试, 采用X射线衍射仪、比表面积和孔径分布测试、透射电子显微镜、X射线光电子能谱等分析手段对载体及催化剂结构进行表征。结果表明: Pt/FeN-BP催化剂与商业Pt/C催化剂的起始电位均为0.94 V, 具有相当的氧还原反应初始活性; 老化测试后, Pt/FeN-BP催化剂与商业Pt/C催化剂的起始电位损失分别约为10, 30 mV, 半波电位损失分别约为5, 60 mV, Pt/FeN-BP催化剂的稳定性明显优于商业Pt/C催化剂。这是因为, 铁氮掺杂碳载体具有适中的比表面积和孔径大小, Pt颗粒在载体上以小粒径的状态存在且老化测试后Pt颗粒无团聚现象, 以及载体与Pt颗粒之间可能存在一定的相互作用。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
李茂辉
杨智
潘廷仙
同鑫
胡长刚
田娟
关键词 氧还原反应铂基催化剂铁氮掺杂活性炭活性稳定性电化学
Abstract

Modification and doping of carbon support are the main ways to improve the performance of the platinum-based catalyst for proton exchange membrane fuel cell. FeN-BP.Iron and nitrogen(FeN) co-doped activated carbon (Black Pearl 2000, BP) as a support, was used as the support of platinum-based catalyst for oxygen reduction reaction (ORR). The activity and stability of the catalysts were tested by electrochemical techniques, and the structure of the catalysts were characterized by X-ray diffraction, specific surface area and pore size distribution test, transmission electron microscopy, X-ray photoelectron spectroscopy. The results show that Pt/FeN-BP and commercial Pt/C catalyst have comparable initial ORR activity with onset potential 0.94 V. After accelerated degradation test, the lost of onset potential for Pt/FeN-BP catalyst and commercial Pt/C catalyst are about 10 mV and 30 mV, as well as the lost of half-wave potential are about 5 mV and 60 mV.Pt/FeN-BP catalyst shows obvious improved stability.The high surface area and the moderate pore size distribution of FeN-BP, the small size and well dispersion of Pt nanoparticles on carbon after accelerated degradation test, as well as the interaction between carbon support and Pt nanoparticles may the key reasons for Pt/FeN-BP with improved stability.

Key wordsoxygen reduction reaction    platinum-based catalyst    FeN co-doped activated carbon    acti-vity    stability    electrochemistry
收稿日期: 2021-03-16      出版日期: 2022-04-18
中图分类号:  O646.541
基金资助:国家自然科学基金(21965006);国家自然科学基金(21506041);贵州省科学技术基金(黔科合JZ字[2015]2007号);贵州省普通本科高等学校科技拔尖人才支持项目(黔教合KY字[2016]063);中国科学院燃料电池及复合电能源重点实验室开放课题(KLFC201703)
通讯作者: 田娟     E-mail: juan_tian@126.com
作者简介: 田娟(1979—),女,副教授,博士,研究方向为催化材料,联系地址:贵州省贵阳市云岩区宝山北路180号贵州师范大学化学与材料科学学院(550001),E-mail: juan_tian@126.com
引用本文:
李茂辉, 杨智, 潘廷仙, 同鑫, 胡长刚, 田娟. 铁氮掺杂活性炭载体增强碳载铂基催化剂氧还原反应稳定性[J]. 材料工程, 2022, 50(4): 132-138.
Maohui LI, Zhi YANG, Tingxian PAN, Xin TONG, Changgang HU, Juan TIAN. Enhanced stability for oxygen reduction reaction of supported platinum-based catalyst with Fe-N doped activated carbon as carbon support. Journal of Materials Engineering, 2022, 50(4): 132-138.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000232      或      http://jme.biam.ac.cn/CN/Y2022/V50/I4/132
Fig.1  BP,FeN-BP碳载体的N2吸附-脱附等温线
Sample SBET/(m2·g-1) Pore volume/(cm3·g-1) Average pore size/nm
BP 1507.77 2.74 7.28
FeN-BP 979.75 2.09 8.56
Table 1  BP,FeN-BP碳载体的比表面积、孔体积和平均孔径
Fig.2  Pt/BP,Pt/FeN-BP和商业Pt/C催化剂的XRD谱图

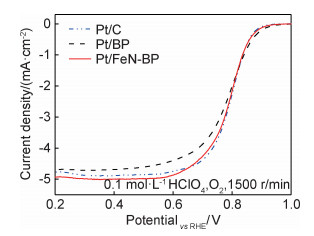

Fig.3  Pt/BP,Pt/FeN-BP和商业Pt/C催化剂的ORR极化曲线
Fig.4  Pt/FeN-BP和商业Pt/C催化剂老化测试前后的ORR极化曲线

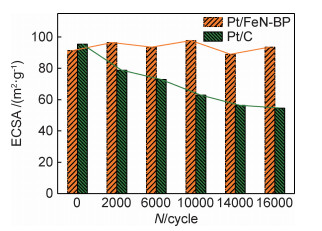

Fig.5  Pt/FeN-BP和商业Pt/C催化剂老化测试过程中的ECSA
Fig.6  Pt/FeN-BP,商业Pt/C催化剂的Pt4f谱和拟合谱图(a)以及Pt/FeN-BP催化剂的N1s谱和拟合谱图(b)
Fig.7  商业Pt/C和Pt/FeN-BP催化剂老化测试前(1)后(2)的TEM图
(a)商业Pt/C;(b)Pt/FeN-BP
Sample Particle size/nm
Before ADT After ADT
Pt/C 2.80 4.02
Pt/FeN-BP 1.99 3.23
Table 2  商业Pt/C和Pt/FeN-BP催化剂老化测试前后Pt粒子的平均粒径
