铝/钢异种金属的超声振动强化搅拌摩擦焊接工艺

doi:10.11868/j.issn.1001-4381.2021.000338

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(14181 KB)

HTML ( 0 )
输出: BibTeX | EndNote (RIS)

摘要

采用新型超声振动强化搅拌摩擦焊接工艺实现了6061-T6铝合金以及QP980高强钢的搭接焊, 对比分析了有无超声作用下, 接头的宏观形貌、微观组织和拉伸剪切性能, 同时研究了超声振动对焊接载荷的影响。结果表明: 焊接前对母材施加超声振动, 可以起到软化母材的作用, 促进了材料的塑性流动, 扩大了铝/钢界面区和焊核区, 使更多的钢颗粒随搅拌针旋转进入铝合金侧, 在界面区边缘形成钩状结构, 进而提高了接头的失效载荷; 超声改变了FSW接头断裂位置和断口形貌, 提高了接头力学性能, 在本实验工艺参数范围内, 接头最大的平均失效载荷为4.99 kN; 当焊接速度为90 mm/min, 下压量为0.1 mm时, 施加超声振动使接头的平均失效载荷提高了0.98 kN, 拉剪性能提升28.24%;施加超声振动后轴向力F_z、搅拌头扭矩M_t和主轴输出功率分别下降2.46%, 6.44%和4.59%。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	吴程浩
	刘涛
	高嵩
	石磊
	刘洪涛

关键词 ：铝/钢, 搭接, 搅拌摩擦焊, 超声振动, 力学性能, 焊接载荷

Abstract：

A novel ultrasonic vibration enhanced friction stir welding (UVeFSW) process was employed to join the 6061-T6 aluminum alloy and QP980 high-strength steel. The macro morphology, microstructure and tensile shear properties of the joint with or without ultrasonic energy were compared and analyzed. Meanwhile, the effects of ultrasonic energy on the welding load were studied. The results show that the ultrasonic vibration applied to the base metal before welding can soften the base metal, promote the plastic flow of the material, expand interface zone and nugget zone of the aluminum/steel, make more steel particles rotate into the aluminum alloy side with the stirring needle, forming a hook structure at the edge of the interface zone which can improve the failure load of the joint. The fracture position and fracture morphology of FSW joint are changed by ultrasonic, and the mechanical properties of FSW joint are improved. Under the welding parameters conducted in the experiment, the maximum average failure load of the joint is 4.99 kN. Under the conditions of a welding rate of 90 mm/min and a depth of 0.1 mm, the application of ultrasonic vibration makes the average failure load of the joint increase by 0.98 kN and the tensile shear performance increase by 28.24%. After applying ultrasonic vibration, the axial force F_z, the tool torque M_t and the spindle power decrease by 2.46%, 6.44% and 4.59% respectively.

Key words： aluminum/steel lap joint friction stir welding ultrasonic vibration mechanical property welding load

收稿日期: 2021-04-13 出版日期: 2022-01-19

中图分类号:

TG453

基金资助:山东省自然科学基金青年项目(ZR2020QE177);国家自然科学基金项目(51805285);齐鲁工业大学(山东省科学院)青年博士合作基金项目(2019BSHZ0012)

通讯作者: 高嵩 E-mail: gaosongedu@163.com

作者简介: 高嵩(1990—)，男，讲师，博士，研究方向为轻质高强材料连接技术，联系地址：山东省济南市长清区大学路3501号齐鲁工业大学机械与汽车工程学院(250353)，E-mail: gaosongedu@163.com

引用本文:

吴程浩, 刘涛, 高嵩, 石磊, 刘洪涛. 铝/钢异种金属的超声振动强化搅拌摩擦焊接工艺[J]. 材料工程, 2022, 50(1): 33-42.
Chenghao WU, Tao LIU, Song GAO, Lei SHI, Hongtao LIU. Ultrasonic vibration enhanced friction stir welding process of aluminum/steel dissimilar metals. Journal of Materials Engineering, 2022, 50(1): 33-42.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000338 或 http://jme.biam.ac.cn/CN/Y2022/V50/I1/33

Table 1 6061-T6铝合金的化学成分(质量分数/%)

Table 2 QP980高强钢的化学成分(质量分数/%)

Fig.1 焊接实验装置

Fig.2 铝/钢异种金属搅拌摩擦焊搭接示意图

Fig.3 焊接搅拌头形貌(a)及其尺寸(b)

Fig.4 不同焊接速度下的铝/钢FSW(1)和UVeFSW(2)焊缝横截面宏观形貌
(a)v=30 mm/min; (b)v=60 mm/min; (c)v=90 mm/min

Fig.5 不同下压量的铝/钢FSW(1)和UVeFSW(2)焊缝横截面宏观形貌(ω=600 r/min, v=30 mm/min)
(a)d=0.2 mm; (b)d=0.3 mm

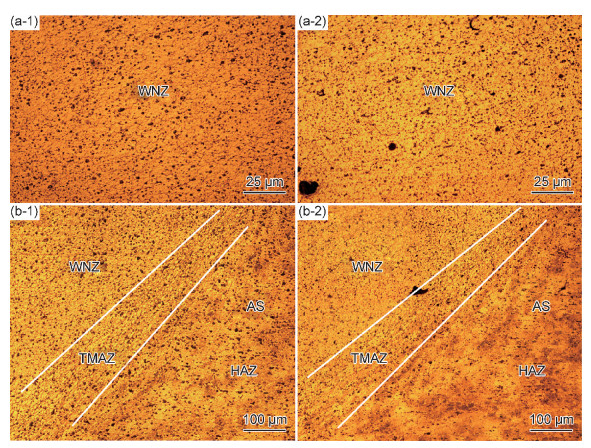

Fig.6 铝/钢FSW(1)和UVeFSW(2)接头微观组织
(a)焊核区；(b)焊核区、热力影响区和热影响区的分界面

Fig.7 不同工艺参数下的铝/钢FSW和UVeFSW力学性能曲线图
(a)焊接速度；(b)下压量

Fig.8 不同工艺参数下的铝/钢FSW和UVeFSW失效载荷对比
(a)焊接速度；(b)下压量

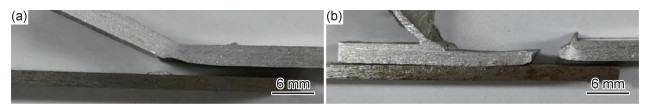

Fig.9 铝/钢接头拉伸剪切断裂位置
