碳氯共掺杂介孔g-C<sub>3</sub>N<sub>4</sub>的气泡模板法制备及光催化性能

doi:10.11868/j.issn.1001-4381.2021.000810

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(1065 KB)

HTML ( 2 )
输出: BibTeX | EndNote (RIS)

摘要

以三聚氰胺、葡萄糖和氯化铵为原料制备一种具有高比表面积的碳氯共掺杂介孔g-C₃N₄(C-Cl-CN)光催化剂，并考察其光催化降解罗丹明B(RhB)的性能。采用XRD，XPS，SEM，UV-Vis DRS和PL测试手段表征和分析催化剂的晶型结构、化学组成及微观形貌。结果表明：C-Cl-CN具有最高的比表面积(108.7 m²/g)，降解RhB的速率常数达到0.02290 min^-1，是纯g-C₃N₄的9.4倍，且具有良好的催化稳定性。葡萄糖和氯化铵在聚合过程中起到双气泡模板和元素掺杂剂的作用，一方面提升催化剂的比表面积，另一方面减小能带间隙，增强催化剂的光吸收性能。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	刘源
	赵华
	李会鹏
	蔡天凤
	王禹程

关键词 ：共掺杂, 石墨相氮化碳, 光催化, 降解

Abstract：

A carbon-chlorine co-doped mesoporous g-C₃N₄(C-Cl-CN) photocatalyst with a high specific surface area was prepared from melamine, glucose and ammonium chloride and its performance for photocatalytic degradation of rhodamine B(RhB) was investigated. The crystal structure, chemical composition and micro-morphology of the catalysts were characterized by X-ray diffraction pattern(XRD), X-ray photoelectron spectroscope(XPS), scanning electron microscope(SEM), UV-Vis diffuse reflection spectra(UV-Vis DRS) and photoluminescence(PL). The results show that C-Cl-CN has a high specific surface area(108.7 m²/g) and the rate constant of RhB degradation is 0.02290 min^-1, which is 9.4 times higher than that of pure g-C₃N₄, and has excellent catalytic stability. Glucose and ammonium chloride act as double-bubble templates and elemental dopants in the polymerization process, which enhance the specific surface area of the catalyst on the one hand and reduce the energy bandgap, on the other hand, significantly enhance the light absorption performance of the catalyst.

Key words： co-doping graphite carbon nitride photocatalysis degradation

收稿日期: 2021-08-24 出版日期: 2022-09-20

中图分类号:

O69

基金资助:辽宁省自然基金指导计划项目(2019-ZD-0057)

通讯作者: 李会鹏 E-mail: fslhp@sina.com

作者简介: 李会鹏(1973—)，男，教授，博士，研究方向为现代催化剂研制与开发及清洁燃料生产，联系地址：辽宁省抚顺市望花区丹东路西段一号辽宁石油化工大学炼化楼1009(113001)，E-mail: fslhp@sina.com

引用本文:

刘源, 赵华, 李会鹏, 蔡天凤, 王禹程. 碳氯共掺杂介孔g-C₃N₄的气泡模板法制备及光催化性能[J]. 材料工程, 2022, 50(9): 70-77.
Yuan LIU, Hua ZHAO, Huipeng LI, Tianfeng CAI, Yucheng WANG. Preparation of carbon-chlorine co-doped mesoporous g-C₃N₄ by bubble template method and photocatalytic performance. Journal of Materials Engineering, 2022, 50(9): 70-77.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000810 或 http://jme.biam.ac.cn/CN/Y2022/V50/I9/70

Fig.1 制备催化剂的XRD谱图

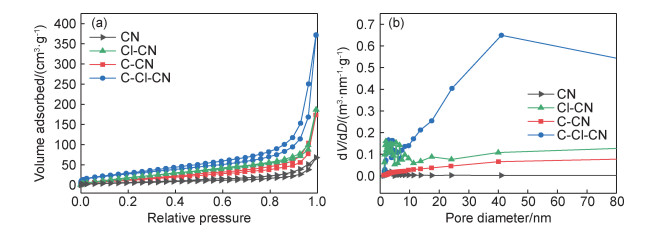

Fig.2 制备催化剂的N₂吸附-脱附等温线(a)和孔径分布图(b)

Table 1 制备催化剂的结构性质

Fig.3 CN(a)，C-CN(b)，Cl-CN(c)，C-Cl-CN(d)的SEM图和C-Cl-CN的EDS元素谱图(e)~(g)

Fig.4 CN(a)，C-CN(b)，Cl-CN(c)，C-Cl-CN(d)~(e)的TEM图

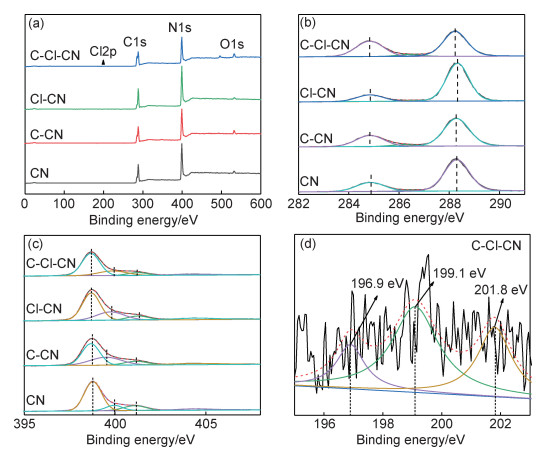

Fig.5 制备催化剂的XPS谱图(a)总谱图; (b)C1s;(c)N1s;(d)Cl2p

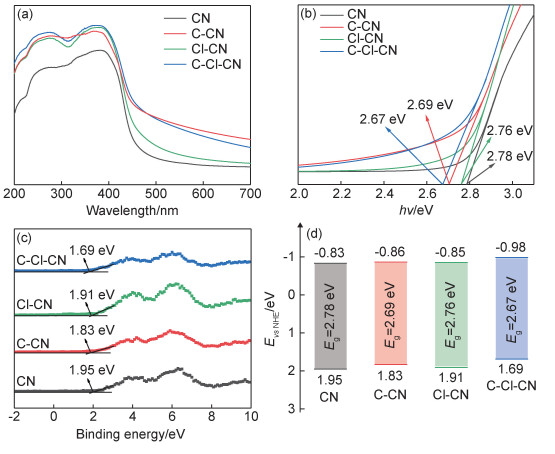

Fig.6 制备催化剂的UV-Vis漫反射吸收光谱(a)、能带图(b)、VB XPS(c)和能级位置示意图(d)

Fig.7 制备催化剂的PL光谱图

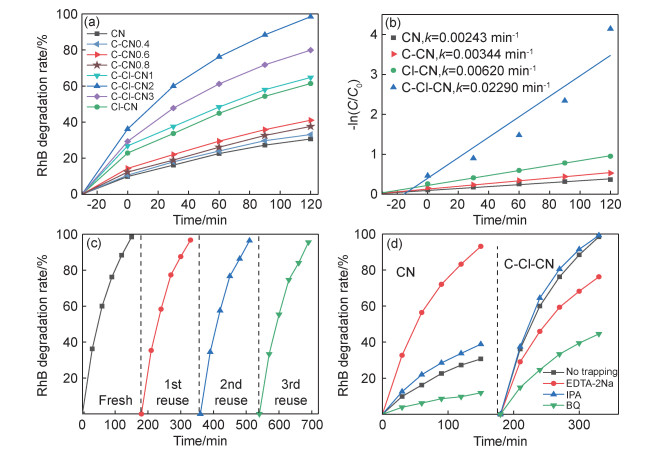

Fig.8 制备催化剂的光催化降解RhB性能(a)，-ln(C/C₀)与反应时间t的关系(b)，C-Cl-CN的稳定性(c)及捕获剂对降解性能的影响(d)

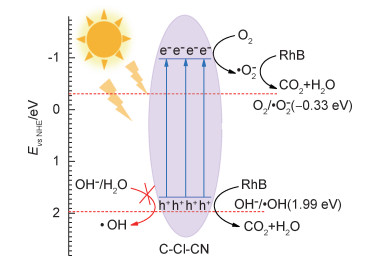

Fig.9 C-Cl-CN光催化降解RhB反应机理

1	WANG X C , MAEDA K , THOMAS A , et al. A metal-free polymeric photocatalyst for hydrogen production from water under visible light[J]. Nature Materials, 2009, 8 (1): 76- 80. doi: 10.1038/nmat2317
2	IQBAL W , YANG B , ZHAO X , et al. Facile one-pot synthesis of mesoporous g-C₃N₄ nanosheets with simultaneous iodine doping and N-vacancies for efficient visible-light-driven H₂ evolution performance[J]. Catalysis Science & Technology, 2020, 10 (2): 549- 559.
3	谢桂香, 龚朋, 吕芬芬, 等. 原位构建P-N结复合材料及其可见光光催化性能[J]. 材料工程, 2021, 49 (3): 107- 114.
3	XIE G X , GONG P , LYU F F , et al. In-situ growth P-N heterojunction composite photocatalyst enhanced visible-light-driven photocatalytic performance[J]. Journal of Materials Engineering, 2021, 49 (3): 107- 114.
4	DONG Y G , WANG D H , ZHANG H , et al. Morphological control of tubular g-C₃N₄ and their visible-light photocatalytic pro-perties[J]. Materials Letters, 2017, 196, 100- 103. doi: 10.1016/j.matlet.2017.03.005
5	ZHOU Y , LV W H , ZHU B L , et al. Template-free one-step synthesis of g-C₃N₄ nanosheets with simultaneous porous network and S-doping for remarkable visible-light-driven hydrogen evolution[J]. ACS Sustain Chem Eng, 2019, 7 (6): 5801- 5807. doi: 10.1021/acssuschemeng.8b05374
6	ZHOU M J , HOU Z H , CHEN X B . Graphitic-C₃N₄ nanosheets: synergistic effects of hydrogenation and n/n junctions for enhanced photocatalytic activities[J]. Dalton Transactions, 2017, 46 (32): 10641- 10649. doi: 10.1039/C7DT00761B
7	FAN C K , MIAO J L , XU G Q , et al. Graphitic carbon nitride nanosheets obtained by liquid stripping as efficient photocatalysts under visible light[J]. RSC Advances, 2017, 7, 37185- 37193. doi: 10.1039/C7RA05732F
8	PARK S S , CHU S W , XUE C F , et al. Facile synthesis of mesoporous carbon nitrides using the incipient wetness method and the application as hydrogen adsorbent[J]. Journal of Materials Che-mistry, 2011, 21 (29): 10801- 10807. doi: 10.1039/c1jm10849b
9	KADAM A N , KIM H , LEE S W . Low-temperature in situ fabrication of porous S-doped g-C₃N₄nanosheets using gaseous-bubble template for enhanced visible-light photocatalysis[J]. Ceramics International, 2020, 46 (18): 28481- 28489. doi: 10.1016/j.ceramint.2020.08.005
10	周锋, 任向红, 强洪夫, 等. GO增强g-C₃N₄气凝胶的可见光响应及其光催化降解偏二甲肼废水[J]. 材料工程, 2021, 49 (11): 171- 178. doi: 10.11868/j.issn.1001-4381.2020.001089
10	ZHOU F , REN X H , QIANG H F , et al. GO enhanced visible-light response of g-C₃N₄ aerogel and degradation of unsymmetrical dimethylhydrazine in wastewater[J]. Journal of Materials Engineering, 2021, 49 (11): 171- 178. doi: 10.11868/j.issn.1001-4381.2020.001089
11	GHASHGHAEE M , AZIZI Z , GHAMBARIAN M . Conductivity tuning of charged triazine and heptazine graphitic carbon nitride (g-C₃N₄) quantum dots via nonmetal (B, O, S, P) doping: DFT calculations[J]. Journal of Physics and Chemistry of So-lids, 2020, 141, 109422. doi: 10.1016/j.jpcs.2020.109422
12	YAN S C , LI Z S , ZOU Z G . Photodegradation of rhodamine B and methyl orange over boron-doped g-C₃N₄ under visible light irradiation[J]. Langmuir, 2010, 26 (6): 3894- 3901. doi: 10.1021/la904023j
13	LI Z , CHEN Q Y , LIN Q C , et al. Three-dimensional P-doped porous g-C₃N₄ nanosheets as an efficient metal-free photocatalyst for visible-light photocatalytic degradation of rhodamine B model pollutant[J]. Journal of the Taiwan Institute of Chemical Engineers, 2020, 114, 249- 262. doi: 10.1016/j.jtice.2020.09.019
14	CHU Y C , LIN T J , LIN Y R , et al. Influence of P, S, O-doping on g-C₃N₄ for hydrogel formation and photocatalysis: an experimental and theoretical study[J]. Carbon, 2020, 169, 338- 348. doi: 10.1016/j.carbon.2020.07.053
15	MOHAMED M A , ZAIN M F , JEFFERY M L , et al. Constructing bio-templated 3D porous microtubular C-doped g-C₃N₄ with tunable band structure and enhanced charge carrier separation[J]. Applied Catalysis: B, 2018, 236, 265- 279. doi: 10.1016/j.apcatb.2018.05.037
16	YI F T , GAN H H , JIN H F , et al. Sulfur-and chlorine-co-doped g-C₃N₄ nanosheets with enhanced active species generation for boosting visible-light photodegradation activity[J]. Separation and Purification Technology, 2020, 233, 115997. doi: 10.1016/j.seppur.2019.115997
17	刘源, 赵华, 李会鹏, 等. 硫氯共掺杂g-C₃N₄纳米片光催化降解染料[J]. 中国环境科学, 2021, 41 (10): 4662- 4669. doi: 10.3969/j.issn.1000-6923.2021.10.022
17	LIU Y , ZHAO H , LI H P , et al. Photocatalytic degradation of dyes by sulfur-and chlorine-co-doped g-C₃N₄ nanosheets[J]. China Environmental Science, 2021, 41 (10): 4662- 4669. doi: 10.3969/j.issn.1000-6923.2021.10.022
18	SUN N , LIANG Y , MA X J , et al. Reduced oxygenated g-C₃N₄ with abundant nitrogen vacancies for visible-light photocatalytic applications[J]. Chemistry, 2017, 23 (61): 15466- 15473. doi: 10.1002/chem.201703168
19	MA H Q , SHI Z Y , LI Q , et al. Preparation of graphitic carbon nitride with large specific surface area and outstanding N₂ photofixation ability via a dissolve-regrowth process[J]. Journal of Physics and Chemistry of Solids, 2016, 99, 51- 58. doi: 10.1016/j.jpcs.2016.08.008
20	LIU H H , CHEN D L , WANG Z Q , et al. Microwave-assisted molten-salt rapid synthesis of isotype triazine-/heptazine based g-C₃N₄ heterojunctions with highly enhanced photocatalytic hydrogen evolution performance[J]. Applied Catalysis: B, 2017, 203, 300- 313. doi: 10.1016/j.apcatb.2016.10.014
21	HUANG H W , XIAO K , TIAN N , et al. Template-free precursor-surface-etching route to porous, thin g-C₃N₄ nanosheets for enhancing photocatalytic reduction and oxidation activity[J]. Journal of Materials Chemistry: A, 2017, 5 (33): 17452- 17463. doi: 10.1039/C7TA04639A
22	PANNERI S , GANGULY P , MOHAN M , et al. Photoregenerable, bifunctional granules of carbon-doped g-C₃N₄ as adsorptive photocatalyst for the efficient removal of tetracycline antibiotic[J]. ACS Sustainable Chemistry & Engineering, 2017, 5 (2): 1610- 1618.
23	LIANG L , CONG Y F , WANG F X , et al. Hydrothermal pre-treatment induced cyanamide to prepare porous g-C₃N₄ with boosted photocatalytic performance[J]. Diamond and Related Materials, 2019, 98, 107499. doi: 10.1016/j.diamond.2019.107499
24	WANG T , LIU J , ZHANG Y S , et al. Use of a non-thermal plasma technique to increase the number of chlorine active sites on biochar for improved mercury removal[J]. Chemical Engineering Journal, 2018, 331, 536- 544. doi: 10.1016/j.cej.2017.09.017
25	FAN L W , ZHANG H , ZHANG P P , et al. One-step synthesis of chlorinated graphene by plasma enhanced chemical vapor de-position[J]. Applied Surface Science, 2015, 347, 632- 635. doi: 10.1016/j.apsusc.2015.04.147
