Pr<sub>6</sub>O<sub>11</sub>对合成金刚石单晶各向异性的刻蚀

doi:10.11868/j.issn.1001-4381.2021.001231

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(14575 KB)

HTML ( 3 )
输出: BibTeX | EndNote (RIS)

摘要

为了探究稀土氧化物对合成金刚石单晶的各向异性刻蚀，在氮气保护下，在750~950℃内用Pr₆O₁₁对合成金刚石单晶进行刻蚀。采用扫描电子显微分析、热重分析、X射线衍射和拉曼光谱等技术对刻蚀后金刚石单晶不同晶面的表面形貌、物相组成和刻蚀机理进行表征与分析。采用最大刻蚀深度、单颗粒抗压强度和冲击韧性来表征刻蚀前后金刚石性能的变化。结果表明：Pr₆O₁₁对金刚石{100}面和{111}面的刻蚀程度和形貌均不同；当温度为750℃时，Pr₆O₁₁对金刚石单晶已有一定程度的刻蚀，随刻蚀温度的增加，刻蚀加剧，且金刚石{111}面的刻蚀程度比{100}面严重；{111}面刻蚀坑形貌从三角形变为层状结构三角形，{100}面由轻微的四边形变为类蜂窝状刻蚀坑；{111}面最大刻蚀深度从1.12 μm增加到12.54 μm，而{100}面只从0.30 μm增加到2.11 μm；金刚石单颗粒的抗压强度由未刻蚀金刚石的576.25 N降低到最小530.06 N，冲击韧性由92.94 J/cm²减小到88.53 J/cm²；Pr₆O₁₁对金刚石单晶的刻蚀机理在885℃前为催化石墨化，885℃后为催化石墨化和氧化。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	朱振东
	肖长江
	马金明
	栗正新

关键词 ：金刚石单晶, 氧化镨, 各向异性刻蚀, 刻蚀机理, 性能

Abstract：

The work aims to explore the anisotropic etching of synthetic diamond single crystal by rare earth oxide. Under the protection of nitrogen, synthetic diamond single crystals were etched by Pr₆O₁₁ powder at 750-950℃. The surface morphology, phase composition and etching mechanism of different crystal surfaces of diamond single crystal after etching were characterized and analyzed by means of scanning electron microscopy, thermogravimetric analysis, X-ray diffraction and Raman spectroscopy, and the changes of diamond properties before and after etching were characterized by surface roughness, single particle compressive strength and impact toughness. The results show that the etching degree and morphology of {100} faces and {111} faces of diamond by Pr₆O₁₁ are different. When the temperature is 750℃, Pr₆O₁₁ etches slightly diamond crystals. The etching intensifies with the increase of etching temperature, moreover the etching degree of diamond {111} faces is more serious than that of {100} faces. The morphologies of the etching pits of diamond {111} faces change from triangular etching pits to layered triangular ones, and {100} faces change from slight quadrilateral to honeycomb-like etching pits. The maximum etching depth of {100} face increases from 1.12 μm to 12.54 μm, while the maximum etching depth of {111} face increases from 0.3 μm to 2.11 mm. The compressive strength of single diamond particle decreases from 576.25 N of unetched diamond to the smallest value of 530.06 N, and the impact toughness decreases from 92.94 J/cm²to 88.53 J/cm². The etching mechanism of diamond single crystal by Pr₆O₁₁ is catalytic graphitization before 885℃, and the catalytic graphitization and oxidation after 885℃.

Key words： diamond single crystal Pr₆O₁₁ anisotropic etching etching mechanism property

收稿日期: 2021-12-28 出版日期: 2022-11-17

中图分类号:

TG732

基金资助:2022年度省教育厅重点科研项目(22B4300152)

通讯作者: 肖长江 E-mail: cjxiao@haut.edu.cn

作者简介: 肖长江(1969—), 男, 副教授, 博士, 主要研究方向: 超硬材料及其制品, 联系地址: 河南省郑州市高新区莲花街100号河南工业大学材料科学与工程学院(450001), E-mail: cjxiao@haut.edu.cn

引用本文:

朱振东, 肖长江, 马金明, 栗正新. Pr₆O₁₁对合成金刚石单晶各向异性的刻蚀[J]. 材料工程, 2022, 50(11): 173-181.
Zhendong ZHU, Changjiang XIAO, Jinming MA, Zhengxin LI. Anisotropy etching of synthetic diamond single crystals by Pr₆O₁₁ powder. Journal of Materials Engineering, 2022, 50(11): 173-181.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.001231 或 http://jme.biam.ac.cn/CN/Y2022/V50/I11/173

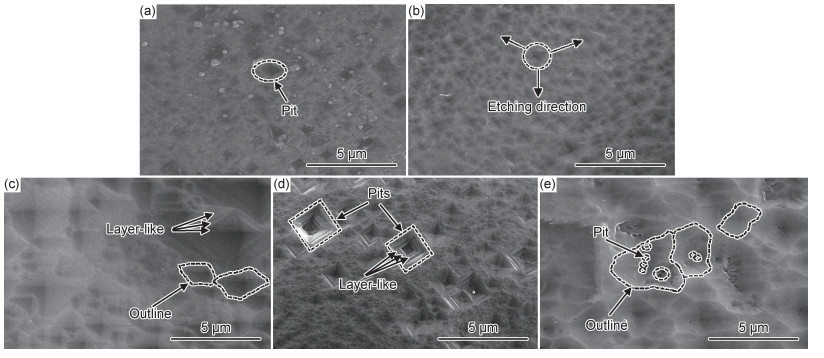

Fig.1 不同温度Pr₆O₁₁刻蚀金刚石{111}面后的表面形貌
(a)750 ℃；(b)800 ℃；(c)850 ℃；(d)900 ℃；(e)950 ℃

Fig.2 不同温度Pr₆O₁₁刻蚀金刚石{100}面后的表面形貌
(a)750 ℃；(b)800 ℃；(c)850 ℃；(d)900 ℃；(e)950 ℃

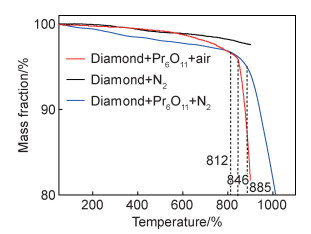

Fig.3 不同处理条件下金刚石刻蚀过程中的TG曲线

Fig.4 不同温度下Pr₆O₁₁和金刚石混合物的XRD图

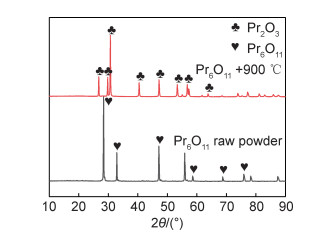

Fig.5 原始Pr₆O₁₁粉末900 ℃处理前后的XRD图

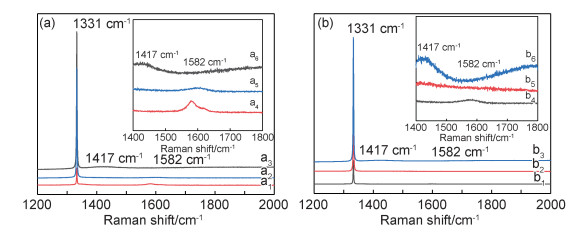

Fig.6 Pr₆O₁₁刻蚀后金刚石的拉曼光谱图
(a){111}面；(b){100}面

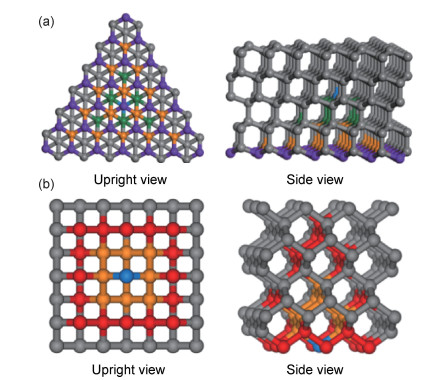

Fig.7 金刚石单晶的原子排布
(a){111}面；(b){100}面

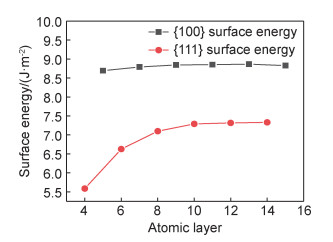

Fig.8 金刚石表面原子层数与表面能的关系

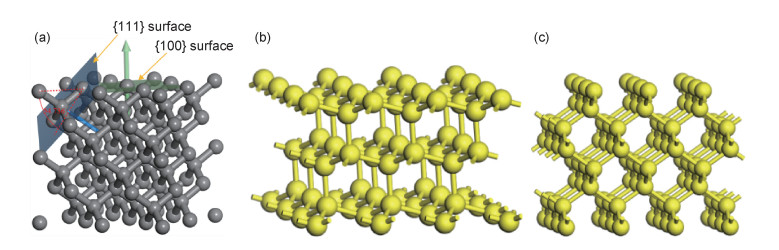

Fig.9 金刚石的原子排布图
(a)金刚石原子的三维取向图；(b){111}面；(c){100}面

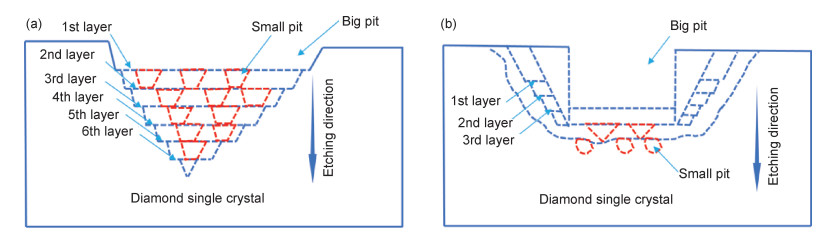

Fig.10 Pr₆O₁₁刻蚀后金刚石表面刻蚀坑转变示意图
(a){111}面；(b){100}面

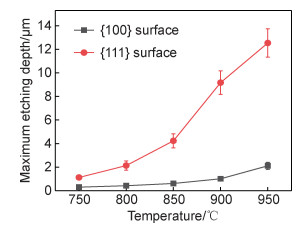

Fig.11 Pr₆O₁₁刻蚀后金刚石{111}面和{100}面的最大刻蚀深度

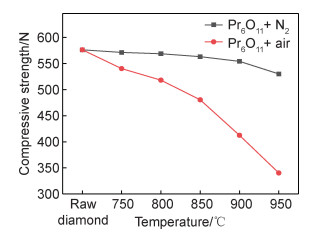

Fig.12 Pr₆O₁₁刻蚀后的金刚石单颗粒抗压强度

Table 1 不同温度下Pr₆O₁₁刻蚀后金刚石的冲击韧性

1	PATELS R . Structure of etch-pits on diamond surfaces[J]. Physics, 1961, 27, 1097- 1100.
2	PATELS R . Mechanism of etching and development of etch figures on octahedral faces of diamond[J]. Physica, 1962, 28, 44- 51. doi: 10.1016/0031-8914(62)90090-3
3	PATELS R , RAMANATHA N . Triangular pyramids on the octahedral faces of synthetic diamonds[J]. Physica, 1963, 29, 889- 895. doi: 10.1016/S0031-8914(63)80259-1
4	SANDHU G S , CHUA W K . Reactive ion etching of diamond[J]. Applied Physics Letters, 1989, 55 (5): 4371- 4374.
5	CHU C , PAN C , MARGRAVE J , et al. F₂, H₂O, and O₂ etching rates of diamond and the effects of F₂, HF and H₂O on the molecular O₂ etching of (110) diamond[J]. Diamond and Related Materials, 1995, 4 (12): 1317- 1324. doi: 10.1016/0925-9635(95)00311-8
6	MATUMOTO S , SETAKA N . Thermal desorption spectra of hydrogenated and water treated diamond powders[J]. Carbon, 1979, 17, 485- 489. doi: 10.1016/0008-6223(79)90038-1
7	ANDREW F . Halogenation of diamond (100) and (111) surfaces by atomic beams[J]. Journal of Applied Physics, 1994, 75 (6): 3112- 3120. doi: 10.1063/1.356163
8	JOHNSON C E , HASTING M A S , WEIMER W A . Thermogravimetric analysis of the oxidation of CVD diamond films[J]. Journal of Materials Research, 1990, 5 (11): 2320- 2325. doi: 10.1557/JMR.1990.2320
9	THEIJE F K D , ROY O , LAAG N J V D , et al. Oxidative etching of diamond[J]. Diamond and Related Materials, 2000, 9 (3/6): 929- 934.
10	THEIJE F K D , LAAG N J V D , PLOMP M , et al. A surface topographic investigation of {001} diamond surfaces etched in oxygen[J]. Philosophical Magazine A, 2000, 80 (3): 725- 745. doi: 10.1080/01418610008212078
11	THEIJE F K D , VEENENDAAL E V , ENCKEVORT W J P V , et al. Oxidative etching of cleaved synthetic diamond {111} surfaces[J]. Surface Science, 2001, 492 (1/2): 91- 105.
12	SMIRNOV W , HEES J J , BRINK D , et al. Anisotropic etching of diamond by molten Ni particles[J]. Applied Physics Letters, 2010, 97 (7): 31171- 31174.
13	MEHEDI H , ARNAULT J , EON D , et al. Etching mechanism of diamond by Ni nanoparticles for fabrication of nanopores[J]. Carbon, 2013, 59, 448- 456. doi: 10.1016/j.carbon.2013.03.038
14	WANG JUNSHA , WANLONG , CHEN JING , et al. Surface patterning of synthetic diamond crystallites using nickel powder[J]. Diamond and Related Materials, 2016, 66, 206- 212. doi: 10.1016/j.diamond.2016.04.010
15	NAGAI M , NAKANISHI K , TAKAHASHI H . Anisotropic diamond etching through thermochemical reaction between Ni and diamond in high temperature water vapour[J]. Scientific Reports, 2018, 8, 6687. doi: 10.1038/s41598-018-25193-2
16	KONISHI S , OHASHI T , SUGIMOTO W , et al. Effect of the crystal plane on the catalytic etching behavior of diamond crystallites by cobalt nanoparticles[J]. Chemistry Letters, 2006, 35 (11): 1216- 1217. doi: 10.1246/cl.2006.1216
17	WANG J S , WAN L , CHEN J , et al. Micropatterning of diamond crystallites via cobalt catalyzed thermochemical etching[J]. Journal of Materials Science, 2017, 52, 709- 720. doi: 10.1007/s10853-016-0365-y
18	MEHEDI H A , HEBERT C , RUFFINATTO S , et al. Formation of oriented nanostructures in diamond using metallic nanoparticles[J]. Nano Technology, 2012, 23, 455302- 453308.
19	OHASHI T , SUGIMOTO W , TAKASU Y . Catalytic etching of synthetic diamond crystallites by iron[J]. Applied Surface Science, 2012, 258, 8128- 8133. doi: 10.1016/j.apsusc.2012.05.007
20	WANG J S , WAN L , CHEN J , et al. Anisotropy of synthetic diamond in catalytic etching using iron powder[J]. Applied Surface Science, 2015, 346, 388- 393. doi: 10.1016/j.apsusc.2015.04.022
21	UEMURA M . An analysis of the catalysis of Fe, Ni or Co on the wear of diamonds[J]. Tribology International, 2004, 37 (11/12): 887- 892.
22	邵增明, 苏彦宾, 张存升. 无氢气氛下铁对金刚石的刻蚀[J]. 金刚石与磨料磨具工程, 2019, 39 (5): 13- 15. doi: 10.13394/j.cnki.jgszz.2019.5.0003
22	SHAO Z M , SU Y B , ZHANG C S . Iron etching of diamond in hydrogen-free atmosphere[J]. Diamond & Abrasives Engineering, 2019, 39 (5): 13- 15. doi: 10.13394/j.cnki.jgszz.2019.5.0003
23	PATEL A R , RAMANATHAN S . Etch pits on diamond surfaces[J]. Philosophical Magazine, 1962, 7, 1305- 1314. doi: 10.1080/14786436208213164
24	周肖璇. 铁钻盐对人造金刚石单晶腐蚀的研究[D]. 长沙: 湖南大学, 2016.
24	ZHOU X X. Research on etching of synthetic diamond by iron cobalt salts[D]. Changsha: Hunan University, 2016.
25	LI L Y , CHEN X , ZHANG W , et al. Characterization and formation mechanism of pits on diamond {100} face etched by molten potassium nitrite[J]. International Journal of Refractory Metals & Hard Materials, 2018, 71, 129- 134.
26	ACHARD J , SILVA F , BRINZA O . Identification of etch-pit crystallographic faces induced on diamond surface by H₂/O₂ etching plasma treatment[J]. Physica Status Solidi A, 2009, 206 (9): 1949- 1954. doi: 10.1002/pssa.200982210
27	LIU D , GOU L , XU J J . Investigations on etching resistance of undoped and boron doped polycrystalline diamond films by oxygen plasma etching[J]. Vacuum, 2016, 128, 80- 84. doi: 10.1016/j.vacuum.2016.03.012
28	KANG X , ZHANGZ H Q , LI G . Improvement in electrical conductivity of boron-doped diamond films after hydrogen plasma and vacuum heat treatment[J]. Applied Surface Science, 2020, 526, 146738- 146742. doi: 10.1016/j.apsusc.2020.146738
29	NOBUTERU T , MOKUNO Y , SHIKATA S . Characterizations of etch pits formed on single crystal diamond surface using oxygen/hydrogen plasma surface treatment[J]. Diamond & Related Materials, 2016, 63, 43- 46.
30	HIROKI K , TOSHIHARU M , SATOSHI Y , et al. Mechanism of anisotropic etching on diamond (111) surfaces by a hydrogen plasma treatment[J]. Applied Surface Science, 2017, 422, 452- 455. doi: 10.1016/j.apsusc.2017.06.005
31	肖长江, 窦志强, 朱振东. 氧化铁刻蚀金刚石表面形貌的表征及形成机理[J]. 材料导报, 2020, 34 (7): 14045- 14050.
31	XIAO C J , DOU Z Q , ZHU Z D . Characterization and formation mechanism of surface morphology on diamond etched by Fe₂O₃ powder[J]. Materials Reports, 2020, 34 (7): 14045- 14050.
32	肖长江, 陈怡光, 栗正新. MnO₂对金刚石单晶的刻蚀研究[J]. 金刚石与磨料磨具工程, 2019, 39 (5): 1- 6.
32	XIAO C J , CHEN Y G , LI Z X . Study on etching of diamond single crystals by MnO₂[J]. Diamond & Abrasives Engineering, 2019, 39 (5): 1- 6.
33	王俊沙. 铁族金属及其盐对人造金刚石单晶腐蚀研究[D]. 长沙: 湖南大学, 2016.
33	WANG J S. Study on etching of synthetic diamond crystallites by iron group metals and iron-group metal salts[D]. Changsha: Hunan University, 2016.
34	王秀芳, 李统业. Sb₂O₃掺杂对Pr₆O₁₁压敏电阻微结构和电学性能的影响[J]. 人工晶体学报, 2013, 42 (6): 1041- 1045. doi: 10.3969/j.issn.1000-985X.2013.06.009
34	WANG X F , LI T Y . Effect of Sb₂O₃ doping on the microstructure and electrical properties of Pr₆O₁₁ varistors[J]. Journal of Synthetic Crystals, 2013, 42 (6): 1041- 1045. doi: 10.3969/j.issn.1000-985X.2013.06.009
35	WANG X F , LI T Y . Effect of Sb₂O₃doping on the microstructure and electrical properties of Pr₆O₁₁ varistors[J]. Journal of Synthetic Crystals, 2013, 42 (6): 1041- 1045. doi: 10.3969/j.issn.1000-985X.2013.06.009
36	王莹. Pr₆O₁₁/SnO₂复合材料的制备及对异丙醇气敏特性的研究[J]. 传感技术学报, 2020, 33 (3): 311- 316.
36	WANG Y . Preparation of Pr₆O₁₁/SnO₂ composites and their gas sensing properties for isopropanol[J]. Chinese Journal of Sensors and Actuators, 2020, 33 (3): 311- 316.
37	陈静, 万隆, 王俊沙, 等. 温度对铁粉催化腐蚀人造金刚石单晶的影响[J]. 人工晶体学报, 2015, 44 (6): 1448- 1453. doi: 10.3969/j.issn.1000-985X.2015.06.005
37	CHEN J , WAN L , WANG J S , et al. Effect of temperature on the catalytic etching behavior of synthetic diamond single crystals by iron powder[J]. Journal of Synthetic Crystals, 2015, 44 (6): 1448- 1453. doi: 10.3969/j.issn.1000-985X.2015.06.005
38	YANA F , DANTE C . Diamond oxidation at atmospheric pressure: development of surface features and the effect of oxygen fugacity[J]. European Journal of Mineralogy, 2009, 21 (3): 623- 635. doi: 10.1127/0935-1221/2009/0021-1929
