热解碳含量对碳/碳-聚酰亚胺复合材料性能的影响
曾宏伟, 李红(), 姚彧敏, 杨敏, 陶银萍, 任慕苏, 孙晋良
上海大学 材料科学与工程学院 复合材料研究中心, 上海 200444
Effect of pyrolytic carbon content on properties of carbon/carbon-polyimide composites
Hongwei ZENG, Hong LI(), Yumin YAO, Min YANG, Yinping TAO, Musu REN, Jinliang SUN
Research Center of Composite Materials, School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China
全文: PDF(12303 KB)   HTML ( 3 )
输出: BibTeX | EndNote (RIS)
摘要

通过化学气相渗透和浸渍-固化成型工艺制备碳/碳-聚酰亚胺复合材料。首先采用化学气相渗透法对碳毡进行热解碳的沉积,制得热解碳含量分别在7.33%(质量分数,下同),14.55%,22.00%的多孔碳/碳坯体,再经过特定的浸渍-固化工艺,依次制得碳/碳-聚酰亚胺复合材料P1,P2,P3以及未添加热解碳的对照组P0。通过SEM、线膨胀系数测试和力学性能测试,探究不同热解碳含量对碳/碳-聚酰亚胺复合材料微观形貌结构、平均线膨胀系数以及力学性能的影响。结果表明:在20~300℃的温度区间,P0,P1,P2,P3的XY向平均线膨胀系数在(0.67~0.79)×10-6-1之间,四组XY向平均线膨胀系数基本相当。P1,P2,P3的Z向平均线膨胀系数较P0依次降低41.6%,41.8%,24.1%,热解碳显著降低了材料的Z向平均线膨胀系数。P0,P1,P2,P3的XY向压缩强度依次是243.91,244.73,216.65,210.79 MPa,Z向压缩强度依次是269.22,258.80,246.68,219.20 MPa,P1压缩强度与P0相当。P0,P1,P2,P3的Z向弯曲强度依次是92.77,77.11,80.71,86.06 MPa。不同的热解碳含量对材料的力学性能影响不同,较低的热解碳含量基本保持了材料的压缩强度,而较高的热解碳含量可基本保持材料的弯曲强度。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
曾宏伟
李红
姚彧敏
杨敏
陶银萍
任慕苏
孙晋良
关键词 碳/碳-聚酰亚胺复合材料热解碳微观形貌平均线膨胀系数力学性能
Abstract

Carbon/carbon-polyimide composites were prepared by chemical vapor infiltration and vacuum-pressure impregnation curing process. Firstly, the carbon felt was deposited with pyrolytic carbon by chemical vapor infiltration method to prepare porous carbon/carbon materials with pyrolytic carbon contents of 7.33%(mass fraction, the same below), 14.55% and 22.00%, respectively. Then, through a specific impregnation curing process, the carbon/carbon-polyimide composites P1, P2 and P3 and the control group P0 without pyrolytic carbon were obtained in turn. Through SEM, linear expansion coefficient test and mechanical properties test, the effects of different pyrolytic carbon contents on the microstructure, average linear expansion coefficient and mechanical properties of carbon/carbon-polyimide composites were investigated. The results show that in the temperature range of 20-300℃, the XY-direction average linear expansion coefficients of P0, P1, P2 and P3 are between (0.67-0.79)×10-6-1, and the XY-direction average linear expansion coefficients of four groups are basically the same. The Z-direction average linear expansion coefficients of P1, P2 and P3 decrease by 41.6%, 41.8% and 24.1%, respectively compared with P0. Pyrolytic carbon significantly reduces the Z-direction average linear expansion coefficient of materials. The XY-direction compressive strengths of P0, P1, P2 and P3 are 243.91, 244.73, 216.65 MPa and 210.79 MPa, respectively, and the Z-direction compressive strengths are 269.22, 258.80, 246.68 MPa and 219.20 MPa, respectively. The compressive strength of P1 is equivalent to that of P0. The Z-direction bending strengths of P0, P1, P2 and P3 are 92.77, 77.11, 80.71 MPa and 86.06 MPa, respectively. Different pyrolytic carbon contents have different effects on the mechanical properties of materials. The lower pyrolytic carbon content can basically maintain compressive strength of materials, while the higher pyrolytic carbon content can basically maintain bending strength of materials.

Key wordscarbon/carbon-polyimide composite    pyrolytic carbon    microstructure    average linear expan-sion coefficient    mechanical property
收稿日期: 2022-01-11      出版日期: 2023-01-16
中图分类号:  TB332
基金资助:上海市教育发展基金会和上海市教育委员会"曙光计划"(18SG34)
通讯作者: 李红     E-mail: lihong2007@shu.edu.cn
作者简介: 李红(1979-), 女, 研究员, 博士, 主要从事碳基复合材料方面的研究工作, 联系地址: 上海市宝山区上大路99号上海大学复合材料研究中心(200444), E-mail: lihong2007@shu.edu.cn
引用本文:
曾宏伟, 李红, 姚彧敏, 杨敏, 陶银萍, 任慕苏, 孙晋良. 热解碳含量对碳/碳-聚酰亚胺复合材料性能的影响[J]. 材料工程, 2023, 51(1): 148-154.
Hongwei ZENG, Hong LI, Yumin YAO, Min YANG, Yinping TAO, Musu REN, Jinliang SUN. Effect of pyrolytic carbon content on properties of carbon/carbon-polyimide composites. Journal of Materials Engineering, 2023, 51(1): 148-154.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2022.000017      或      http://jme.biam.ac.cn/CN/Y2023/V51/I1/148
Sample Density/
(g·cm-3)
Mass fraction
of CF/%
Mass fraction
of PyC/%
Mass fraction
of PI/%
Porosity/
%
P0 1.30 16.62 0 83.38 8.0
P1 1.34 17.69 7.33 74.98 8.6
P2 1.37 15.58 14.55 69.87 8.8
P3 1.40 16.49 22.00 61.51 8.4
Table 1  碳/碳-聚酰亚胺复合材料基本参数
Fig.1  碳/碳-聚酰亚胺复合材料制备流程(a)及固化工艺(b)
Fig.2  碳/碳坯体(a)和碳/碳-聚酰亚胺复合材料(b)微观形貌

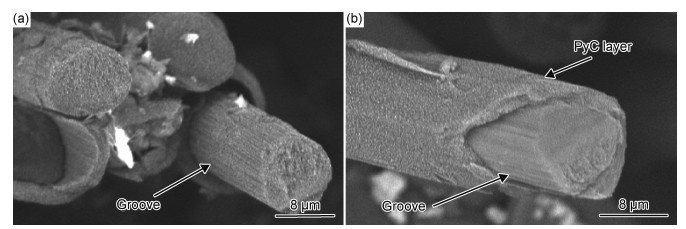

Fig.3  碳纤维表面(a)和经热解碳包覆后的碳纤维(b)形貌
Direction Average linear expansion coefficient/10-6-1
P0 P1 P2 P3
XY 0.72 0.67 0.75 0.79
Z 8.82 5.15 5.13 6.69
Table 2  碳/碳-聚酰亚胺复合材料XY向、Z向平均线膨胀系数
Fig.4  不同热解碳含量的碳/碳-聚酰亚胺复合材料压缩强度
Fig.5  碳/碳-聚酰亚胺复合材料压缩破坏图像(a)P1的Z向压缩;(b)P1的XY向压缩;(c)P3的Z向压缩;(d)P3的XY向压缩;(e)剪切破坏;(f)横向开裂破坏
Fig.6  不同热解碳含量的碳/碳-聚酰亚胺复合材料Z向弯曲强度(a)和应力-应变曲线(b)
Fig.7  不同热解碳含量的碳/碳-聚酰亚胺复合材料在弯曲应力破坏下的微观形貌
(a)P1;(b)P2;(c),(d)P3
