基于Ti3C2Tx材料在钠离子电池中的应用进展

doi:10.11868/j.issn.1001-4381.2022.000094

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(13611 KB)

HTML ( 25 )
输出: BibTeX | EndNote (RIS)

摘要

MXene由于具有独特的层状结构、高电子导电性和丰富的表面化学特性，在储能、电磁干扰屏蔽、催化、医药等方面有广泛的应用前景。Ti₃C₂T_x作为最早发现的MXene材料，其固有的金属导电特征、宽层间距和丰富的表面官能团，引起了钠离子电池领域研究人员的关注。本文综述了近年来Ti₃C₂T_x基材料在钠离子电池中的研究进展。首先从Ti₃C₂T_x材料的制备展开，概述多层和少层两类Ti₃C₂T_x材料的结构与电化学特性。随后结合研究的应用趋势，总结两类Ti₃C₂T_x材料的层间距改性、掺杂改性、形貌调控等手段对其储钠行为的影响。同时也分析了两类Ti₃C₂T_x基复合材料应用于钠离子电池负极的结构设计思路，指出合理的结构设计对电池性能至关重要。最后对Ti₃C₂T_x基复合材料在钠离子电池领域中面临的问题和挑战提出了一些建议。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	曾敏
	陈淋
	李星
	王明珊

关键词 ：二维材料, MXene, Ti₃C₂T_x, 钠离子电池, 复合材料

Abstract：

MXene has a wide application prospect in energy storage, electromagnetic interference shielding, catalysis, medicine and other fields due to its unique layered structure, high electronic conductivity and rich surface chemical properties.Ti₃C₂T_x, as the earliest discovered MXene material, has the possibility to achieve both high energy density and power density in the field of sodium ion batteries because of its inherent metal conductive characteristics, wide layer spacing and abundant surface functional groups, which is attracted by many researchers. Based on this, the research progress of Ti₃C₂T_x based materials in sodium ion batteries in recent years was reviewed in this paper. Firstly, the structure and electrochemical properties of Ti₃C₂T_x materials with multi-layer and few-layer were summarized by introducing the preparation of Ti₃C₂T_x. Then, combined with the application trend of the study, the influences of layer spacing modification, doping modification and morphology regulation on the sodium storage behavior of the two kinds of Ti₃C₂T_x materials were summarized. The structural design ideas of the two kinds of Ti₃C₂T_x based composites applied to the anode of the sodium ion battery were also analyzed. It was pointed out that the reasonable structural design is vital to the battery performance. Finally, some suggestions for the problems and challenges faced by Ti₃C₂T_x based composites in the field of sodium ion batteries were given.

Key words： two-dimensional material MXene Ti₃C₂T_x sodium-ion battery composites

收稿日期: 2022-02-14 出版日期: 2023-02-20

中图分类号:

TQ152

基金资助:国家自然科学基金面上基金项目(52072322);四川省科技厅重点研发计划项目(2022YFG0294);四川省成都市国际科技合作项目(2019-GH02-00052-HZ)

通讯作者: 王明珊 E-mail: ustbwangmingshan@163.com

作者简介: 王明珊(1986—)，女，副教授，博士，研究方向为电化学储能材料开发及应用，联系地址：四川省成都市新都区新都大道8号西南石油大学(610500)，E-mail：ustbwangmingshan@163.com

引用本文:

曾敏, 陈淋, 李星, 王明珊. 基于Ti₃C₂T_x材料在钠离子电池中的应用进展[J]. 材料工程, 2023, 51(2): 1-14.
Min ZENG, Lin CHEN, Xing LI, Mingshan WANG. Progress in application of Ti₃C₂T_x materials in sodium-ion batteries. Journal of Materials Engineering, 2023, 51(2): 1-14.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2022.000094 或 http://jme.biam.ac.cn/CN/Y2023/V51/I2/1

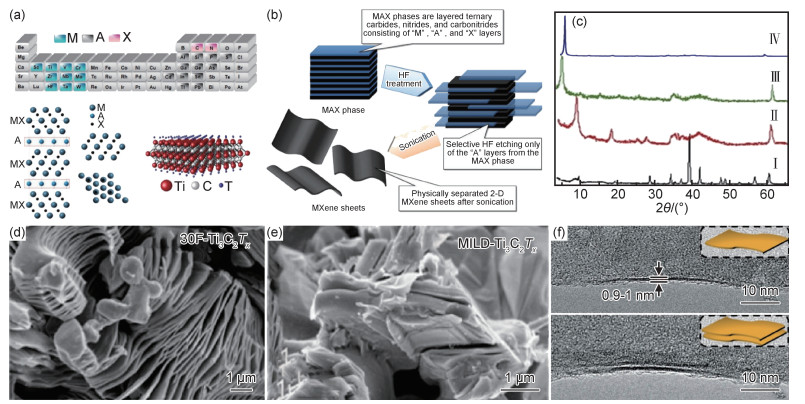

Fig.1 Ti₃C₂T_x的结构与制备
(a)MAX相和MXene的结构^[7]；(b)从MAX相到少层MXene纳米片制备流程示意图^[19]；(c)Ti₃AlC₂(Ⅰ)、氢氟酸刻蚀手风琴状多层Ti₃C₂T_x(Ⅱ)、DMSO插层多层Ti₃C₂T_x(Ⅲ)与剥离后的Ti₃C₂T_x (Ⅳ)的XRD谱图^[20]；(d)氢氟酸刻蚀法所得的手风琴状多层Ti₃C₂T_x SEM图^[21]；(e)氟化锂/盐酸刻蚀法所得的块状多层Ti₃C₂T_x的SEM图^[21]；(f)单层与双层Ti₃C₂T_x的TEM图^[22]

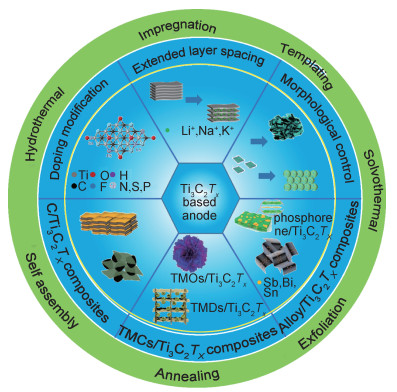

Fig.2 Ti₃C₂T_x基钠离子电池负极材料的设计策略

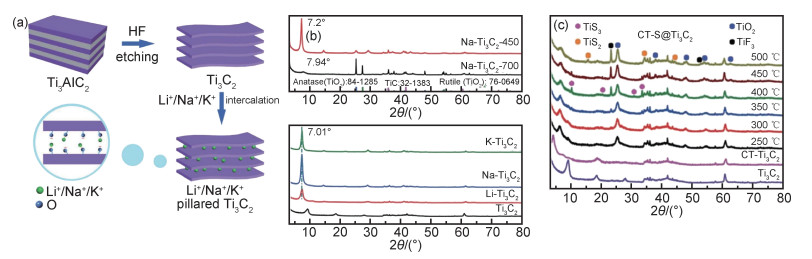

Fig.3 多层Ti₃C₂T_x的改性
(a)碱金属离子柱撑Ti₃C₂制备工艺示意谱图^[31]；(b)碱金属离子柱撑Ti₃C₂的XRD谱图^[31]；(c)S原子共价柱撑Ti₃C₂的XRD图^[32]

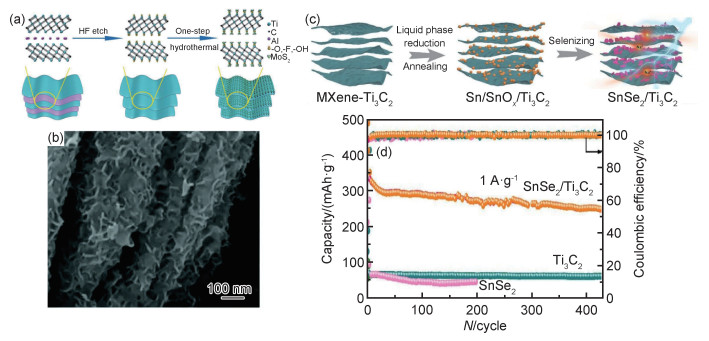

Fig.4 硫族化合物/多层Ti₃C₂T_x复合材料的性能
(a)MoS₂/Ti₃C₂T_x复合材料制备示意图^[40]；(b)MoS₂/Ti₃C₂T_x复合材料的SEM图^[40]；(c)SnSe₂/Ti₃C₂T_x复合材料的制备示意图^[43]；(d)SnSe₂/Ti₃C₂T_x复合材料的循环性能^[43]

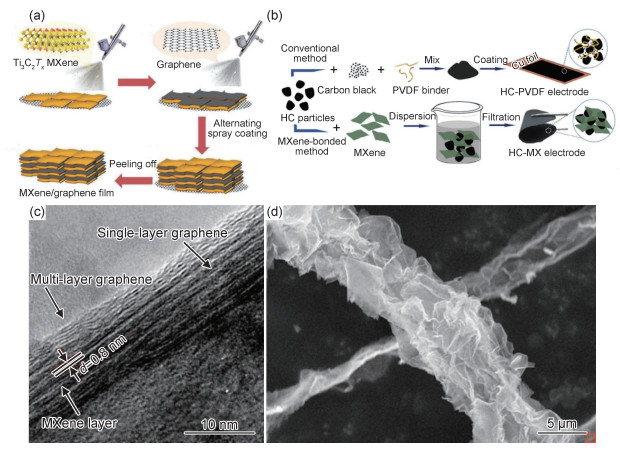

Fig.5 碳/少层Ti₃C₂T_x复合材料
(a)rGO/Ti₃C₂T_x异质结构自支撑薄膜制备示意图^[50]；(b)HC-MX自支撑电极的制备示意图^[51]；(c)rGO/Ti₃C₂T_x异质结构的TEM图^[50]；(d)MXene@NCRib复合材料的SEM图^[52]

Fig.6 金属硫族化合物/Ti₃C₂T_x复合材料的性能
(a)(CoSNP@NHC)@MXene复合材料的TEM图^[65]；(b)(CoSNP@NHC)@MXene复合材料的循环性能^[65]；(c)Sb₂S₃/Ti₃C₂T_x复合自支撑薄膜电极制备示意图^[66]；(d)Sb₂S₃/Ti₃C₂T_x复合自支撑薄膜的循环性能^[66]；(e)MX-H-MoS₂@NC复合自支撑电极截面SEM图^[67]；(f)MX-H-MoS₂@NC复合自支撑电极的循环性能^[67]

Composite	Sample	Electrolyte	Voltage window/V	Electrochemical performance	Reference
Carbon based composite	Ti₃C₂T_x/CNT-SA	1 mol·L^-1 NaClO₄ in EC/PC with 5%(mass fraction, the same below)FEC	0.01-3	0.1 A·g^-1, 175 mAh·g^-1 after 100 cycles	[70]
	Freestanding-rGO/TiC	1 mol·L^-1 NaClO₄ in EC/DEC	0.01-3	1 A·g^-1, 110 mAh·g^-1 after 2000 cycles	[71]
	MXene/rGO heterostructured films	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-3	0.5 A·g^-1, 220 mAh·g^-1 after 100 cycles	[50]
	HC-MX-2∶1 film	1 mol·L^-1 NaClO₄ in EC/DEC	0.01-3	0.2 A·g^-1, 273.2 mAh·g^-1 after 1500 cycles	[51]
	MXene@NCRib	1 mol·L^-1 NaClO₄ in EC/DMC	0.01-3	1 A·g^-1, 210.2 mAh·g^-1 after 1000 cycles	[52]
Alloy based composite	TNDs/P	1 mol·L^-1 NaClO₄ in EC/DEC with 10%FEC	0.01-2	0.1 A·g^-1, 400 mAh·g^-1 after 150 cycles	[54]
	BP/Ti₃C₂ composite	1 mol·L^-1 NaClO₄ in EC/PC	0.01-3	0.1 A·g^-1, 121 mAh·g^-1 after 100 cycles	[55]
	Phosphorene/MXene	1 mol·L^-1 NaClO₄ in EC/PC	0.01-3	1 A·g^-1, 298 mAh·g^-1 after 1000 cycles	[56]
	PDDA-BP/Ti₃C₂	1 mol·L^-1 NaClO₄ in EC/DMC/EMC with 5%FEC	0.01-3	1 A·g^-1, 658 mAh·g^-1 after 2000 cycles	[57]
	Sb/p-Ti₃C₂T_x	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-2.5	0.2 A·g^-1, 216.8 mAh·g^-1 after 300 cycles	[58]
	Bi/MXene	1 mol·L^-1 NaClO₄ in PC with 5%FEC	0.01-1.5	5 A·g^-1, 301 mAh·g^-1 after 2500 cycles	[59]
Metal oxide based composite	Sb₂O₃/MXene	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-2.5	0.5 A·g^-1, 395 mAh·g^-1 after 100 cycles	[60]
	TiO₂@Ti₃C₂T_x	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-3	0.96 A·g^-1, 116 mAh·g^-1 after 5000 cycles	[61]
	VO₂/MX	1 mol·L^-1 NaClO₄ in EC/DEC with 5%FEC	0.01-3	0.1 A·g^-1, 281 mAh·g^-1 after 200 cycles	[62]
Metal sulfide based composite	SnS₂ QDs/Ti₃C₂ composite	1 mol·L^-1 NaClO₄ in EC/DMC/EMC	0.01-3	0.1 A·g^-1, 345.3 mAh·g^-1 after 600 cycles	[72]
	Ni₃S₂/d-Ti₃C₂	1 mol·L^-1 NaClO₄ in EC/DMC with 5%FEC	0.01-3	1 A·g^-1, 193.8 mAh·g^-1 after 800 cycles	[73]
	f-Ti₃C₂/CoS₂@NPC hybrids	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-3	2 A·g^-1, 200.6 mAh·g^-1 after 1500 cycles	[64]
	SnS/Ti₃C₂T_x-O	1 mol·L^-1 NaClO₄ in EC/DMC with 5%FEC	0.01-3	0.1 A·g^-1, 565 mAh·g^-1 after 70 cycles	[74]
	Bi₂S₃/MXene composite	1 mol·L^-1 NaSO₃CF₃ in DGM	0.5-2.8	0.5 A·g^-1, 155 mAh·g^-1 after 250 cycles	[75]
	CoS/MXene	1 mol·L^-1 NaSO₃CF₃ in DGM	0.4-2.9	2 A·g^-1, 265 mAh·g^-1 after 1700 cycles	[76]
	(CoS NP@NHC)@ MXene	1 mol·L^-1 NaClO₄ in EC/DMC with 5%FEC	0.01-3	2 A·g^-1, 420 mAh·g^-1 after 600 cycles	[65]
	Co-NiS/MXene composite	1 mol·L^-1 NaClO₄ in EC/DMC/EMC with 5%FEC	0.01-3	0.1 A·g^-1, 409 mAh·g^-1 after 100 cycles	[77]
	Sb₂S₃/Ti₃C₂T_x	1 mol·L^-1 NaClO₄ in PC with 5%FEC	0.01-1.5	1 A·g^-1, 464 mAh·g^-1 after 500 cycles	[66]
	L-Sb₂S₃/Ti₃C₂ composite	1 mol·L^-1 NaClO₄ in EC/DEC with 5%FEC	0.01-3	0.1 A·g^-1, 455.5 mAh·g^-1 after 100 cycles	[78]
	MSe-MXene-CNRib	1 mol·L^-1 NaClO₄ in EC/DMC	0.01-3	1 A·g^-1, 480.7 mAh·g^-1 after 1000 cycles	[68]
	Fe_x-1Se_x/MXene/ FCR	1 mol·L^-1 NaClO₄ in EC/DMC	0.01-3	10 A·g^-1, 348.1 mAh·g^-1 after 2000 cycles	[79]
	MX/SnS₂	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-2.5	0.1 A·g^-1, 322 mAh·g^-1 after 200 cycles	[69]
	MoSe₂/MXene	1 mol·L^-1 NaClO₄ in EC/PC with 5%FEC	0.01-3	2 A·g^-1, 384 mAh·g^-1 after 400 cycles	[80]
	Co_xFe_1-xS₂@ S-Ti₃C₂	1 mol·L^-1 NaSO₃CF₃ in DGM	0.5-3	5 A·g^-1, 399 mAh·g^-1 after 600 cycles	[81]
	MX-H-MoS₂@NC	1 mol·L^-1 NaPF₆ in DOL/DGM	0.01-3	5 A·g^-1, 198.3 mAh·g^-1 after 2000 cycles	[67]
	NiSe₂@C@MXene composites	1 mol·L^-1 NaClO₄ in EC/DEC with 5%FEC	0.01-3	2 A·g^-1, 327 mAh·g^-1 after 4000 cycles	[82]

Table 1 少层Ti₃C₂T_x基复合材料的钠离子储存性能

1	ARICO A , BRUCE P , SCROSATI B , et al. Nanostructured materials for advanced energy conversion and storage devices[J]. Nature Materials, 2005, 4 (5): 366- 377. doi: 10.1038/nmat1368
2	VAALMA C , BUCHHOLZ D , WEIL M , et al. A cost and resource analysis of sodium-ion batteries[J]. Nature Reviews Materials, 2018, 3 (4): 18013. doi: 10.1038/natrevmats.2018.13
3	SUN Y , GUO S , ZHOU H . Exploration of advanced electrode materials for rechargeable sodium-ion batteries[J]. Advanced Energy Materials, 2019, 9 (23): 1800212. doi: 10.1002/aenm.201800212
4	SUN Y , GAO S , XIE Y . Atomically-thick two-dimensional crystals: electronic structure regulation and energy device construction[J]. Chemical Society Reviews, 2014, 43 (2): 530- 546. doi: 10.1039/C3CS60231A
5	TAN C , CAO X , WU X J , et al. Recent advances in ultrathin two-dimensional nanomaterials[J]. Chemical Reviews, 2017, 117 (9): 6225- 6331. doi: 10.1021/acs.chemrev.6b00558
6	BONACCORSO F , COLOMBO L , YU G , et al. Graphene, related two-dimensional crystals, and hybrid systems for energy conversion and storage[J]. Science, 2015, 347 (6217): 1246501.
7	XIONG D , LI X , BAI Z , et al. Recent advances in layered Ti₃C₂T_x MXene for electrochemical energy storage[J]. Small, 2018, 14 (17): 1703419. doi: 10.1002/smll.201703419
8	BHIMANAPATI G R , LIN Z , MEUNIER V , et al. Recent advances in two-dimensional materials beyond graphene[J]. ACS Nano, 2015, 9 (12): 11509- 11539. doi: 10.1021/acsnano.5b05556
9	ZHAO J , LIU H , YU Z , et al. Rise of silicene: a competitive 2D material[J]. Progress in Materials Science, 2016, 83, 24- 151. doi: 10.1016/j.pmatsci.2016.04.001
10	LI J , GUO C , LI C M . Recent advances of two-dimensional (2D) MXenes and phosphorene for high-performance rechargeable batteries[J]. ChemSusChem, 2020, 13 (6): 1047- 1070.
11	孙川, 邱学青, 覃发梅, 等. 六方氮化硼的液相剥离及其在电子器件热管理应用的研究进展[J]. 材料工程, 2019, 47 (12): 21- 23. doi: 10.11868/j.issn.1001-4381.2018.001461
11	SUN C , QIU X Q , QIN F M , et al. Research progress in liquid phase exfoliation of boron nitride and their application management of electronic devices[J]. Journal of Materials Engineering, 2019, 47 (12): 21- 23. doi: 10.11868/j.issn.1001-4381.2018.001461
12	NAGUIB M , KURTOGLU M , PRESSER V , et al. Two-dimensional nanocrystals produced by exfoliation of Ti₃AlC₂[J]. Advanced Materials, 2011, 23 (37): 4248- 4253. doi: 10.1002/adma.201102306
13	TANG Q , ZHOU Z , SHEN P W . Are MXenes promising anode materials for Li ion batteries? Computational studies on electronic properties and Li storage capability of Ti₃C₂and Ti₃C₂X₂(X=F, OH) monolayer[J]. Journal of the American Chemical Society, 2012, 134 (40): 16909- 16916. doi: 10.1021/ja308463r
14	TANG H , HU Q , ZHENG M B , et al. MXene-2D layered electrode materials for energy storage[J]. Progress in Natural Science-Materials International, 2018, 28 (2): 133- 147. doi: 10.1016/j.pnsc.2018.03.003
15	SONG F , LI G , ZHU Y , et al. Rising from the horizon: three-dimensional functional architectures assembled with MXene nanosheets[J]. Journal of Materials Chemistry A, 2020, 8 (36): 18538- 18559. doi: 10.1039/D0TA06222G
16	ZHANG X , ZHANG Z , ZHOU Z . MXene-based materials for electrochemical energy storage[J]. Journal of Energy Chemistry, 2018, 27 (1): 73- 85. doi: 10.1016/j.jechem.2017.08.004
17	LIU A , LIANG X , REN X , et al. Recent progress in MXene-based materials: potential high-performance electrocatalysts[J]. Advanced Functional Materials, 2020, 30 (38): 2003437. doi: 10.1002/adfm.202003437
18	CHEN J , HUANG Q , HUANG H , et al. Recent progress and advances in the environmental applications of MXene related materials[J]. Nanoscale, 2020, 12 (6): 3574- 3592. doi: 10.1039/C9NR08542D
19	NAGUIB M , MASHTALIR O , CARLE J , et al. Two-dimensional transition metal carbides[J]. ACS Nano, 2012, 6 (2): 1322- 1331. doi: 10.1021/nn204153h
20	MASHTALIR O , NAGUIB M , MOCHALIN V N , et al. Intercalation and delamination of layered carbides and carbonitrides[J]. Nature Communications, 2013, 4, 1716. doi: 10.1038/ncomms2664
21	ALHABEB M , MALESKI K , ANASORI B , et al. Guidelines for synthesis and processing of two-dimensional titanium carbide (Ti₃C₂T_x MXene)[J]. Chemistry of Materials, 2017, 29 (18): 7633- 7644. doi: 10.1021/acs.chemmater.7b02847
22	GHIDIU M , LUKATSKAYA M R , ZHAO M Q , et al. Conductive two-dimensional titanium carbide 'clay' with high volumetric capacitance[J]. Nature, 2014, 516 (7529): 78- 81. doi: 10.1038/nature13970
23	WANG H , ZHU C , CHAO D , et al. Nonaqueous hybrid lithium-ion and sodium-ion capacitors[J]. Advanced Materials, 2017, 29 (46): 1702093. doi: 10.1002/adma.201702093
24	ER D , LI J , NAGUIB M , et al. Ti₃C₂ MXene as a high capacity electrode material for metal (Li, Na, K, Ca) ion batteries[J]. ACS Applied Materials & Interfaces, 2014, 6 (14): 11173- 11179.
25	WANG X , SHEN X , GAO Y , et al. Atomic-scale recognition of surface structure and intercalation mechanism of Ti₃C₂X[J]. Journal of the American Chemical Society, 2015, 137 (7): 2715- 2721.
26	KAJIYAMA S , SZABOVA L , SODEYAMA K , et al. Sodium-ion intercalation mechanism in MXene nanosheets[J]. ACS Nano, 2016, 10 (3): 3334- 3341. doi: 10.1021/acsnano.5b06958
27	LV G X , WANG J , SHI Z Q , et al. Intercalation and delamination of two-dimensional MXene (Ti₃C₂T_x) and application in sodium-ion batteries[J]. Materials Letters, 2018, 219, 45- 50. doi: 10.1016/j.matlet.2018.02.016
28	WU Y T , NIE P , WANG J , et al. Few-layer MXenes delaminated via high-energy mechanical milling for enhanced sodium-ion batteries performance[J]. ACS Applied Materials & Interfaces, 2017, 9 (45): 39610- 39617.
29	ZHANG S , HAN W Q . Recent advances in MXenes and their composites in lithium/sodium batteries from the viewpoints of components and interlayer engineering[J]. Physical Chemistry Chemical Physics, 2020, 22 (29): 16482- 16526. doi: 10.1039/D0CP02275F
30	LUKATSKAYA M R , MASHTALIR O , REN C E , et al. Cation intercalation and high volumetric capacitance of two-dimensional titanium carbide[J]. Science, 2013, 341 (6153): 1502- 1505. doi: 10.1126/science.1241488
31	LUO J M , FANG C , JIN C B , et al. Tunable pseudocapacitance storage of MXene by cation pillaring for high performance sodium-ion capacitors[J]. Journal of Materials Chemistry A, 2018, 6 (17): 7794- 7806.
32	LUO J M , ZHENG J H , NAI J W , et al. Atomic sulfur covalently engineered interlayers of Ti₃C₂ MXene for ultra-gast sodium-ion storage by enhanced pseudocapacitance[J]. Advanced Functional Materials, 2019, 29 (10): 1808107.
33	LEE J S , THEERTHAGIRI J , NITHYADHARSENI P , et al. Heteroatom-doped graphene-based materials for sustainable energy applications: a review[J]. Renewable and Sustainable Energy Reviews, 2021, 143, 110849.
34	LU C J , YANG L , YAN B Z , et al. Nitrogen-doped Ti₃C₂ MXene: mechanism investigation and electrochemical analysis[J]. Advanced Functional Materials, 2020, 30 (47): 2000852.
35	LI J , YAN D , HOU S , et al. Improved sodium-ion storage performance of Ti₃C₂T_x MXenes by sulfur doping[J]. Journal of Materials Chemistry A, 2018, 6 (3): 1234- 1243.
36	SUN S , XIE Z , YAN Y , et al. Hybrid energy storage mechanisms for sulfur-decorated Ti₃C₂ MXene anode material for high-rate and long-life sodium-ion batteries[J]. Chemical Engineering Journal, 2019, 366, 460- 467.
37	WU C , HUANG C , ZHANG Z , et al. Bulk Ti₃C₂T_x anodes for superior sodium storage performance: the unique role of O-termination[J]. Materials Chemistry Frontiers, 2021, 5 (6): 2810- 2823.
38	LIANG S , ZHANG S , LIU Z , et al. Approaching the theoretical sodium storage capacity and ultrahigh rate of layer-expanded MoS₂ by interfacial engineering on N-doped graphene[J]. Advanced Energy Materials, 2021, 11 (12): 2002600.
39	WU Y , NIE P , JIANG J , et al. MoS₂-nanosheet-decorated 2D titanium carbide (MXene) as high-performance anodes for sodium-ion batteries[J]. ChemElectroChem, 2017, 4 (6): 1560- 1565.
40	DU G , TAO M , GAO W , et al. Preparation of MoS₂/Ti₃C₂T_x composite as anode material with enhanced sodium/lithium storage performance[J]. Inorganic Chemistry Frontiers, 2019, 6 (1): 117- 125.
41	马艳梅. 钠离子电池硫化物负极材料的研究进展[J]. 储能科学与技术, 2019, 8 (3): 488- 494.
41	MA Y M . Recent research progress of metal sulfides as anode materials for sodium-ion batteries[J]. Energy Storage Science and Technology, 2019, 8 (3): 488- 494.
42	ZHANG Y Q , GUO B S , HU L Y , et al. Synthesis of SnS nanoparticle-modified MXene (Ti₃C₂T_x) composites for enhanced sodium storage[J]. Journal of Alloys and Compounds, 2018, 732, 448- 453.
43	FAN T , WU Y , LI J , et al. Sheet-to-layer structure of SnSe₂/MXene composite materials for advanced sodium ion battery anodes[J]. New Journal of Chemistry, 2021, 45 (4): 1944- 1952.
44	ZHAO M Q , XIE X , REN C E , et al. Hollow MXene spheres and 3D macroporous MXene frameworks for Na-ion storage[J]. Advanced Materials, 2017, 29 (37): 1702410.
45	XIE X , KRETSCHMER K , ANASORI B , et al. Porous Ti₃C₂T_x MXene for ultrahigh-rate sodium-ion storage with long cycle life[J]. ACS Applied Nano Materials, 2018, 1 (2): 505- 511.
46	ZHAO D , CLITES M , YING G , et al. Alkali-induced crumpling of Ti₃C₂T_x (MXene) to form 3D porous networks for sodium ion storage[J]. Chemical Communications, 2018, 54 (36): 4533- 4536.
47	FAN Z , WEI C , YU L , et al. 3D printing of porous nitrogen-doped Ti₃C₂ MXene scaffolds for high-performance sodium-ion hybrid capacitors[J]. ACS Nano, 2020, 14 (1): 867- 876.
48	LI G , LIAN S , SONG F , et al. Surface chemistry and mesopore dual regulation by sulfur-promised high volumetric capacity of Ti₃C₂T_x films for sodium-ion storage[J]. Small, 2021, 17 (49): 2103626.
49	张思伟, 张俊, 吴思达, 等. 钠离子电池用碳负极材料研究进展[J]. 化学学报, 2017, 75, 163- 172.
49	ZHANG S W , ZHANG J , WU S D , et al. Research advances of carbon-based anode materials for sodium-ion batteries[J]. Acta Chimica Sinica, 2017, 75, 163- 172.
50	ZHAO M Q , TRAINOR N , REN C E , et al. Scalable manufacturing of large and flexible sheets of MXene/graphene heterostructures[J]. Advanced Materials Technologies, 2019, 4 (5): 1800639.
51	SUN N , ZHU Q , ANASORI B , et al. MXene-bonded flexible hard carbon film as anode for stable Na/K-ion storage[J]. Advanced Functional Materials, 2019, 29 (51): 1906282.
52	CAO J , SUN Z , LI J , et al. Microbe-assisted assembly of Ti₃C₂T_x MXene on Fungi-derived nanoribbon heterostructures for ultrastable sodium and potassium ion storage[J]. ACS Nano, 2021, 15 (2): 3423- 3433.
53	ZHU Y , WEN Y , FAN X , et al. Red phosphorus single-walled carbon nanotube composite as a superior anode for sodium ion batteries[J]. ACS Nano, 2015, 9 (3): 3254- 3264.
54	ZHANG T , JIANG X , LI G , et al. A red-phosphorous-assisted ball-milling synthesis of few-layered Ti₃C₂T_x(MXene) nanodot composite[J]. ChemNanoMat, 2018, 4 (1): 56- 60.
55	LI H , LIU A , REN X , et al. A black phosphorus/Ti₃C₂ MXene nanocomposite for sodium-ion batteries: a combined experimental and theoretical study[J]. Nanoscale, 2019, 11 (42): 19862- 19869.
56	GUO X , ZHANG W , ZHANG J , et al. Boosting sodium storage in two-dimensional phosphorene/Ti₃C₂T_x MXene nanoarchitectures with stable fluorinated interphase[J]. ACS Nano, 2020, 14 (3): 3651- 3659.
57	ZHAO R , QIAN Z , LIU Z , et al. Molecular-level heterostructures assembled from layered black phosphorene and Ti₃C₂ MXene as superior anodes for high-performance sodium ion batteries[J]. Nano Energy, 2019, 65, 104037.
58	ZHANG S , YING H , HUANG P , et al. Ultrafine Sb pillared few-layered Ti₃C₂T_x MXenes for advanced sodium storage[J]. ACS Applied Energy Materials, 2021, 4 (9): 9806- 9815.
59	MA H , LI J , YANG J , et al. Bismuth nanoparticles anchored on Ti₃C₂T_x MXene nanosheets for high-performance sodium-ion batteries[J]. Chemistry-an Asian Journal, 2021, 16 (22): 3774- 3780.
60	GUO X , XIE X , CHOI S , et al. Sb₂O₃/MXene(Ti₃C₂T_x) hybrid anode materials with enhanced performance for sodium-ion batteries[J]. Journal of Materials Chemistry A, 2017, 5 (24): 12445- 12452.
61	GUO X , ZHANG J Q , SONG J J , et al. MXene encapsulated titanium oxide nanospheres for ultra-stable and fast sodium storage[J]. Energy Storage Materials, 2018, 14, 306- 313.
62	WU F , JIANG Y , YE Z , et al. A 3D flower-like VO₂/MXene hybrid architecture with superior anode performance for sodium ion batteries[J]. Journal of Materials Chemistry A, 2019, 7 (3): 1315- 1322.
63	YANG W J , CHEN D , SHE Y Q , et al. Rational design of vanadium chalcogenides for sodium-ion batteries[J]. Journal of Power Sources, 2020, 478, 228769.
64	HUANG P F , YING H J , ZHANG S L , et al. Multidimensional synergistic architecture of Ti₃C₂ MXene/CoS₂@N-doped carbon for sodium-ion batteries with ultralong cycle lifespan[J]. Chemical Engineering Journal, 2022, 429, 132396.
65	YAO L , GU Q , YU X . Three-dimensional MOFs@MXene aerogel composite derived MXene threaded hollow carbon confined CoS nanoparticles toward advanced alkali-ion batteries[J]. ACS Nano, 2021, 15 (2): 3228- 3240.
66	YANG J , WANG T , GUO X , et al. Flexible sodium-ion capacitors boosted by high electrochemically-reactive and structurally-stable Sb₂S₃ nanowire/Ti₃C₂T_x MXene film anodes[J]. Nano Research, 2021, 7, 3933.
67	WU Y , ZHONG W , YANG Q , et al. Flexible MXene-Ti₃C₂T_x bond few-layers transition metal dichalcogenides MoS₂/C spheres for fast and stable sodium storage[J]. Chemical Engineering Journal, 2022, 427, 130960.
68	CAO J , LI J , LI D , et al. Strongly coupled 2D transition metal chalcogenide-MXene-carbonaceous nanoribbon heterostructures with ultrafast ion transport for boosting sodium/potassium ions storage[J]. Nano-Micro Letters, 2021, 13 (1): 113.
69	WU Y , NIE P , WU L , et al. 2D MXene/SnS₂ composites as high-performance anodes for sodium ion batteries[J]. Chemical Engineering Journal, 2018, 334, 932- 938.
70	XIE X , ZHAO M Q , ANASORI B , et al. Porous heterostructured MXene/carbon nanotube composite paper with high volumetric capacity for sodium-based energy storage devices[J]. Nano Energy, 2016, 26, 513- 523.
71	ZHANG W , PAN Z Z , LV W , et al. Wasp nest-imitated assembly of elastic rGO/p-Ti₃C₂T_x MXene-cellulose nanofibers for high-performance sodium-ion batteries[J]. Carbon, 2019, 153, 625- 633.
72	DING J , TANG C , ZHU G , et al. Integrating SnS₂ quantum dots with nitrogen-doped Ti₃C₂T_x MXene nanosheets for robust sodium storage performance[J]. ACS Applied Energy Materials, 2021, 4 (1): 846- 854.
73	LI C , ZHANG D , CAO J , et al. Ni₃S₂ nanoparticles anchored on d-Ti₃C₂ nanosheets with enhanced sodium storage[J]. ACS Applied Energy Materials, 2021, 4, 2593- 2599.
74	QIN J , HAO L , WANG X , et al. Toward understanding the enhanced pseudocapacitive storage in 3D SnS/MXene architectures enabled by engineered surface reactions[J]. Chemistry, 2020, 26 (49): 11231- 11240.
75	YANG Q , GAO W , ZHONG W , et al. A synergistic Bi₂S₃/MXene composite with enhanced performance as an anode material of sodium-ion batteries[J]. New Journal of Chemistry, 2020, 44 (7): 3072- 3077.
76	ZHANG Y , ZHAN R , XU Q , et al. Circuit board-like CoS/MXene composite with superior performance for sodium storage[J]. Chemical Engineering Journal, 2019, 357, 220- 225.
77	ZOU Z , WANG Q , YAN J , et al. Versatile interfacial self-assembly of Ti₃C₂T_x MXene based composites with enhanced kinetics for superior lithium and sodium storage[J]. ACS Nano, 2021, 15 (7): 12140- 12150.
78	HE F , TANG C , ZHU G , et al. Leaf-inspired design of mesoporous Sb₂S₃/N-doped Ti₃C₂T_x composite towards fast sodium storage[J]. Science China-Chemistry, 2021, 64 (6): 964- 973.
79	CAO J , WANG L , LI D , et al. Ti₃C₂T_x MXene conductive layers supported bio-derived Fe_x-1Se_x/MXene/carbonaceous nanoribbons for high-performance half/full sodium-ion and potassium-ion batteries[J]. Advanced Materials, 2021, 33 (34): 2101535.
80	XU E , ZHANG Y , WANG H , et al. Ultrafast kinetics net electrode assembled via MoSe₂/MXene heterojunction for high-performance sodium-ion batteries[J]. Chemical Engineering Journal, 2020, 385, 123839.
81	RUI Z , PENG L , WANG G . Bimetallic sulfide/sulfur doped Ti₃C₂T_x MXene nanocomposites as high-performance anode materials for sodium-ion batteries[J]. Chemical Research in Chinese Universities, 2020, 36 (3): 431- 438.
82	YUAN Z , GUO H , HUANG Y , et al. Composites of NiSe₂@C hollow nanospheres wrapped with Ti₃C₂T_x MXene for synergistic enhanced sodium storage[J]. Chemical Engineering Journal, 2022, 429, 132394.
