等离子旋转电极雾化法制备高品质Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn合金粉末
邝泉波1,2, 邹黎明2,*(), 蔡一湘2, 刘辛2, 程军3, 易健宏1
1 昆明理工大学 材料科学与工程学院, 昆明 650093
2 广东省科学院 广东省材料与加工研究所, 广州 510650
3 西北有色金属研究院 生物材料工程研究所, 西安 710016
Preparation of High Quality Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn Alloy Powder by Plasma Rotating Electrode Process
Quan-bo KUANG1,2, Li-ming ZOU2,*(), Yi-xiang CAI2, Xin LIU2, Jun CHENG3, Jian-hong YI1
1 School of Material Science and Engineering, Kunming University of Science and Technology, Kunming 650093, China
2 Guangdong Institute of Materials and Processing, Guangdong Academy of Sciences, Guangzhou 510650, China
3 Institute of Biological Materials Engineering, Northwest Institute for Non-Ferrous Metal Research, Xi'an 710016, China
全文: PDF(5739 KB)   HTML ( 26 )
输出: BibTeX | EndNote (RIS)
摘要

旨在制备高品质Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn粉末,为后续粉末高温钛合金构件的制备奠定基础。首先采用真空自耗电弧熔炼(VAR)技术制备Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn合金铸锭,对铸锭进行化学成分检测,并分析其合金元素损耗、成分均匀性以及显微组织和物相组成。利用制得棒料,采用等离子旋转电极雾化法(PREP),选取不同转速制备得到钛合金粉末,将粉末筛分成不同粒度范围。研究了棒料转速与粉末理化性能间的关系。采用X射线衍射分析仪(XRD)、扫描电镜(SEM)、金相显微镜(OM)分别分析了粉末的物相组成、形貌和微观组织。研究表明:通过独特的压制电极设计,可制得成分均匀、元素损耗小的钛合金铸锭,且各合金元素含量满足国标的要求。铸锭微观组织为层片状结构,基体中存在少量大小不均的Ti5Si3硅化物相。PREP法制得的钛合金粉末呈正态分布,且球形度好,无空心球和卫星球。随着转速增加,小颗粒粉末占比增加,大颗粒粉末占比大幅度降低。粉末颗粒以胞状组织为主,存在少量的枝晶。合金粉末主要由α'马氏体相组成。相比合金铸锭,粉末中各合金元素略有损耗,O元素质量分数小于0.1%,有利于制得高性能的粉末钛合金。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
邝泉波
邹黎明
蔡一湘
刘辛
程军
易健宏
关键词 真空自耗电弧熔炼等离子旋转电极雾化法高温钛合金微观组织硅化物
Abstract

This research aims to prepare high quality powder of Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn, which lays foundation for the following preparation of powder high temperature titanium alloy component.Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn alloy ingots were prepared by vacuum arc remelting (VAR). The chemical compositions of ingots were examined. The loss of alloy elements, uniformity of composition, phase composition and microstructure of titanium alloy ingots were analyzed. Then powders were prepared by plasma rotating electrode process (PREP) with different rotating speeds. Alloy powders were sieved into different particle sizes. The relationship between rotating speed and physical and chemical properties of powder was studied. X-ray diffraction(XRD), scanning electron microscope(SEM) and metallurgical microscope(OM) were used to investigate the phase composition, morphology and microstructure of the powder. The results show that the composition distribution of titanium alloy ingot prepared by VAR is uniform and the content of alloy elements meets the requirements of national standard, through a unique pressing electrode. Microstructure of the ingot is lamellar structure with small amounts of silicide particles disperse in the matrix. The size distribution of the powders made by PREP method exhibits the normal distribution. The sphericity of the powder is excellent, and no hollow ball and satellite ball exists. With the increase of rotating speed, the proportion of small particles increases dramatically, the proportion of large particles decreases greatly. The phase composition of powder is mainly α' phase, and it is mainly composed of peritectic and small amount of dendrite structures. Compared with the alloy ingot, the elements of the powders have a slight loss, the content of O is less than 0.1%, which is beneficial to obtain high-performance powder titanium alloy.

Key wordsvacuum arc remelting    plasma rotating electrode process    high temperature titanium alloy    microstructure    silicide
收稿日期: 2016-09-05      出版日期: 2017-10-18
中图分类号:  TF123
基金资助:国家自然科学基金资助项目(51504072);广州市对外科技合作专项(2014J4500024);广东省国际合作专项(2014B050503003);广东省自然科学基金-博士启动专项(2015A030310193);广东省前沿与关键技术创新专项(2015B010122004);广东省科学院创新平台能力提升专项(2016GDASPT-0209);广东省科学院创新平台能力提升专项(2016GDASPT-0102);广州市科创委创新平台建设与共享专项(201509010003);广东省公益研究与能力建设专项(2017A070702019);广州市产学研协同创新专项(201604040006)
通讯作者: 邹黎明     E-mail: leon.zou@163.com
作者简介: 邹黎明(1980-), 男, 工程师, 博士, 研究方向:金属材料制备与成形, 联系地址:广东省广州市天河区长兴路363号广东省材料与加工研究所粉末冶金研究室(510650), E-mail:leon.zou@163.com
引用本文:
邝泉波, 邹黎明, 蔡一湘, 刘辛, 程军, 易健宏. 等离子旋转电极雾化法制备高品质Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn合金粉末[J]. 材料工程, 2017, 45(10): 39-46.
Quan-bo KUANG, Li-ming ZOU, Yi-xiang CAI, Xin LIU, Jun CHENG, Jian-hong YI. Preparation of High Quality Ti-6.5Al-1.4Si-2Zr-0.5Mo-2Sn Alloy Powder by Plasma Rotating Electrode Process. Journal of Materials Engineering, 2017, 45(10): 39-46.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.001045      或      http://jme.biam.ac.cn/CN/Y2017/V45/I10/39
Fig.1  钛合金铸锭制备工艺流程
Fig.2  压制电极
(a)海绵钛、Al-Si中间合金和Al-Mo中间合金;(b)海绵锆、Si粉和Al-Mo中间合金;(c)Sn粒
Composition Al Si Zr Mo Sn O
Nominal composition 6.5 1.4 2.0 0.5 2 -
GB 6.0-7.0 1.0-2.0 1.5-2.5 0.4-0.6 1.5-2.5 <0.1
Top 6.46 1.38 2.04 0.55 2.02 0.064
Bottom 6.52 1.47 1.98 0.57 1.98 0.064
Table 1  钛合金铸锭名义成分、国标及上下端合金元素成分(质量分数/%)
Fig.3  合金铸锭显微组织及物相组成
(a)低倍;(b)高倍;(c)物相组成
Fig.4  Ti-Si二元相图[7]
Fig.5  不同转速下制得粉末粒度分布图
(a)12000r/min; (b)18000r/min
Diameter/μm Al Si Zr Mo Sn O
178-250 5.99 1.35 1.72 0.50 1.52 0.052
150-178 6.08 1.41 1.84 0.50 1.60 0.068
44-74 6.23 1.44 1.91 0.68 1.72 0.077
Table 2  粉末合金元素成分(质量分数/%)
Position Ti Al Sn
Edge 86.12 5.11 1.79
Centre 87.89 6.37 2.08
Table 3  粉末颗粒剖面边缘和中心化学成分(质量分数/%)

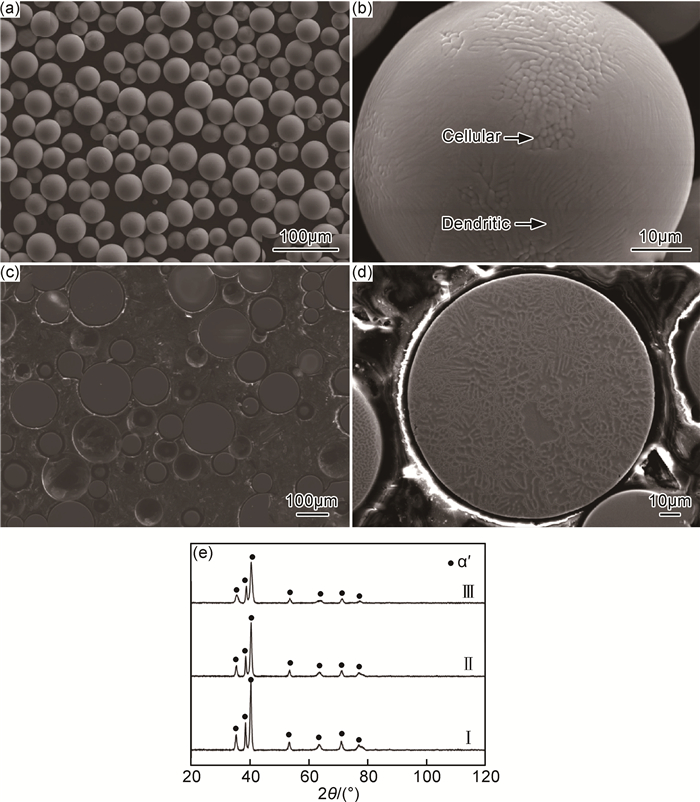

Fig.6  粉末显微组织形貌及物相组成
(a)低倍;(b)高倍;(c)腐蚀前;(d)腐蚀后;(e)粉末物相组成
