Please wait a minute...

2222材料工程  2017, Vol. 45 Issue (8): 83-87    DOI: 10.11868/j.issn.1001-4381.2015.001006
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
Fe30Mn5Al合金氧化改性层的电化学腐蚀性能
朱雪梅(), 张振卫, 王新建, 张彦生
大连交通大学 材料科学与工程学院, 辽宁 大连 116028
Electrochemical Corrosion Behavior of Oxidation Layer on Fe30Mn5Al Alloy
Xue-mei ZHU(), Zhen-wei ZHANG, Xin-jian WANG, Yan-sheng ZHANG
School of Materials Science and Engineering, Dalian Jiaotong University, Dalian 116028, Liaoning, China
全文: PDF(2918 KB)   HTML ( 19 )
输出: BibTeX | EndNote (RIS)
摘要

将Fe30Mn5Al合金在800℃空气中循环氧化160h,在氧化层与基体之间获得厚度约为15μm的贫Mn,富Fe铁素体层,研究氧化改性贫Mn层对Fe30Mn5Al合金电化学腐蚀性能的影响。结果表明:在1mol·L-1 Na2SO4溶液中,与原始合金相比,贫Mn层的阳极极化曲线呈自钝化,自腐蚀电位Evs SCE从-750mV提高至-130mV,钝化电流密度ip从310μA/cm2下降至29μA/cm2;电化学交流阻抗谱(EIS)的容抗弧直径及|Z|值增加,相位角平台变宽,利用等效电路Rs-(Rt//CPE)拟合的极化电阻Rt由2.7kΩ·cm2增至9.9kΩ·cm2;贫Mn层比合金基体具有更好的抗蚀性能。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
朱雪梅
张振卫
王新建
张彦生
关键词 Fe30Mn5Al合金氧化改性层阳极极化电化学交流阻抗
Abstract

The Fe30Mn5Al alloy was oxidized at 800℃ in air for 160h, the oxidation-induced layer about 15μm thick near the scale-metal interface was induced to transform to ferrite and become enriched in Fe and depletion in Mn. The effect of the oxidation-induced Mn depletion layer on the electrochemical corrosion behavior of Fe30Mn5Al alloy was evaluated. The results show that in 1mol·L-1 Na2SO4 solution, the anodic polarization curve of the Mn depletion layer exhibits self-passivation, compared with Fe30Mn5Al austenitic alloy, and the corrosion potential Evs SCE is increased to -130mV from -750mV and the passive current density ip is decreased to 29μA/cm2 from 310μA/cm2. The electrochemical impedance spectroscopy(EIS) of the Mn depletion layer has the larger diameter of capacitive arc, the higher impedance modulus|Z|, and the wider phase degree range, and the fitted polarization resistant Rt is increased to 9.9kΩ·cm2 from 2.7kΩ·cm2 by using an equivalent electric circuit of Rs-(Rt//CPE). The high insulation of the Mn depletion layer leads to an improved corrosion resistance of Fe30Mn5Al austenitic alloy.

Key wordsFe30Mn5Al alloy    oxidation layer    anodic polarization    electrochemical impedance spectroscopy
收稿日期: 2015-08-12      出版日期: 2017-08-10
中图分类号:  TG174.422
基金资助:国家自然科学基金资助项目(59901003)
通讯作者: 朱雪梅     E-mail: xmzhu@djtu.edu.cn
作者简介: 朱雪梅(1964-), 女, 教授, 硕士, 主要从事金属材料腐蚀与防护, 联系地址:大连交通大学材料科学与工程学院(116028), E-mail:xmzhu@djtu.edu.cn
引用本文:
朱雪梅, 张振卫, 王新建, 张彦生. Fe30Mn5Al合金氧化改性层的电化学腐蚀性能[J]. 材料工程, 2017, 45(8): 83-87.
Xue-mei ZHU, Zhen-wei ZHANG, Xin-jian WANG, Yan-sheng ZHANG. Electrochemical Corrosion Behavior of Oxidation Layer on Fe30Mn5Al Alloy. Journal of Materials Engineering, 2017, 45(8): 83-87.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.001006      或      http://jme.biam.ac.cn/CN/Y2017/V45/I8/83

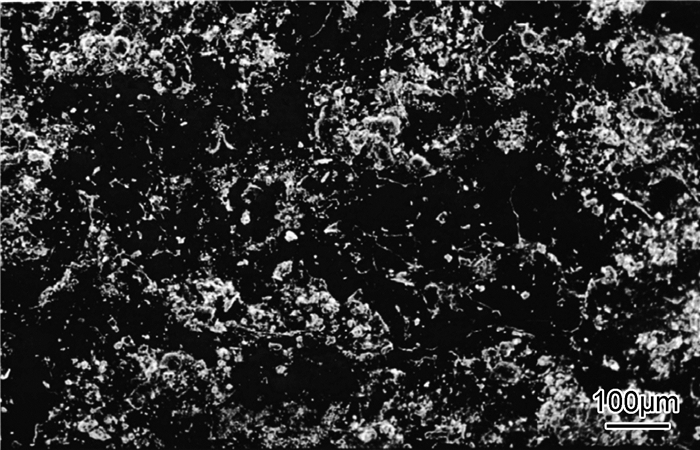

Fig.1  Fe30Mn5Al合金在800℃空气中循环氧化160h后的表面SEM图
Fig.2  Fe30Mn5Al合金在800℃空气中循环氧化160h后的横截面SEM图
Fig.3  Fe30Mn5Al合金在800℃空气中循环氧化160h的XRD图谱
Fig.4  Fe30Mn5Al合金在800℃空气中循环氧化160h后的横截面元素EPMA图
(a) O;(b) Fe;(c) Mn;(d) Al
Fig.5  Fe30Mn5Al合金在800℃空气中循环氧化160h后的表层成分-深度分布曲线
Fig.6  Fe30Mn5Al合金氧化改性层与Fe30Mn5Al合金在1mol·L-1 Na2SO4溶液中的阳极极化曲线
Fig.7  Fe30Mn5Al合金氧化改性层与Fe30Mn5Al合金在1mol·L-1 Na2SO4溶液中的电化学交流阻抗谱
(a)Nyquist polt;(b)Bode polt
Process Rt/(kΩ·cm2) Y0/(F·(Sn-1cm2)-1) n Rs/(Ω·cm2)
Mn depletion layer 9.9 8.925 ×10-5 0.889 10.7
Fe30Mn5Al 2.7 9.971×10-5 0.760 10.3
Table 1  Fe30Mn5Al合金氧化改性层与Fe30Mn5Al合金在1mol·L-1 Na2SO4溶液中电化学交流阻抗谱的拟合参数
1 GEBHARDT T , MUSIC D , KOSSMANN D , et al. Elastic properties of fcc Fe-Mn-X (X=Al, Si) alloys studied by theory and experiment[J]. Acta Mater, 2011, 59 (8): 3145- 3155.
doi: 10.1016/j.actamat.2011.01.054
2 LEE S , LEE C Y , LEE Y K . Schaeffler diagram for high Mn steels[J]. Journal of Alloys and Compounds, 2015, 628 (1): 46- 49.
3 WU Z Q , DING H , AN X H , et al. Influence of Al content on the strain-hardening behavior of aged low density Fe-Mn-Al-C steels with high Al content[J]. Materials Science and Engineering:A, 2015, 639 (5): 187- 191.
4 TUAN Y H , WANG C S , TSAI C Y . Corrosion behaviors of austenitic Fe-30Mn-7Al-xCr-1C alloys in 3.5% NaCl solution[J]. Materials Chemistry and Physics, 2009, 114 (2-3): 595- 598.
doi: 10.1016/j.matchemphys.2008.10.009
5 ZHU X M , ZHANG Y S . Investigation of the electrochemical corrosion behaviour and passive film for Fe-Mn, Fe-Mn-Al, and Fe-Mn-Al-Cr alloys in aqueous solutions[J]. Corrosion, 1998, 54 (1): 3- 12.
doi: 10.5006/1.3284826
6 LEE J W , DUH J G , WANG J H . Mechanical property evaluation of cathodic arc plasma-deposited CrN thin films on Fe-Mn-Al-C alloys[J]. Surf Coat Technol, 2003, 168 (2-3): 223- 230.
doi: 10.1016/S0257-8972(03)00222-6
7 JAW J H , CHENG W C , WANG C J . The formation of AlN crystals in an Fe-Mn-Al-C alloy during the nitriding process[J]. Metall Mater Trans A, 2005, 36A (9): 2289- 2296.
8 SU C W , LEE J W , WANG C S , et al. The effect of hot-dipped aluminum coatings on Fe-8Al-30Mn-0.8C alloy[J]. Surf Coat Technol, 2008, 202 (9): 1847- 1852.
doi: 10.1016/j.surfcoat.2007.08.011
9 WANG C H , LUO C W , HUANG C F , et al. Biocompatibility of metal carbides on Fe-Al-Mn-based alloys[J]. J Alloy Comp, 2011, 509 (3): 691- 696.
doi: 10.1016/j.jallcom.2010.06.071
10 ZHU X M , LIU M , ZHANG Y S . Electrochemistry and surface investigations of anodically passivated layer formed on Fe-Mn-Al-Cr alloy in Na2SO4 solution[J]. Corro Eng Sci Technol, 2007, 42 (1): 22- 28.
doi: 10.1179/174327807X159943
11 OH J M , MCNALLAN M J . Microstructural development in the surface region during oxidation of iron-manganese-nickel-silicon alloys[J]. J Electrochem Soc, 1986, 133 (5): 1042- 1048.
doi: 10.1149/1.2108702
12 PARK S H , CHUNG I S , KIM T W . Characterization of the high -temperature oxidation behavior in Fe-25Mn-1.5Al-0.5C alloy[J]. Oxid Met, 1998, 49 (3-4): 349- 371.
13 PEREZ P , PEREZ F J , GOMEZ C , et al. Oxidation behaviour of an austenitic Fe-30Mn-5Al-015C alloy[J]. Corro Sci, 2002, 44 (1): 113- 127.
doi: 10.1016/S0010-938X(01)00043-9
14 PEREZ P , GARCES G , PEREZ F J , et al. Influence of chromium additions on the oxidation resistance of an austenitic Fe-30Mn-5Al alloy[J]. Oxid Met, 2002, 57 (3-4): 339- 361.
15 OH J M , MCNALLAN M J . The effect of oxidation-induced surface transformations on the anodic polarization characteristics of FeMnSi alloys[J]. Corrosion, 1987, 43 (9): 561- 566.
doi: 10.5006/1.3583901
16 COCCIA L G , LENARDI C , SABATINI A . The effect of Mn-depleted surface layer on the corrosion resistance of shape memory Fe-Mn-Si-Cr alloys[J]. Metall Mater Trans A, 1997, 28A (5): 1219- 1222.
17 张林伟, 王鲁, 王全胜, 等. 冷喷涂CoNiCrAlY涂层在Na2SO4熔盐中的热腐蚀行为[J]. 材料工程, 2016, 44 (11): 45- 50.
doi: 10.11868/j.issn.1001-4381.2016.11.007
17 ZHANG L W , WANG L , WANG Q S , et al. Hot corrosion behavior of cold-sprayed CoNiCrAlY coating in Na2SO4 salt[J]. Journal of Materials Engineering, 2016, 44 (11): 45- 50.
doi: 10.11868/j.issn.1001-4381.2016.11.007
18 戴建伟, 易军, 王占考, 等. 单晶高温合金铂改性铝化物涂层的高温氧化行为[J]. 航空材料学报, 2015, 35 (5): 32- 38.
doi: 10.11868/j.issn.1005-5053.2015.5.006
18 DAI J W , YI J , WANG Z K , et al. High temperature oxidation behavior of Pt modified aluminide coating on single crystal superalloy[J]. Journal of Aeronautical Materials, 2015, 35 (5): 32- 38.
doi: 10.11868/j.issn.1005-5053.2015.5.006
[1] 李建平, 姜洪锋, 毛大恒, 曾立帮. 轧制变形量对铸轧铅合金板带性能的影响[J]. 材料工程, 2012, 0(4): 17-21.
[2] 成艳, 蔡伟, 赵连城. Cl-浓度和pH值对TiNi合金腐蚀行为和Ni离子析出的影响[J]. 材料工程, 2003, 0(9): 37-40.
Viewed
Full text


Abstract

Cited

  Shared
  Discussed
地址:北京81信箱44分箱 邮政编码: 100095
电话:010-62496276 E-mail:matereng@biam.ac.cn
本系统由北京玛格泰克科技发展有限公司设计开发 技术支持:support@magtech.com.cn
