海水中小球藻对Mg-3Y-1.5Nd镁合金腐蚀行为的影响

doi:10.11868/j.issn.1001-4381.2018.000157

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5924 KB)

HTML ( 13 )
输出: BibTeX | EndNote (RIS) 背景资料

文章导读

摘要

采用X射线衍射、扫描电子显微镜、X射线能谱仪等表面分析技术以及电化学技术，以稀土镁合金Mg-3Y-1.5Nd为基体，研究小球藻对其腐蚀行为的影响。结果表明：含小球藻培养液和不含小球藻培养液的镁合金表面主要腐蚀产物均为Mg（OH）₂，Mg₃（PO4）₂以及Mg₂（OH）₃Cl；含小球藻培养液的镁合金表面腐蚀产物中镁元素的占比较未含小球藻要小（29.6%vs 39.8%）；腐蚀产物存在疏松的结构有利于腐蚀性离子侵入，促进镁合金的进一步腐蚀；小球藻的光合作用导致生物膜保护层下出现高浓度的溶解氧，使氧还原阴极电流变大，从而增大Mg-3Y-1.5Nd合金的腐蚀速率。综上所述，当小球藻存在时，Mg-3Y-1.5Nd合金受到的腐蚀更为严重。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	林梦晓
	张杰
	蒋全通
	李佳润
	路东柱
	侯保荣
	孙园园

关键词 ： Mg-3Y-1.5Nd合金, 小球藻, 微生物腐蚀, 电化学

Abstract：

The effect of chlorella vulgaris on corrosion behavior of Mg-3Y-1.5Nd alloy in f/2 culture medium was studied by means of X-ray diffraction, scanning electron microscope, energy dispersive analysis system of X-ray and other electrochemistry test. Results show that the main corrosion products on the surface of alloy with and without chlorella vulgaris are Mg (OH)₂, Mg₃ (PO₄)₂ and Mg₂ (OH)₃Cl; Mg and O are present on the specimen surface, and the content of Mg in culture medium with chlorella vulgaris (29.6%) is lower than that without chlorella vulgaris (39.8%); and corrosive ions invade the loose corrosion product structure and promote further corrosion of the alloy; the high O₂ concentration produced by the photosynthesis of chlorella vulgaris results in the increase of local O₂ concentration underneath the biofilm, which adds oxygen reduction cathodic currents and enhances corrosion. It is conduded that the average corrosion rate in the presence of chlorella vulgaris is more serious than that in the absence of chlorella vulgaris.

Key words： Mg-3Y-1.5Nd alloy chlorella vulgaris microbiological corrosion electrochemistry

收稿日期: 2018-02-07 出版日期: 2020-01-09

中图分类号:

TG171

基金资助:国家自然科学基金资助项目(41376003);国家自然科学基金资助项目(41006054);中国科学院战略性先导科技专项（A类）(XDA13040405)

通讯作者: 张杰 E-mail: zhangjie@qdio.ac.cn

作者简介: 张杰(1976—), 男, 研究员, 博士, 主要从事海洋腐蚀与防护的研究, 联系地址:山东省青岛市市南区南海路7号中国科学院海洋研究所(266071), E-mail:zhangjie@qdio.ac.cn

引用本文:

林梦晓, 张杰, 蒋全通, 李佳润, 路东柱, 侯保荣, 孙园园. 海水中小球藻对Mg-3Y-1.5Nd镁合金腐蚀行为的影响[J]. 材料工程, 2020, 48(1): 98-107.
Meng-xiao LIN, Jie ZHANG, Quan-tong JIANG, Jia-run LI, Dong-zhu LU, Bao-rong HOU, Yuan-yuan SUN. Effect of chlorella vulgaris on corrosion behavior of Mg-3Y-1.5Nd alloy in natural seawater. Journal of Materials Engineering, 2020, 48(1): 98-107.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.000157 或 http://jme.biam.ac.cn/CN/Y2020/V48/I1/98

Table 1 f/2培养液成分

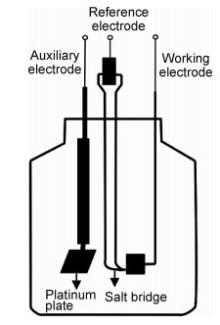

Fig.1 电化学实验体系

Fig.2 Mg-3Y-1.5Nd合金的XRD图谱

Fig.3 Mg-3Y-1.5Nd合金在不含小球藻和含小球藻的f/2培养液中浸泡不同时间的平均失重速率

Fig.4 Mg-3Y-1.5Nd合金在含小球藻(1)和不含小球藻(2)的f/2培养液中浸泡不同时间后去除腐蚀产物后的表面腐蚀形貌
(a)8 h；(b)16 h；(c)32 h；(d)48 h

Fig.5 Mg-3Y-1.5Nd在不含小球藻(a)和含小球藻(b)的f/2培养液中浸泡50 h后的EDS图谱

Fig.6 Mg-3Y-1.5Nd在不含小球藻(a)和含小球藻(b)的f/2培养液中浸泡50 h后的XRD图

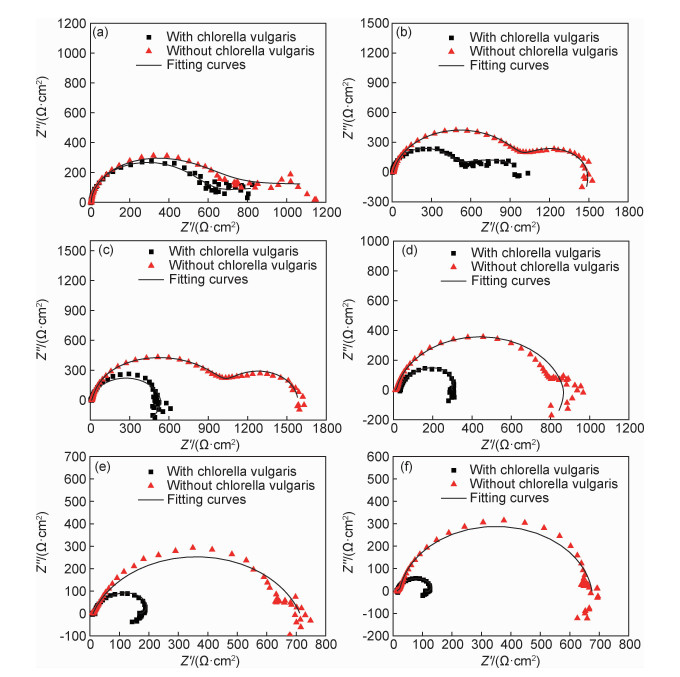

Fig.7 Mg-3Y-1.5Nd合金在含小球藻和不含小球藻的f/2培养液中浸泡不同时间的的电化学阻抗图
(a)10 min；(b)2 h；(c)12 h；(d)24 h；(e)36 h；(f)48 h

Fig.8 Mg-3Y-1.5Nd合金表面溶解的物理-化学特性模型^[32]

Fig.9 拟合图 7电化学阻抗图的等效电路图
(a)两个时间常数[R_s (Q_f (R_f (R_ct Q_dl)))]；(b)3个时间常数[R_s (Q_f (R_f (R_ct Q_dl)) (R_LMg⁺ L_Mg⁺))]；(c)两个时间常数[R_s (Q_dl R_ct (R_LMg⁺ L_Mg⁺))]

Fig.10 Mg-3Y-1.5Nd合金在不同条件下浸泡50 h后的极化曲线

Table 2 Mg-3Y-1.5Nd合金在含小球藻和不含小球藻条件下浸泡50 h后的极化曲线拟合电化学参数

Fig.11 Mg-3Y-1.5Nd合金在含小球藻的f/2培养液中的腐蚀模型^[18]
