氮掺杂碳纤维包覆石墨烯纳米片的构建及电容特性
阚侃, 王珏, 付东, 郑明明, 张晓臣()
黑龙江省科学院高技术研究院, 哈尔滨 150020
Construction and capacitive performance of N-doped carbon nanofiber coated graphene nanosheets
Kan KAN, Jue WANG, Dong FU, Mingming ZHENG, Xiaochen ZHANG()
Institute of Advanced Technology of Heilongjiang Academy of Sciences, Harbin 150020, China
全文: PDF(11066 KB)   HTML ( 6 )
输出: BibTeX | EndNote (RIS)
摘要

以石墨烯纳米片为骨架,聚吡咯为碳源,设计构建氮掺杂碳纤维包覆石墨烯纳米片(NFGNs)复合材料。采用SEM,XRD,Raman,FTIR,XPS和BET对材料进行表征,结果表明:相互连通的氮掺杂碳纳米纤维均匀地包覆生长在石墨烯纳米片层表面;NFGNs-800复合材料的氮原子分数为11.53%,比表面积为477.65 m2·g-1。电容特性测试结果表明:NFGNs-800电极材料的比电容为323.3 F·g-1(1.0 A·g-1),且具有良好的倍率特性;NFGNs-800超级电容器在功率密度为10500 W·kg-1时,能量密度为87.1 Wh·kg-1;经过10000次恒流充放电循环后,比电容保持率95.9%,库仑效率保持在99%以上。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
阚侃
王珏
付东
郑明明
张晓臣
关键词 石墨烯纳米片氮掺杂碳纤维电容特性超级电容器
Abstract

The N-doped carbon nanofiber coated graphene nanosheets (NFGNs) were designed and constructed using EGNs as the skeleton and PPy as the carbon source. The samples were characterized by SEM, XRD, Raman, FTIR, XPS and BET. The results show that the interconnected N-doped carbon nanofibers are uniformly coated on the surface of EGNs. The NFGNs-800 presents high-level nitrogen atom doping of 11.53% and large specific surface area of 477.65 m2·g-1. The capacitance performance test results show that the NFGNs-800 electrode material exhibits high specific capacitance of 323.3 F·g-1 (1.0 A·g-1) and good rate characteristic. NFGNs-800 supercapacitor shows high energy density of 87.1 Wh·kg-1 at power density of 10500 W·kg-1. The specific capacitance of the supercapacitor is 95.9% of the initial specific capacitance and the columbic efficiency still remains above 99% after 10000 constant current charge discharge cycles.

Key wordsgraphene nanosheet    N-doped carbon nanofiber    capacitive performance    supercapacitor
收稿日期: 2021-05-14      出版日期: 2022-02-23
中图分类号:  O646
  TQ152
基金资助:黑龙江省自然科学基金项目(LH2019B030);黑龙江省科学院科学研究基金项目(KY2021GJS01)
通讯作者: 张晓臣     E-mail: 13946165731@163.com
作者简介: 张晓臣(1968-), 男, 研究员级高级工程师, 硕士, 主要从事石墨深加工技术、3D打印金属粉末制备技术、功能复合材料等技术研究及开发工作, 联系地址: 黑龙江省哈尔滨市松北区科技一街99号(150020), E-mail: 13946165731@163.com
引用本文:
阚侃, 王珏, 付东, 郑明明, 张晓臣. 氮掺杂碳纤维包覆石墨烯纳米片的构建及电容特性[J]. 材料工程, 2022, 50(2): 94-102.
Kan KAN, Jue WANG, Dong FU, Mingming ZHENG, Xiaochen ZHANG. Construction and capacitive performance of N-doped carbon nanofiber coated graphene nanosheets. Journal of Materials Engineering, 2022, 50(2): 94-102.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000461      或      http://jme.biam.ac.cn/CN/Y2022/V50/I2/94
Fig.1  EGNs(a)和PPy/EGNs前驱体(b), (c)样品的SEM图
Fig.2  NFGNs-750(a),NFGNs-800(b)和NFGNs-850(c)样品的SEM图

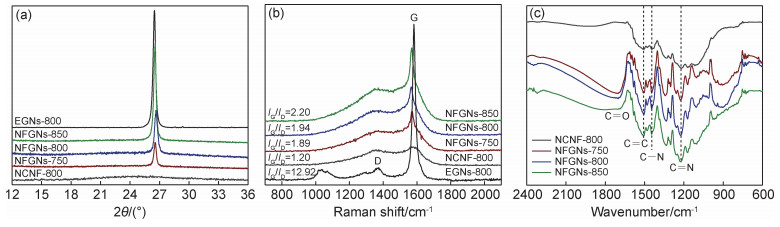

Fig.3  样品的XRD谱图(a), Raman谱图(b)和FTIR谱图(c)
Fig.4  NFGNs-800的XPS谱图(a)全谱谱图;(b)N1s谱图;(c)C1s谱图;(d)O1s谱图
Sample Atom fraction/%
C1s N1s O1s
NFGNs-750 83.87 12.37 3.76
NFGNs-800 85.46 11.53 3.01
NFGNs-850 87.13 10.05 2.82
Table 1  NFGNs-750, NFGNs-800和NFGNs-850样品的元素含量
Fig.5  NFGNs-750, NFGNs-800, NFGNs-850, NCNF-800和EGNs-800的N2吸附-脱附曲线
Fig.6  样品的电极的电容特性
(a)CV曲线; (b)电化学阻抗Nyquist图;(c)GCD曲线;(d)比电容随电流密度变化曲线
Fig.7  NFGNs-800超级电容器的电化学性能
(a)不同扫描速度时的CV测试曲线; (b)电化学阻抗Nyquist图; (c)不同电流密度时的GCD测试曲线; (d)能量密度随功率密度的变化图; (e)循环稳定性和库仑效率随循环次数变化曲线; (f)循环最后10次的GCD曲线
