Please wait a minute...

2222材料工程  2022, Vol. 50 Issue (9): 127-136    DOI: 10.11868/j.issn.1001-4381.2022.000105
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
Ru对第四代镍基单晶高温合金DD22长期时效组织演化的影响
赵云松1, 杨昭2, 陈瑞志3, 张剑1, 骆宇时1, 刘丽荣3,*()
1 中国航发北京航空材料研究院 先进高温结构材料重点实验室, 北京 100095
2 陆装驻北京地区航空军代表室, 北京 100041
3 沈阳工业大学 材料科学与工程学院, 沈阳 110870
Effect of Ru on microstructure evolution of the fourth generation nickel-based single crystal superalloy DD22 during long-term aging
Yunsong ZHAO1, Zhao YANG2, Ruizhi CHEN3, Jian ZHANG1, Yushi LUO1, Lirong LIU3,*()
1 Science and Technology on Advanced High Temperature Structural Materials Laboratory, AECC Beijing Institute of Aeronautical Materials, Beijing 100095, China
2 Aviation Military Representative Office of Army Equipment Department in Beijing, Beijing 100041, China
3 School of Materials Science and Engineering, Shenyang University of Technology, Shenyang 110870, China
全文: PDF(1378 KB)   HTML ( 1 )
输出: BibTeX | EndNote (RIS)
摘要

利用透射电镜和场发射扫描电镜研究了两种不同Ru含量(3%和5%,质量分数)的第四代镍基单晶高温合金DD22在1130 ℃长期时效过程中γ′相形貌演化、TCP相析出和界面位错网的演化情况。研究结果表明:在完全热处理后5Ru合金比3Ru合金的γ′相尺寸更小,形状更规则,γ/γ′相界面的错配度更大,高Ru含量使合金Re,Mo等元素出现反分配现象;5Ru合金在1130 ℃长期时效过程中γ′相粗化速率、溶解速率和形筏速率均低于3Ru合金;5Ru合金在长期时效1000 h后仍没有TCP相析出,而3Ru合金在时效50 h后便析出TCP相,随着长期时效时间延长,TCP相数量增多,尺寸增大;与3Ru合金相比,长期时效1000 h后5Ru合金γ′/γ界面位错网更加致密和规则;综上所述,Ru的元素反分配作用和低的扩散系数使5Ru合金比3Ru合金表现出更高的组织稳定性。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
赵云松
杨昭
陈瑞志
张剑
骆宇时
刘丽荣
关键词 DD22镍基单晶高温合金Ru含量长期时效位错网组织稳定性
Abstract

The morphological evolution of γ′ phase, the precipitation of TCP phases and the evolution of the interfacial dislocation networks in DD22 nickel-based single crystal superalloys with different Ru contents (3% and 5%, mass fraction) were investigated by transmission electron microscopy and field emission scanning electron microscopy during long-term aging at 1130 ℃. The results show that γ′ phase of 5Ru alloy are smaller in size and more regular in shape than that of 3Ru alloy. The mismatch of γ/γ′ phases is larger in 5Ru alloy, and the high content of Ru causes the reverse distribution of elements such as Re and Mo. During long-term aging at 1130 ℃, the coarsening rate, dissolution rate and rafting rate of γ′ phase in 5Ru alloy are lower than those of 3Ru alloy. There is still no TCP phase precipitation in 5Ru alloy after long-term aging for 1000 h, while a small amount of TCP phase is precipitated in 3Ru alloy after long-term aging for 50 h. With the prolongation of long-term aging time, the number and size of TCP phases both increase. Compared with 3Ru alloy, the interfacial dislocation networks of 5Ru alloy are denser and more regular after long-term aging for 1000 h. Above all, the reverse distribution of elements and low diffusion coefficient of Ru make 5Ru alloy exhibit higher microstructural stability than 3Ru alloy.

Key wordsDD22 nickel-based single crystal superalloy    Ru content    long-term aging    dislocation networks    microstructural stability
收稿日期: 2022-02-15      出版日期: 2022-09-20
中图分类号:  TG132.3
基金资助:国家自然科学基金项目(52001297)
通讯作者: 刘丽荣     E-mail: lrliu@sut.edu.cn
作者简介: 刘丽荣(1976—),女,教授,博士,研究方向为单晶高温合金的组织与性能控制,联系地址:沈阳市经济开发区沈辽西路111号沈阳工业大学材料科学与工程学院(110870),E-mail: lrliu@sut.edu.cn
引用本文:
赵云松, 杨昭, 陈瑞志, 张剑, 骆宇时, 刘丽荣. Ru对第四代镍基单晶高温合金DD22长期时效组织演化的影响[J]. 材料工程, 2022, 50(9): 127-136.
Yunsong ZHAO, Zhao YANG, Ruizhi CHEN, Jian ZHANG, Yushi LUO, Lirong LIU. Effect of Ru on microstructure evolution of the fourth generation nickel-based single crystal superalloy DD22 during long-term aging. Journal of Materials Engineering, 2022, 50(9): 127-136.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2022.000105      或      http://jme.biam.ac.cn/CN/Y2022/V50/I9/127
Alloy Co Cr Mo W Al Ta Re Ru Hf Ni
3Ru 9.0 4.0 1.5 7.0 6.0 7.0 5.0 3.0 0.2 Bal
5Ru 9.0 4.0 1.5 7.0 6.0 7.0 5.0 5.0 0.2 Bal
Table 1  3Ru和5Ru单晶高温合金的名义成分(质量分数/%)
Fig.1  3Ru和5Ru合金铸态(1)及完全热处理态(2)的OM像
(a)3Ru合金;(b)5Ru合金
Fig.2  两种合金完全热处理后的γ′相形貌
(a)3Ru合金;(b)5Ru合金
Alloy Region Co Cr Mo W Al Ta Re Ru Hf Ni
3Ru γ 12.68 6.09 1.38 2.58 7.65 1.35 2.65 2.65 0.08 Bal
γ 5.42 1.93 0.72 2.37 17.16 3.53 0.27 0.27 0.06 Bal
ki 2.34 3.16 1.92 1.09 0.45 0.38 9.7 2.18 1.35 Bal
5Ru γ 11.32 5.35 1.35 2.53 8.48 1.47 2.52 3.35 0.08 57.69
γ 6.42 2.52 0.82 2.46 16.69 3.43 0.41 1.97 0.07 69.52
ki 1.76 2.12 1.64 1.03 0.51 0.43 6.15 1.70 1.09 0.82
Table 2  透射电镜能谱测量的γγ′两相成分(原子分数/%)
Alloy aγ/nm aγ/nm δ/%
3Ru 0.35986 0.35872 -0.32
5Ru 0.360161 0.35871 -0.40
Table 3  两种合金的晶格常数和γ/γ′相错配度
Fig.3  3Ru合金1130 ℃长期时效不同时间后微观组织
(a)50 h; (b)100 h; (c)200 h; (d)1000 h
Fig.4  5Ru合金1130 ℃长期时效不同时间后微观组织
(a)50 h; (b)100 h; (c)200 h; (d)1000 h
Fig.5  3Ru和5Ru合金1130 ℃长期时效不同时间后的γ′相平均尺寸(a)和体积分数(b)统计图

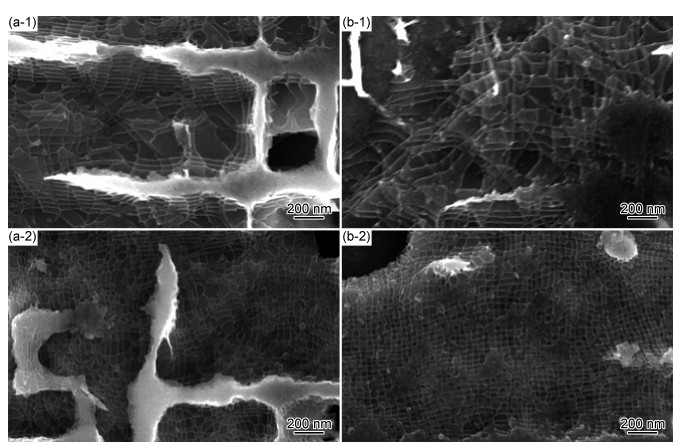

Fig.6  3Ru(a)和5Ru(b)合金1130 ℃长期时效100 h(1)和1000 h(2)后界面位错网形貌
Fig.7  3Ru和5Ru合金1130 ℃长期时效不同时间后TCP相析出情况
(a)3Ru合金/50 h;(b)3Ru合金/200 h;(c)3Ru合金/500 h;(d)5Ru合金/1000 h
Fig.8  3Ru合金在1130 ℃长期时效200 h后析出TCP相的形貌(a)及选区电子衍射斑点(b)
Element D0i, Ni/(m2·s-1) Qi, Ni/(kJ·mol-1) Element D0i, Ni/(m2·s-1) Qi, Ni/(kJ·mol-1)
Ni 2.26×10-4 287 Mo 1.15×10-4 281.3
Cr 5.20×10-4 289 Re 8.20×10-7 255
Co 7.50×10-5 285.1 Ru 2.48×10-4 304.4
W 8.00×10-6 264 Hf 1.80×10-4 287
Table 4  不同溶质原子在Ni中的指前因子和扩散激活能[19]
1 张卫国, 刘林, 赵新宝, 等. 定向凝固高温合金的研究进展[J]. 铸造, 2009, 58 (1): 1- 6.
1 ZHANG W G , LIU L , ZHAO X B , et al. Progress in directionally solidified superalloys[J]. Foundry, 2009, 58 (1): 1- 6.
2 CHEN J Y , FENG Q , SUN Z Q . Topologically close-packed phase promotion in a Ru-containing single crystal superalloy[J]. Scripta Materialia, 2010, 63 (8): 795- 798.
doi: 10.1016/j.scriptamat.2010.06.019
3 张琰斌, 刘林, 黄太文, 等. 一种含硼第三代镍基单晶高温合金的初熔及固溶处理[J]. 稀有金属材料与工程, 2017, 46 (10): 3105- 3110.
3 ZHANG Y B , LIU L , HUANG T W , et al. Incipient melting and solution heat treatment of a boron-bearing third generation single crystal nickel base superalloy[J]. Rare Metal Materials and Engineering, 2017, 46 (10): 3105- 3110.
4 EPISHIN A , BRUCKNER U , PORTELL P D , et al. Influence of small rhenium additions on the lattice spacing of nickel solid solution[J]. Scripta Materialia, 2003, (48): 455- 459.
5 DUBIEL B , INDYKA P , KALEMBA-REC I , et al. The influence of high temperature annealing and creep on the microstructure and chemical element distribution in the γ, γ' and TCP phases in single crystal Ni-base superalloy[J]. Journal of Alloys and Compounds, 2018, (731): 693- 703.
6 ZHAO G Q , TIAN S G , SHU D L , et al. Influence of Ru on creep behavior and concentration distribution of Re-containing Ni-based single crystal superalloy at high temperature[J]. Materials Research Express, 2020, 7 (6): 066507.
doi: 10.1088/2053-1591/ab9666
7 O'HARA K S, WALSTON W S, ROSS E W, et al. Nickel base superalloy and article: US 5482789[P]. 1996-01-09.
8 REED R C , YEH A C , TIN S , et al. Identification of the partitioning characteristics of ruthenium in single crystal superalloys using atom probe tomography[J]. Scripta Materialia, 2004, 51 (4): 327- 331.
doi: 10.1016/j.scriptamat.2004.04.019
9 陈晶阳, 胡聘聘, 冯强, 等. Ru对镍基单晶热暴露组织演变及持久性能的研究[J]. 稀有金属材料与工程, 2011, 40 (12): 2111- 2116.
9 CHEN J Y , HU P P , FENG Q , et al. Effects of Ru on microstructural evolution during thermal exposure and stress-rupture property of Ni-based single crystal superalloys[J]. Rare Metal Materials and Engineering, 2011, 40 (12): 2111- 2116.
10 ZHANG J X , MURAKUMO T , HARADA H , et al. Dependence of creep strength on the interfacial dislocations in a fourth generation SC superalloy TMS-138[J]. Scripta Materialia, 2003, 48, 287- 293.
doi: 10.1016/S1359-6462(02)00379-2
11 PYCZAK F, DEVRIENT B, MUGHRABI H. The effects of different alloying elements on the thermal expansion coefficients, lattice constants and misfit of nickel-based superalloys investigated by X-ray diffraction[C] // Superalloys 2004. Warrendale, USA: TMS, 2004: 827-836.
12 KABLOV E N, PERTRUSHIN N V. Designing of high-rhenium single crystal Ni-base superalloy for gas turbine blades[C] // Superalloys 2008. Warrendale, USA: TMS, 2008: 901-910.
13 夏鹏成, 禹文芳, 于金江, 等. 长期时效对DZ951合金γ'相的影响[J]. 材料工程, 2007, (12): 8- 11.
doi: 10.3969/j.issn.1001-4381.2007.12.002
13 XIA P C , YU W F , YU J J , et al. Influence of long-term thermal exposure on γ' phase of DZ951 alloy[J]. Journal of Materials Engineering, 2007, (12): 8- 11.
doi: 10.3969/j.issn.1001-4381.2007.12.002
14 BALDAN A . Review progress in Ostwald ripening theories and their applications to the γ'-precipitates in nickel-base superalloys part Ⅱ nickel-base superalloys[J]. Journal of Materials Science, 2002, 37 (12): 2379- 2405.
doi: 10.1023/A:1015408116016
15 SHI Q Y , HUO J J , ZHENG Y R , et al. Influence of Mo and Ru additions on the creep behavior of Ni-based single crystal superalloys at 1100 ℃[J]. Materials Science and Engineering: A, 2018, 725, 148- 159.
doi: 10.1016/j.msea.2018.04.026
16 刘刚, 刘林, 张胜霞, 等. Re和Ru对镍基单晶高温合金组织偏析的影响[J]. 金属学报, 2012, 48 (7): 845- 852.
16 LIU G , LIU L , ZHANG S X , et al. Effects of Re and Ru on microstructure and segregation of Ni-based single-crystal superalloys[J]. Acta Metallurgica Sinica, 2012, 48 (7): 845- 852.
17 黄太文, 卢晶, 许瑶, 等. Re和Ta对抗热腐蚀单晶高温合金900 ℃长期时效组织稳定性的影响[J]. 金属学报, 2019, 55 (11): 1427- 1436.
doi: 10.11900/0412.1961.2019.00091
17 HUANG T W , LU J , XU X , et al. Effects of rhenium and tantalum on microstructural stability of hot-corrosion resistant single crystal superalloys aged at 900 ℃[J]. Acta Metallurgica Sinica, 2019, 55 (11): 1427- 1436.
doi: 10.11900/0412.1961.2019.00091
18 WANG T , CHEN L Q , LIU Z K . First-principles calculations and phenomenological modeling of lattice misfit in Ni-base superalloys[J]. Materials Science and Engineering: A, 2006, 431 (1/2): 196- 200.
19 HE C , HUANG T , YANG W , et al. Different roles of stacking fault energy and diffusivity in the creep performance of nickel-based single-crystal superalloys[J]. Materials Research Express, 2021, (8): 036510.
20 霍嘉杰. Co、Cr、Mo、Ru对第四代镍基单晶TCP相演变及950 ℃蠕变行为影响的研究[D]. 北京: 北京科技大学, 2018.
20 HUO J J. Effect of Co, Cr, Mo, Ru additions on TCP phase evolution and creep behavior at 950 ℃ in 4th generation Ni-base single crystal superalloys[D]. Beijing: University of Science and Technology Beijing, 2018.
21 MASOUMI F , JAHAZI M , SHAHRIARI D , et al. Coarsening and dissolution of γ' precipitates during solution treatment of AD730 Ni-based superalloy: mechanisms and kinetics models[J]. Journal of Alloys and Compounds, 2016, (658): 981- 995.
22 GIRAUD R , HERVIER Z , CORMIER J , et al. Strain effect on the γ' dissolution at high temperatures of a nickel-based single crystal superalloy[J]. Metallurgical and Materials Transactions A, 2012, (44): 131- 146.
23 石倩颖. 多组元作用对第四代镍基单晶高温合金组织和高温低应力蠕变行为的影响[D]. 北京: 北京科技大学, 2015.
23 SHI Q Y. Effects of multiple alloying elements on microstructure and high-temperature low-stress creep behavior in fourth generation Ni-based single crystal superalloys[D]. Beijing: University of Science and Technology Beijing, 2015.
24 TAN X , LIU J , JIN T , et al. Effect of ruthenium on precipitation behavior of the topologically close-packed phase in a single-crystal Ni-based superalloy during high-temperature exposure[J]. Metallurgical and Materials Transactions A, 2012, 43 (10): 3608- 3614.
doi: 10.1007/s11661-012-1163-z
25 SATO A , HARADA H , YOKOKAWA T , et al. The effects of ruthenium on the phase stability of fourth generation Ni-base single crystal superalloys[J]. Scripta Materialia, 2006, 54 (9): 1679- 1684.
doi: 10.1016/j.scriptamat.2006.01.003
26 GAO Q , LIU L R , TANG X H , et al. Evolution of interfacial dislocation networks during long term thermal aging in Ni-based single crystal superalloy DD5[J]. China Foundry, 2019, 16 (1): 14- 22.
doi: 10.1007/s41230-019-8113-y
27 曹凯莉, 杨文超, 屈鹏飞, 等. Ru对镍基单晶高温合金凝固特性、TCP相析出及蠕变性能影响的研究进展[J]. 材料工程, 2022, 50 (1): 80- 92.
27 CAO K L , YANG W C , QU P F , et al. Research progress in effect of Ru on solidification characteristics, precipitation of topologically close-packed phases and creep property of nickel-based single crystal superalloy[J]. Journal of Materials Engineering, 2022, 50 (1): 80- 92.
[1] 刘维维, 刘世忠, 李影, 李嘉荣. 长期时效对DD6单晶高温合金组织和力学性能的影响[J]. 材料工程, 2021, 49(6): 94-99.
[2] 党莹樱, 赵新宝, 尹宏飞, 鲁金涛, 袁勇, 杨珍, 谷月峰. Inconel 740H合金750℃长期时效后的组织稳定性[J]. 材料工程, 2016, 44(9): 58-62.
[3] 金海鹏, 李嘉荣. 第二代单晶高温合金DD6长期时效后的拉伸性能[J]. 材料工程, 2007, 0(3): 22-23,52.
[4] 夏鹏成, 禹文芳, 于金江, 孙晓峰, 管恒荣, 胡壮麒. 长期时效对DZ951合金γ′相的影响[J]. 材料工程, 2007, 0(12): 8-11.
[5] 刘丽荣, 金涛, 孙晓峰, 管恒荣, 胡壮麒. 钛含量对一种镍基单晶高温合金长期时效后的组织影响[J]. 材料工程, 2006, 0(9): 14-16,19.
[6] 任英磊, 金涛, 管恒荣, 胡壮麒. 一种镍基单晶合金高温长期时效后的组织与力学性能[J]. 材料工程, 2004, 0(2): 14-17.
[7] 王改莲, 吴翠微, 董建新, 谢锡善. IN718(GH169)合金中α-Cr析出相的研究进展[J]. 材料工程, 2001, 0(6): 44-47.
[8] 周安利, 刘泽尧, 叶国胜. 长期时效对DD4单晶高温合金组织稳定性的影响[J]. 材料工程, 1997, 0(11): 9-11.
[9] 叶武俊, 冯涤, 韩光伟, 骆合力, 陈蓓京. Ni3Al基合金中碳化物的析出[J]. 材料工程, 1994, 0(2): 4-5.
Viewed
Full text


Abstract

Cited

  Shared
  Discussed
地址:北京81信箱44分箱 邮政编码: 100095
电话:010-62496276 E-mail:matereng@biam.ac.cn
本系统由北京玛格泰克科技发展有限公司设计开发 技术支持:support@magtech.com.cn
