NiTi基形状记忆合金弹热效应及其应用研究进展

doi:10.11868/j.issn.1001-4381.2020.000780

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(7403 KB)

HTML ( 0 )
输出: BibTeX | EndNote (RIS)

摘要

NiTi合金作为性能最优异的形状记忆合金之一，已经广泛应用于航空航天、电子、建筑、生物医学等领域。近年来，NiTi基合金极佳的力学性能、巨大的弹热效应和良好的机械加工性使其在弹热制冷领域引起了广泛关注。然而，传统NiTi二元合金超弹性应力滞后大，超弹性和弹热效应循环稳定性差，达不到实际应用所需的长期服役要求。本文介绍了NiTi基合金的弹热效应研究进展，从掺杂合金元素、热机械处理、改变制备方法等角度综述了近几年NiTi基合金弹热效应改进优化的研究进展，同时本文也简要介绍了已经开发的基于NiTi基合金的弹热装置或原型机。但是目前NiTi基合金弹热材料的研究和原型机的开发仍处于实验阶段，实现其商业化应用需要进一步深入研究和优化，未来前者研究重点将集中在材料小型化、合金化或特殊处理及改变循环方式等方面，后者也将从提高热量传输效率、加强热量交换、减小摩擦等损耗、改进机械负载和循环模式等方面不断优化和完善。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	朱雪洁
	钟诗江
	杨晓霞
	张学习
	钱明芳
	耿林

关键词 ： NiTi基合金, 弹热效应, 固体制冷, R相变, 超弹性, 循环稳定性

Abstract：

NiTi-based shape memory alloys (SMAs) are one of the SMAs with most outstanding properties, and have been widely applied in aviation, space, electronics, construction, biomedicine and other fields. In recent years, the elastocaloric refrigeration based on elastocaloric effect (eCE) of NiTi alloys has attracted increasing attentions since their excellent mechanical properties, huge elastocaloric strength and good machinability. However, conventional binary NiTi alloys cannot meet the requirements of long-life service since their large superelastic stress hysteresis and poor cyclic stability of superelasticity and eCE. In this paper, the research progress of eCE for NiTi-based alloys was reviewed. The effect of doping alloying element, thermomechanical treatment and novel processing techniques on eCE of NiTi-based alloys were surnmarized. In addition, the developed elastocaloric devices or prototypes based on NiTi-based alloys were also briefly introduced. However, the current researches on NiTi-based elastocaloric materials and the development of prototypes are still in the experimental stage. To realize their commercial application requires further in-depth research and optimization. In the future, the research priorities for the former will concentrate on material miniaturization, alloying or applying special treatment as well as changing circulation methods and so on. On the other hand, the research priorities for the latter will focus on improving heat transfer efficiency, strengthening heat exchange, reducing friction and other losses, and improving mechanical loadings as well as circulation modes.

Key words： NiTi-based alloys elastocaloric effect (eCE) solid-state refrigeration R phase transition superelasticity cycling stability

收稿日期: 2020-08-19 出版日期: 2021-03-20

中图分类号:

TG139⁺6

基金资助:国家自然科学基金项目(51701052)

通讯作者: 张学习 E-mail: xxzhang@hit.edu.cn

作者简介: 张学习(1975-), 男, 教授, 博士, 研究方向: 形状记忆合金磁热及弹热性能研究, 联系地址: 黑龙江省哈尔滨市西大直街92号哈尔滨工业大学材料科学与工程学院(150001), E-mail: xxzhang@hit.edu.cn

引用本文:

朱雪洁, 钟诗江, 杨晓霞, 张学习, 钱明芳, 耿林. NiTi基形状记忆合金弹热效应及其应用研究进展[J]. 材料工程, 2021, 49(3): 1-13.
Xue-jie ZHU, Shi-jiang ZHONG, Xiao-xia YANG, Xue-xi ZHANG, Ming-fang QIAN, Lin GENG. Research progress in elastocaloric effect and its application of NiTi-based shape memory alloys. Journal of Materials Engineering, 2021, 49(3): 1-13.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000780 或 http://jme.biam.ac.cn/CN/Y2021/V49/I3/1

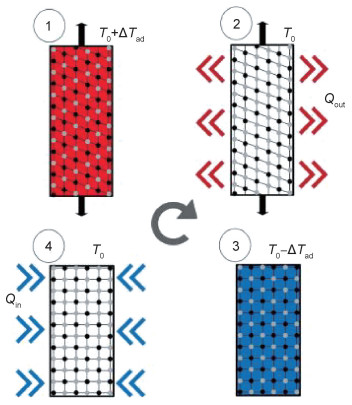

Fig.1 形状记忆合金弹热效应示意图^[25]

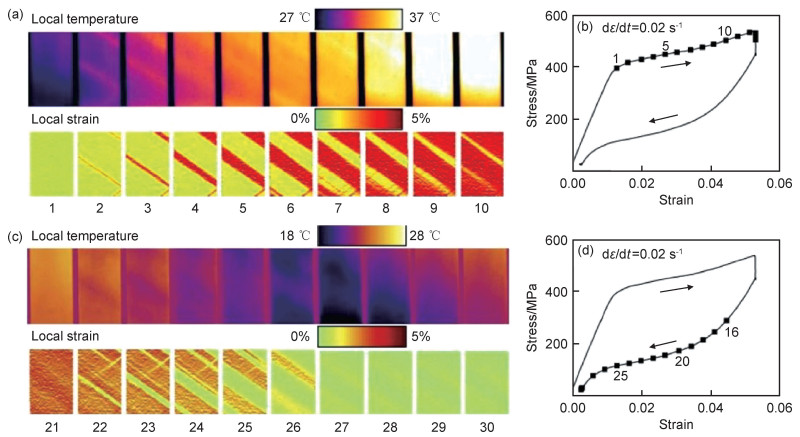

Fig.2 Ni_50.4Ti_49.6合金薄膜在0.02 s^-1应变速率变形过程中的温度和应变分布图以及超弹性曲线^[33] (a)加载过程温度和应变分布(数字对应于(b)图)；(b)包括加载图像采集点的应力-应变曲线；(c)卸载过程温度和应变分布(数字对应于(d)图)；(d)包括卸载图像采集点的应力-应变曲线

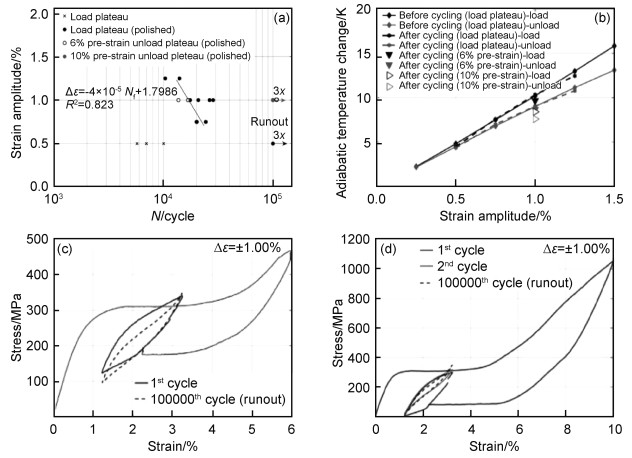

Fig.3 Ni_50.9Ti_49.1合金薄板的弹热性能^[42] (a)不同循环条件下的疲劳寿命；(b)不同机械循环条件下的绝热温变；(c)6%预应变、1%应变振幅下循环应力-应变曲线；(d)10%预应变、1%应变振幅下循环应力-应变曲线

Fig.4 纳米沉淀相诱发的应变玻璃转变Ni_51.3Ti_48.7合金等温熵变随温度变化曲线(插图为应变玻璃转变时产生的等温熵变峰)^[48]

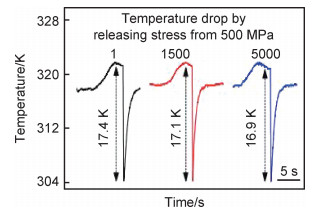

Fig.5 纳米晶Ti₅₀Ni₄₄Cu₅Al₁合金不同循环次数的绝热温变值^[8]

Fig.6 Ti_52.6Ni_47.4合金不同应力下B19′相变和R相变最大可逆熵^[26]

Material	ρ/(kg·m^-3)	c/(J·kg^-1·K^-1)	M_s/K	ε/%	ΔS_t/(J·kg^-1·K^-1)	(dT/dσ)/(K·MPa^-1)	Δσ/MPa	ΔS_iso/(J·kg^-1·K^-1)	ΔT_adi/K	Ref
Cu_68.1Zn_15.8Al_16.1(SC)	7710	432	234	8	23.7	0.50	143	20.7		[3]
Cu₆₈Zn₁₆Al₁₆(bulk)	7710	430	205	7.1	17.9	0.51	250		-6— -7	[4]
Cu_71.5Al_17.5Mn₁₁(bulk)	7400	455	239	9	25	0.54	200		-12.8	[5]
Fe₄₉Rh₅₁(bulk)	9800	470	316	0.3	13	-0.02	529		-5.7	[9]
Fe_68.8Pd_31.2(SC)^a	8900	400	250	2		1	200		-3	[10]
Ni_45.7Mn_36.6In_13.3Co_5.1(bulk)	8100	462	284	1	21		100		+3.5/-2.5	[12]
Ni₅₄Fe₁₉Ga₂₇(bulk)	8450	470	280	2.2	10.5		130		-5	[13]
Ni_43.5Co_6.5Mn₃₉Sn₁₁(bulk)	8065	500	260	4	13.5	0.21	310	11.1		[14]
Ni_50.8Ti_49.2(bulk)^a	6500	424	222	4	63	0.11	700	37	+18/-11	[40]
Ni_51.3Ti_48.7(bulk)^a	6500	550	220	8			300	26		[48]
Ni₅₀Ti_45.3V_4.7(bulk)^a	6500	510	278	4.3	32		300		-12	[52]
Ni₄₅Ti_47.25Cu₅V_2.75(bulk)^a	6500	460	295	5					-18.4	[27]
Ti₅₀Ni₄₄Cu₅Al₁(bulk)^b	6500	550	300	4.9	33.7	0.19	500	37.5	-17.4	[8]
Ti₅₀Ni₄₈Fe₂(bulk)^c	6500	480	283	0.5	21	0.04	200		-2.7	[59]
Ni₅₀Ti₅₀(wire)^a	6500	550		8.5	40		500		+25.5/-17	[6]
Ni_47.4Ti_52.6(wire)^a	6500	550	303	7	60-80	0.2	175	60-70		[26]
Ni_50.5Ti_49.5(wire)^a	6500	550	210	6		0.16	700	65		[7]
Ni_48.9Ti_51.1(wire)^a	6500	450	295	6		0.13	700	35	+25/-21	[38]
Ni_50.4Ti_49.6(wire)^a	6500	550		6.5		0.18	750	43		[39]
Ni_47.4Ti_52.6(wire)^c	6500	550	310	0.5	17.8	0.05	160	13		[26]
Ni_50.5Ti_49.5(wire)^c	6500	550	318	0.6	23.4	0.05	340	21		[46]
Ni_50.8Ti_49.2(wire)^c	6500	470	319	0.7	12.2		300		-2	[45]
Ni_50.4Ti_49.6(film)^a	6500	550		7.5			400		9	[41]
Ni_50.4Ti_49.6(film)^a	6500	450	250	5.3	76	0.11	500		+17/-16	[33]
Ti_54.9Ni_32.5Cu_12.6(film)^b	6500	837	318	1.7	52		380		+4.1/-6.1	[41]
Ti_54.7Ni_30.6Cu_12.3Co_2.4(film)^b	6500	420	263	1.8		0.10	450	40	-12	[34]
Ni_50.5Ti_49.5(foil)^a	6500	550	281	8	35		1300		+58	[31]
Ti_50.5Ni_49.1Fe_0.4(foil)^a	6500	500		4.2	80		520		+22/-17	[35]
Ni_50.8Ti_49.2(sheet)^a	6500	550	314	5	37	0.17	700		-24	[47]
Ni_50.4Ti_49.6(SC)^a	6500	590	218			0.12	500	51	-14.2	[28]
Ni_50.8Ti_49.2(SC)^a	7600	590	218	6.2	51.7	0.14	450		-18.2	[29]
Ni_50.8Ti_49.2(AM)^a	6500	550	280	9.2			1400		-18.6	[60]
Ni_46.6Ti_53.4(AM)^d	6500	550	334	5	45		1200		+9.5/-7.5	[61]

Table 1 形状记忆合金的弹热效应

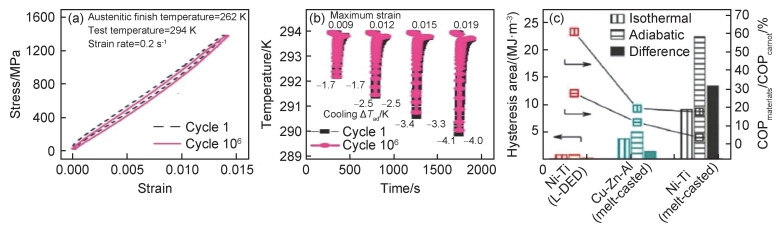

Fig.7 激光定向能量沉积(L-DED)技术制备的Ni_51.5Ti_48.5/Ni₃Ti纳米复合材料10⁶次机械循环前后超弹性和弹热性能^[64] (a)压缩应力-应变曲线；(b)绝热温变；(c)不同材料的等温和绝热加卸载过程滞后环面积和COP_materials/COP_carnot

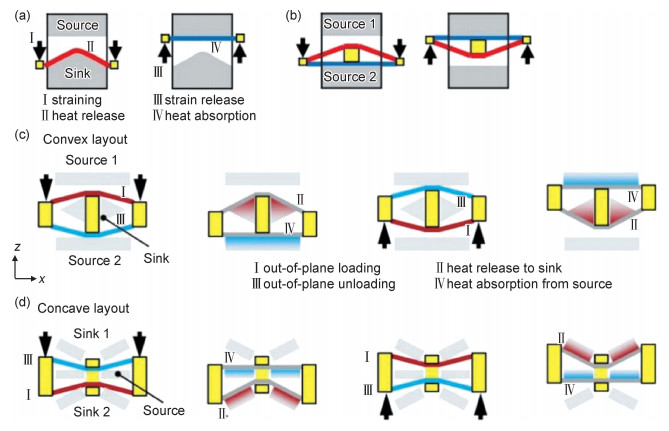

Fig.8 基于Ti_50.5Ni_49.1Fe_0.4合金桥的热泵结构原理图(a)单桥结构；(b)双桥结构^[72]；(c)改良后的凸双桥结构；(d)改良后的凹双桥结构^[73]

1	MOYA X , KAR-NARAYAN S , MATHUR N D . Caloric materials near ferroic phase transitions[J]. Nature Materials, 2014, 13, 439- 450. doi: 10.1038/nmat3951
2	GOETZLER W, ZOGG R, YOUNG J, et al. Energy savings potential and RD&D opportunities for non-vapor-compression HVAC technologies[R]. United States: EERE Publication and Product Library, 2014.
3	BONNOT E , ROMERO R , MAÑOA L , et al. Elastocaloric effect associated with the martensitic transition in shape-memory alloys[J]. Physical Review Letters, 2008, 100 (12): 125901. doi: 10.1103/PhysRevLett.100.125901
4	MANOSA L , JARQUE-FARNOS S , VIVES E , et al. Large temperature span and giant refrigerant capacity in elastocaloric Cu-Zn-Al shape memory alloys[J]. Applied Physics Letters, 2013, 103, 211904. doi: 10.1063/1.4832339
5	XU S , HUANG H Y , XIE J X , et al. Giant elastocaloric effect covering wide temperature range in columnar-grained Cu_71.5Al_17.5Mn₁₁shape memory alloy[J]. APL Materials, 2016, 4, 106106. doi: 10.1063/1.4964621
6	CUI J , WU Y M , MUEHLBAUER J , et al. Demonstration of high efficiency elastocaloric cooling with large ΔT using NiTi wires[J]. Applied Physics Letters, 2012, 101, 073904. doi: 10.1063/1.4746257
7	ZHU X J , ZHANG X X , QIAN M F , et al. Elastocaloric effects related to B2↔R and B2↔B19' martensite transformations in nanocrystalline Ni_50.5Ti_49.5 microwires[J]. Journal of Alloys and Compouds, 2019, 792, 780- 788. doi: 10.1016/j.jallcom.2019.04.087
8	CHEN H , XIAO F , LIANG X , et al. Stable and large superelasticity and elastocaloric effect in nanocrystalline Ti-44 Ni-5Cu-1Al (at%) alloy[J]. Acta Materialia, 2018, 158, 330- 339. doi: 10.1016/j.actamat.2018.08.003
9	NIKITIN S A , MYALIKGULYEV G , ANNAORAZOV M P , et al. Giant elastocaloric effect in FeRh alloy[J]. Physics Letters A, 1992, 171 (3/4): 234- 236.
10	XIAO F , FUKUDA T , KAKESHITA T . Significant elastocaloric effect in a Fe-31.2Pd (at.%) single crystal[J]. Applied Physics Letters, 2013, 102, 161914. doi: 10.1063/1.4803168
11	XIAO F , FUKUDA T , KAKESHITA T . Elastocaloric effect by a weak first-order transformation associated with lattice softening in an Fe-31.2Pd (at.%) alloy[J]. Acta Materialia, 2015, 87, 8- 14. doi: 10.1016/j.actamat.2015.01.004
12	LU B F , XIAO F , YAN A , et al. Elastocaloric effect in a textured polycrystalline Ni-Mn-In-Co metamagnetic shape memory alloy[J]. Applied Physics Letters, 2014, 105, 161905. doi: 10.1063/1.4899147
13	XU Y , LU B F , SUN W , et al. Large and reversible elastocaloric effect in dual-phase Ni₅₄Fe₁₉Ga₂₇superelastic alloys[J]. Applied Physics Letters, 2015, 106, 201903. doi: 10.1063/1.4921531
14	YANG Z , CONG D Y , HUANG L , et al. Large elastocaloric effect in a Ni-Co-Mn-Sn magnetic shape memory alloy[J]. Materials & Design, 2016, 92, 932- 936.
15	FRANCO V , BLÁZQUEZ J S , LNGALE B , et al. The magnetocaloric effect and magnetic refrigeration near room temperature: materials and models[J]. Annual Review of Materials Research, 2012, 42, 305- 342. doi: 10.1146/annurev-matsci-062910-100356
16	SMITH A , BAHL C R H , BJØRK R , et al. Materials challenges for high performance magnetocaloric refrigeration devices[J]. Advanced Energy Materials, 2012, 2 (11): 1288- 1318. doi: 10.1002/aenm.201200167
17	VALANT M . Electrocaloric materials for future solid-state refrigeration technologies[J]. Progress in Materials Science, 2012, 57, 980- 1009. doi: 10.1016/j.pmatsci.2012.02.001
18	MAÑOSA L , PLANES A . Materials with giant mechanocaloric effects: cooling by strength[J]. Advanced Materials, 2017, 29 (11): 1603607. doi: 10.1002/adma.201603607
19	CAZORLAR C . Novel mechanocaloric materials for solid-state cooling applications[J]. Applied Physics Review, 2019, 6 (4): 041316. doi: 10.1063/1.5113620
20	BUEHLER W J , GILFRICH J V , WILEY R C . Effect of low temperature phase changes on the mechanical properties of alloys near composition TiNi[J]. Journal of Applied Physics, 1963, 34, 1475. doi: 10.1063/1.1729603
21	ZHANG Y H , MOUMNI Z , ZHU J H , et al. Effect of the amplitude of the training stress on the fatigue lifetime of NiTi shape memory alloys[J]. Scripta Materialia, 2018, 149, 66- 69. doi: 10.1016/j.scriptamat.2018.02.012
22	NEMAT-NASSER S , GUO W G . Superelastic and cyclic response of NiTi SMA at various strain rates and temperatures[J]. Mechanics of Materials, 2006, 38 (5/6): 463- 474.
23	赵连城, 蔡伟, 郑玉峰. 合金的记忆效应与超弹性[M]. 北京: 国防工业出版社, 2002.
23	ZHAO L C , CAI W , ZHENG Y F . Shape memory effect and superelasticity in alloys[M]. Beijing: National Defense Industry Press, 2002.
24	WANG X B , VERLINDEN B , VAN HUMBEEK J . R-phase transformation in NiTi alloys[J]. Materials Science and Technology, 2014, 30 (13): 1517- 1529. doi: 10.1179/1743284714Y.0000000590
25	TUŠEK J , ENGELBRECHT K , MILLÁN-SOLSONA R , et al. The elastocaloric effect: a way to cool efficiently[J]. Advanced Energy Materials, 2015, 5 (13): 1500361. doi: 10.1002/aenm.201500361
26	SOTO-PARRA D , VIVES E , MAÑOSA L , et al. Elastocaloric effect in Ti-Ni shape-memory wires associated with the B2↔B19' and B2↔R structural transitions[J]. Applied Physics Letters, 2016, 108, 071902. doi: 10.1063/1.4942009
27	SCHMIDT M , SCHÜTZE A , SEELECKE S . Elastocaloric cooling processes: the influence of material strain and strain rate on efficiency and temperature span[J]. APL Materials, 2016, 4, 064107. doi: 10.1063/1.4953433
28	PATAKY GARRETT J , ERTEKIN E , SEHITOGLU H . Elastocaloric cooling potential of NiTi, Ni₂FeGa and CoNiAl[J]. Acta Materialia, 2015, 96, 420- 427. doi: 10.1016/j.actamat.2015.06.011
29	WU Y , ERTEKIN E , SEHITOGLU H . Elastocaloric cooling capacity of shape memory alloys-role of deformation temperatures, mechanical cycling, stress hysteresis and inhomogeneity of transformation[J]. Acta Materialia, 2017, 135, 158- 176. doi: 10.1016/j.actamat.2017.06.012
30	QIAN S X , GENG Y L , WANG Y , et al. A review of elastocaloric cooling: materials, cycles and system integrations[J]. International Journal of Refrigeration, 2016, 64, 1- 19. doi: 10.1016/j.ijrefrig.2015.12.001
31	PIECZYSKA E A , TOBUSHI H , KULASINSKI K . Development of transformation bands in TiNi SMA for various stress and strain rates studied by a fast and sensitive infrared camera[J]. Smart Materials and Structures, 2013, 22, 035007. doi: 10.1088/0964-1726/22/3/035007
32	VIVES E , BURROWS S , EDWARDS R S , et al. Temperature contour maps at the strain-induced martensitic transition of a Cu-Zn-Al shape-memory single crystal[J]. Applied Physics Letters, 2011, 98, 011902. doi: 10.1063/1.3533403
33	OSSMER H , LAMBRECHT F , GÜLTIG M , et al. Evolution of temperature profiles in TiNi films for elastocaloric cooling[J]. Acta Materialia, 2014, 81, 9- 20. doi: 10.1016/j.actamat.2014.08.006
34	OSSMER H , CHLUBA C , GÜLTIG M , et al. Local evolution of the elastocaloric effect in TiNi-based films[J]. Shape Memory Superelasticity, 2015, 1, 142- 152. doi: 10.1007/s40830-015-0014-3
35	OSSMER H , MIYAZAKI S , KOHL M . The elastocaloric effect in TiNi-based foils[J]. Materials Today: Proceedings, 2015, 2S, S971- S974.
36	DELVILLE R , MALARD B , PILCH J , et al. Transmission electron microscopy investigation of dislocation slip during superelastic cycling of Ni-Ti wires[J]. International Journal of Plasticity, 2011, 27, 282- 297. doi: 10.1016/j.ijplas.2010.05.005
37	ENGELBRECHT K , TUŠEK J , SANNA S , et al. Effects of surface finish and mechanical training on Ni-Ti sheets for elastocaloric cooling[J]. APL Materials, 2016, 4, 064110. doi: 10.1063/1.4955131
38	TUŠEK J , ENGELBRECHT K , MIKKELSEN L P , et al. Elastocaloric effect of Ni-Ti wire for application in a cooling device[J]. Journal of Applied Physics, 2015, 117, 124901. doi: 10.1063/1.4913878
39	ZHANG X X , QIAN M F , ZHU X J , et al. Elastocaloric effects in ultra-fine grained NiTi microwires processed by cold-drawing[J]. APL Materials, 2018, 6, 036102. doi: 10.1063/1.5021631
40	ZHOU M , LI Y S , ZHANG C , et al. The elastocaloric effect of Ni_50.8Ti_49.2 shape memory alloys[J]. Journal of Physics D: Applied Physics, 2018, 51, 135303. doi: 10.1088/1361-6463/aaafc2
41	BECHTOLD C , CHLUBA C , LIMA DE MIRANDA R , et al. High cyclic stability of the elastocaloric effect in sputtered TiNiCu shape memory films[J]. Applied Physics Letters, 2012, 101, 091903. doi: 10.1063/1.4748307
42	TUŠEK J , ŽEROVNIK A , EBRON M , et al. Elastocaloric effect vs fatigue life: exploring the durability limits of Ni-Ti plates under pre-strain conditions for elastocaloric cooling[J]. Acta Materialia, 2018, 150, 295- 307. doi: 10.1016/j.actamat.2018.03.032
43	FULANOVIC' L , KORUZA J , NOVAK N , et al. Fatigue-less electrocaloric effect in relaxor Pb(Mg_1/3Nb_2/3)O₃ multilayer elements[J]. Journal of the European Ceramic Society, 2017, 37 (15): 5105- 5108. doi: 10.1016/j.jeurceramsoc.2017.06.011
44	KITANOVSKI A, TUSEK J, TOMC U, et al. Magnetocaloric energy conversion: from theory to applications[M]//Magnetocaloric Energy Conversion: From Theory to Applications. Switerland: Springer International Publishing, 2015.
45	LIANG X , XIAO F , JIN M J , et al. Elastocaloric effect induced by the rubber-like behavior of nanocrystalline wires of a Ti-50.8 Ni (at.%) alloy[J]. Scripta Materialia, 2017, 134, 42- 46. doi: 10.1016/j.scriptamat.2017.02.026
46	ZHU X J , ZHANG X X , QIAN M F . Reversible elastocaloric effects with small hysteresis in nanocrystalline Ni-Ti microwires[J]. AIP Advances, 2018, 8 (12): 125002. doi: 10.1063/1.5051760
47	CHEN H , XIAO F , LIANG X , et al. Improvement of the stability of superelasticity and elastocaloric effect of a Ni-rich Ti-Ni alloy by precipitation and grain refinement[J]. Scripta Materialia, 2019, 162, 230- 234. doi: 10.1016/j.scriptamat.2018.11.024
48	TANG Z , WANG Y , LIAO X Q , et al. Stress dependent transforming behaviors and associated functional properties of a nano-precipitates induced strain glass alloy[J]. Journal of Alloys and Compounds, 2015, 622, 622- 627. doi: 10.1016/j.jallcom.2014.10.142
49	FRENZEL J , EGGELER G , QUANDT E , et al. High-performance elastocaloric materials for the engineering of bulk- and micro-cooling devices[J]. MRS Bulletin, 2018, 43 (4): 280- 284. doi: 10.1557/mrs.2018.67
50	FRENZEL J , WIECZOREK A , OPAHLE I , et al. On the effect of alloy composition on martensite start temperatures and latent heats in Ni-Ti-based shape memory alloys[J]. Acta Materialia, 2015, 90, 213- 231. doi: 10.1016/j.actamat.2015.02.029
51	NⅡTSU K , KIMURA Y , XU X , et al. Composition dependences of entropy change and transformation temperatures in Ni-rich Ti-Ni system[J]. Shape Memory and Superelasticity, 2015, 1, 124- 131. doi: 10.1007/s40830-015-0023-2
52	KIM Y , JO M , PARK J , et al. Elastocaloric effect in polycrystalline Ni₅₀Ti_45.3V_4.7shape memory alloy[J]. Scripta Materialia, 2018, 144, 48- 51. doi: 10.1016/j.scriptamat.2017.09.048
53	SCHMIDT M , ULLRICH J , WIECZOREK A , et al. Thermal stabilization of NiTiCuV shape memory alloys: observations during elastocaloric training[J]. Shape Memory and Superelasticity, 2015, 1, 132- 141. doi: 10.1007/s40830-015-0021-4
54	ZARNETTA R , TAKAHASHI R , YOUNG M L , et al. Identification of quaternary shape memory alloys with near-zero thermal hysteresis and unprecedented functional stability[J]. Advanced Functional Materials, 2010, 20, 1917- 1923. doi: 10.1002/adfm.200902336
55	CHLUBA C , OSSMER H , ZAMPONI C , et al. Ultra-low fatigue quaternary TiNi-based films for elastocaloric cooling[J]. Shape Memory and Superelasticity, 2016, 2, 95- 103. doi: 10.1007/s40830-016-0054-3
56	OSSMER H , CHLUBA C , KAUFFMANN-WEISS S , et al. TiNi-based films for elastocaloric microcooling - fatigue life and device performance[J]. APL Materials, 2016, 4, 064102. doi: 10.1063/1.4948271
57	WELSCH F , ULLRICH J , OSSMER H . Numerical simulation and experimental investigation of the elastocaloric cooling effect in sputter-deposited TiNiCuCo thin films[J]. Continuum Mechanics and Thermodynamics, 2018, 30 (1): 53- 68. doi: 10.1007/s00161-017-0582-x
58	WENDLER F , OSSMER H , CHLUBA C , et al. Mesoscale simulation of elastocaloric cooling in SMA films[J]. Acta Materialia, 2017, 136, 105- 117. doi: 10.1016/j.actamat.2017.06.044
59	AALTIO I , FUKUDA T , KAKESHITA T . Elastocaloric cooling and heating using R-phase transformation in hot rolled Ni-Ti-Fe shape memory alloys with 2 and 4 at% Fe content[J]. Journal of Alloys and Compounds, 2019, 780, 930- 936. doi: 10.1016/j.jallcom.2018.11.406
60	HOU H L , SIMSEK E , STASAK D , et al. Elastocaloric cooling of additive manufactured shape memory alloys with large latent heat[J]. Journal of Physics D: Applied Physics, 2017, 50404001.
61	HOU H L , SIMEK E , MA T , et al. Fatigue-resistant high-performance elastocaloric materials made by additive manufacturing[J]. Science, 2019, 366 (6469): 1116- 1121. doi: 10.1126/science.aax7616
62	XIAO F , FUKUDA T , KAKESHITA T . Inverse elastocaloric effect in a Ti-Ni alloy containing aligned coherent particles of Ti₃Ni₄[J]. Scripta Materialia, 2016, 124, 133- 137. doi: 10.1016/j.scriptamat.2016.07.016
63	XIAO F , LIANG X , CHEN H , et al. Orientation dependence of elastocaloric effect in an aged Ni-rich Ti-Ni alloy[J]. Scripta Materialia, 2019, 168, 86- 90. doi: 10.1016/j.scriptamat.2019.04.030
64	WAN X M , FENG Y , XIN X X , et al. Large superelastic recovery and elastocaloric effect in as-deposited additive manufactured Ni_50.8Ti_49.2 alloy[J]. Applied Physics Letters, 2019, 114, 221903. doi: 10.1063/1.5098371
65	AHADI A , KAWASAKI T , HARJO S , et al. Elastocaloric effect at ultra-low temperatures in nanocrystalline shape memory alloys[J]. Acta Materialia, 2019, 165, 109- 117. doi: 10.1016/j.actamat.2018.11.035
66	NⅡTSU K , KIMURA Y , OMORI T , et al. Cryogenic superelasticity with large elastocaloric effect[J]. NPG Asia Materials, 2018, 10 (1): 457. doi: 10.1038/am.2017.213
67	SAYLOR A. 2012 ARPA-E summit technology showcase[EB/OL]. (2012-02-28)[2017-02-01]. http://www.nergy.gov/articles/2012-arpa-e-summit-technology-showcase.
68	HOU H L , CUI J , QIAN S X , et al. Overcoming fatigue through compression for advanced elastocaloric cooling[J]. MRS Bulletin, 2018, 43 (4): 285- 290. doi: 10.1557/mrs.2018.70
69	QIAN S X, WANG Y, GENG Y L, et al. Experimental evaluation of a compressive elastocaloric cooling system[C]//16th International Refrigeration and Air Conditioning Conforence. Purdue, America: Purdue University, 2016.
70	QIAN S X , GENG Y I , WANG Y , et al. Design of a hydraulically driven compressive elastocaloric cooling system[J]. Science and Technology for the Built Environment, 2016, 22, 500- 506. doi: 10.1080/23744731.2016.1171630
71	SCHMIDT M , SCHÜTZE A , SEELECKE S . Scientific test setup for investigation of shape memory alloy based elastocaloric cooling processes[J]. International Journal of Refrigeration, 2015, 54, 88- 97. doi: 10.1016/j.ijrefrig.2015.03.001
72	OSSMER H, MIYAZAKI S, KOHL M. Elastocaloric heat pumping using a shape memory alloy foil device[C]//TRANSDUCERS-2015 18th International Conference on Solid-state Sensors, Actuators and Microsystem. New York: IEEE, 2015: 726-729.
73	OSSMER H , WENDLER F , GUELTIG M , et al. Energy-efficient miniature-scale heat pumping based on shape memory alloys[J]. Smart Materials and Structures, 2016, 25, 085037. doi: 10.1088/0964-1726/25/8/085037
74	BRUEDERLIN F , OSSMER H , WENDLER F , et al. SMA foil-based elastocaloric cooling: from material behavior to device engineering[J]. Journal of Physics D: Applied Physics, 2017, 50, 424003. doi: 10.1088/1361-6463/aa87a2
75	BRUEDERLIN F , BUMKE L , CHLUBA C , et al. Elastocaloric cooling on the miniature scale: a review on materials and device engineering[J]. Energy Technology, 2018, 6, 1588- 1604. doi: 10.1002/ente.201800137
76	TUŠEK J , ENGELBRECHT K , ERIKSEN D , et al. A regenerative elastocaloric heat pump[J]. Nature Energy, 2016, 1, 16134. doi: 10.1038/nenergy.2016.134
77	ENGELBRECHT K , TUŠEK J , ERIKSEN D , et al. A regenerative elastocaloric device: experimental results[J]. Journal of Physics D: Applied Physics, 2017, 50, 424006. doi: 10.1088/1361-6463/aa8656
78	KIRSCH S M , WELSCH F , MICHAELIS N , et al. NiTi-based elastocaloric cooling on the macroscale-from basic concepts to realization[J]. Energy Technology, 2018, 6 (8): 1567- 1587. doi: 10.1002/ente.201800152
