2222材料工程  2021, Vol. 49 Issue (9): 69-78    DOI: 10.11868/j.issn.1001-4381.2020.000376
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
富锂锰基正极材料在不同温度下的极化行为
杨夕馨1,2,3, 常增花1,2, 邵泽超1,2, 吴帅锦1,2, 王仁念1,2, 王建涛1,2,3, 卢世刚1,2,3,*()
1 有研科技集团有限公司 国家动力电池创新中心, 北京 100088
2 国联汽车动力电池研究院有限责任公司, 北京 100088
3 北京有色金属研究总院, 北京 100088
Polarization behavior of lithium-rich manganese-based cathode materials at different temperatures
Xi-xin YANG1,2,3, Zeng-hua CHANG1,2, Ze-chao SHAO1,2, Shuai-jin WU1,2, Ren-nian WANG1,2, Jian-tao WANG1,2,3, Shi-gang LU1,2,3,*()
1 National Power Battery Innovation Center, GRINM Group Corporation Limited, Beijing 100088, China
2 China Automotive Battery Research Institute Co., Ltd., Beijing 100088, China
3 General Research Institute for Nonferrous Metals, Beijing 100088, China
全文: PDF(8054 KB)   HTML ( 2 )
输出: BibTeX | EndNote (RIS)
摘要

富锂锰基正极材料作为极具潜力的下一代锂离子动力电池正极材料,在不同温度下电化学性能表现出很大差异,严重限制了其在实际环境中的应用。采用多种电化学测试表征了富锂锰基材料在5~45℃温度范围内电化学性能的差异,从极化的角度分析了材料性能与温度依赖关系的影响因素。结果表明:富锂锰基材料的充放电容量随着温度的降低而降低,主要源于高电压和低电压区间内氧/锰离子反应随温度降低极化显著增大,造成其贡献的容量显著降低。这主要是因为氧/锰离子本征动力学性能差使电荷转移过程具有较高的表观活化能。此外,氧/锰离子参与电荷补偿反应使材料结构发生较大变化,一方面诱发界面膜成分发生变化,增加了低电压区间界面锂离子传输表观活化能,另一方面造成充放电末期锂离子固相扩散具有较高的表观活化能。因此,改善富锂锰基材料氧/锰离子反应动力学是提高其环境适应性的主要措施。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
杨夕馨
常增花
邵泽超
吴帅锦
王仁念
王建涛
卢世刚
关键词 锂离子电池富锂锰基正极材料电化学性能极化温度依赖性
Abstract

Lithium-rich manganese-based cathode material is a promising next-generation lithium-ion battery cathode material, however, it exhibits significant differences in electrochemical performance at different temperatures, which severely limits the application in practical environments. A variety of electrochemical measures were used to characterize the difference in electrochemical performance of lithium-rich material within the temperature range of 5-45℃. The influencing factors of material properties and temperature dependence were analyzed from the perspective of polarization. The results show that the charge/discharge capacity of lithium-rich material decreases with decreasing temperature, which is mainly due to the significant increase in the polarization of the oxygen/manganese ion reaction in the high-voltage and low-voltage ranges with decreasing temperature, resulting in a severe decrease in its capacity contribution.The significantly increased polarization is mainly caused by the poor intrinsic kinetic performance of oxygen/manganese ions, which leading to high apparent activation energy of the charge transfer process. In addition, the participation of oxygen and manganese ions in the charge compensation reaction changes the structure of the material seriously.It induces changes in the composition of the interface film, which increases the apparent activation energy of lithium ion transmission at the interface in the low voltage interval. Moreover, it causes bulk diffusion of lithium ions at the end of the charge and discharge process having higher apparent activation energy. Therefore, improving the oxygen/manganese ion reaction kinetics of lithium-rich material is the main method to enhance its environmental adaptability.

Key wordslithium ion battery    lithium-rich manganese-based cathode material    electrochemical performance    polarization characteristic    temperature dependence
收稿日期: 2020-04-26      出版日期: 2021-09-17
中图分类号:  TM911
基金资助:国家重点研发计划项目(2016YFB0301305);国家重点研发计划项目(2018YFB0104400);国家自然科学基金项目(U1764255);国家自然科学基金项目(21903067);有研科技集团有限公司青年基金资助项目(QGL20190062)
通讯作者: 卢世刚     E-mail: lusg8867@163.com
作者简介: 卢世刚(1966-), 男, 教授, 博士, 主要从事电化学及其应用的研究, 包括锂离子电池及其材料、燃料电池材料和熔盐电解等, 联系地址: 北京市怀柔区雁栖经济开发区兴科东大街11号北京有色金属研究总院(101400), E-mail: lusg8867@163.com
引用本文:
杨夕馨, 常增花, 邵泽超, 吴帅锦, 王仁念, 王建涛, 卢世刚. 富锂锰基正极材料在不同温度下的极化行为[J]. 材料工程, 2021, 49(9): 69-78.
Xi-xin YANG, Zeng-hua CHANG, Ze-chao SHAO, Shuai-jin WU, Ren-nian WANG, Jian-tao WANG, Shi-gang LU. Polarization behavior of lithium-rich manganese-based cathode materials at different temperatures. Journal of Materials Engineering, 2021, 49(9): 69-78.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000376      或      http://jme.biam.ac.cn/CN/Y2021/V49/I9/69

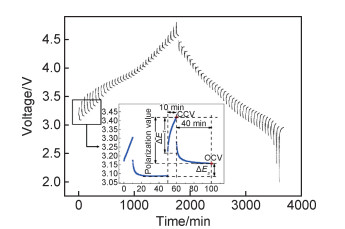

Fig.1  GITT曲线及极化值示意图

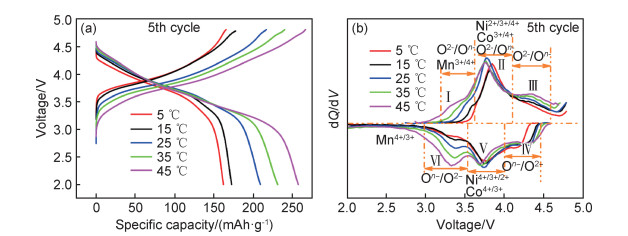

Fig.2  不同温度下的充放电曲线
(a)电压-容量曲线; (b)容量微分曲线

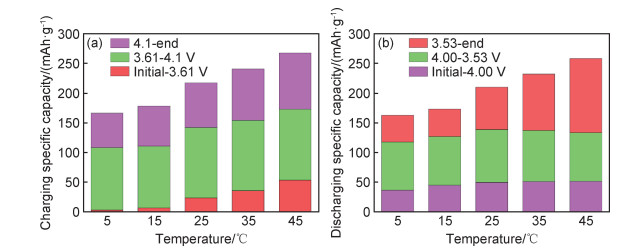

Fig.3  不同温度下充电(a)及放电(b)过程中各电压区间内反应贡献的比容量对比

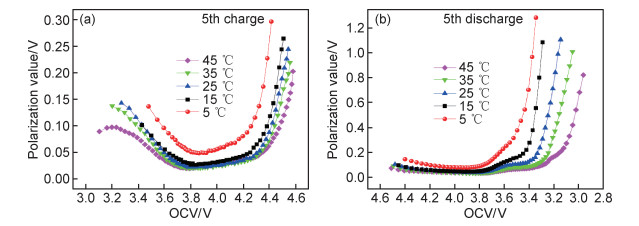

Fig.4  不同温度下充电(a)及放电(b)过程的极化值变化曲线

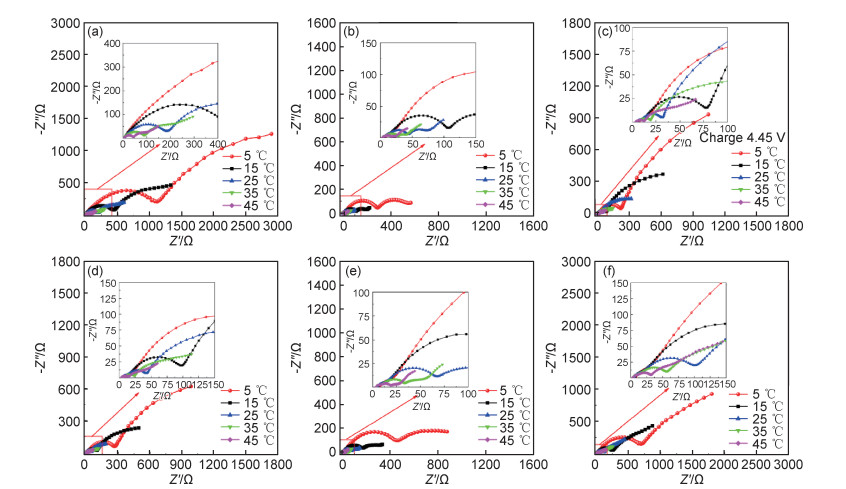

Fig.5  充电和放电过程中不同OCV的扣式电池在不同温度下的电化学阻抗谱
(a)charge 3.41 V; (b)charge 3.75 V; (c)charge 4.45 V; (d)discharge 4.33 V; (e)discharge 3.75 V; (f)discharge 3.39 V

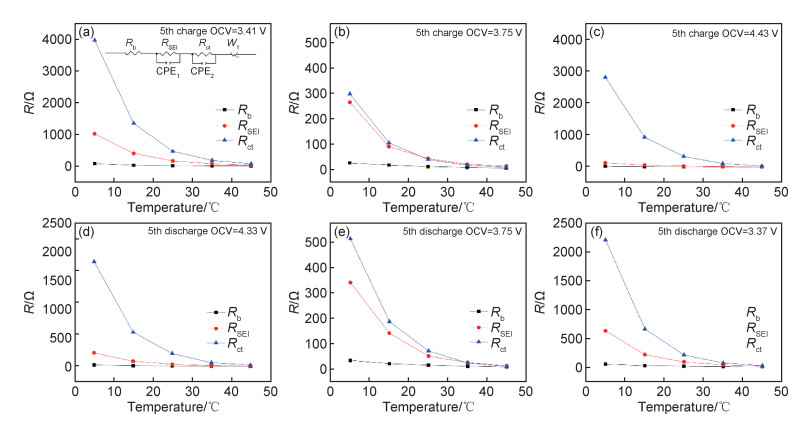

Fig.6  充电和放电过程中在不同OCV下阻抗值随温度的变化
(a)charge OCV=3.41 V; (b)charge OCV=3.75 V; (c)charge OCV=4.43 V; (d)discharge OCV=4.33 V; (e)discharge OCV=3.75 V; (f)discharge OCV=3.37 V

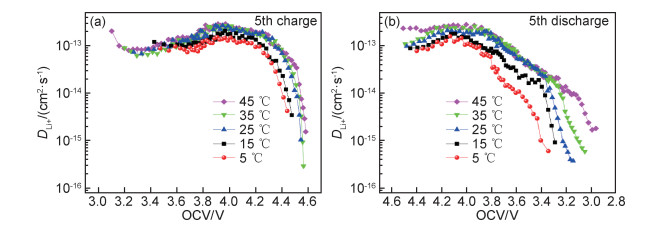

Fig.7  充电(a)及放电(b)过程中不同温度下的锂离子扩散系数变化曲线

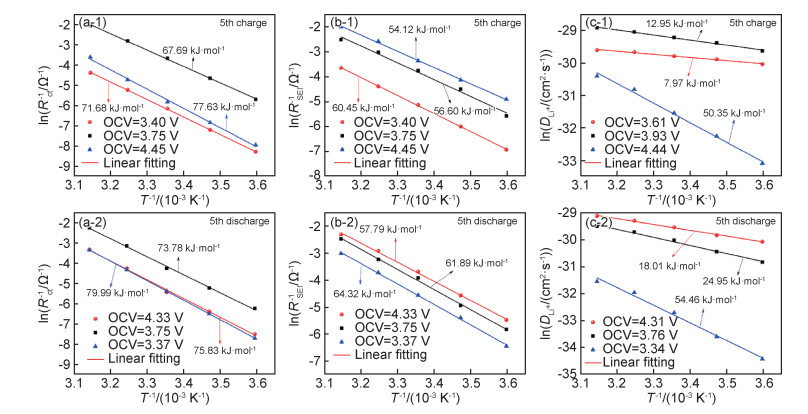

Fig.8  充电(1)和放电(2)过程中不同OCV下不同电极过程的表观活化能
(a)电荷转移过程表观活化能;(b)界面锂离子传输表观活化能;(c)锂离子固相扩散表观活化能

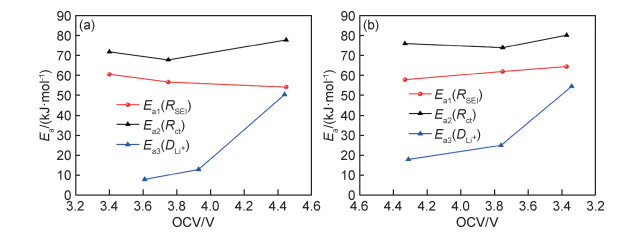

Fig.9  充电(a)及放电(b)过程中各电极过程的表观活化能
