多孔α-Mn2O3的制备及其催化过一硫酸盐降解亚甲基蓝溶液的性能
向小倩, 夏强, 廖小刚, 郑林, 李纲(), 胡学步
重庆理工大学 化学化工学院, 重庆 400054
Synthesis of porous α-Mn2O3 and its catalytic performance for activating peroxymonosulfate to degrade methylene blue solution
Xiaoqian XIANG, Qiang XIA, Xiaogang LIAO, Lin ZHENG, Gang LI(), Xuebu HU
College of Chemistry and Chemical Engineering, Chongqing University of Technology, Chongqing 400054, China
全文: PDF(9862 KB)   HTML ( 1 )
输出: BibTeX | EndNote (RIS)
摘要

采用草酸盐热分解法制得由微米板堆垛而成的呈无规则颗粒状形貌的多孔α-Mn2O3,探索其作为催化剂活化过一硫酸盐(PMS)降解模拟染料废水亚甲基蓝(MB)溶液的性能。系统考察催化剂的煅烧温度、催化剂投加量、PMS用量和阴离子种类等工艺参数对锰氧化物催化PMS降解MB溶液的影响。结果表明:450℃煅烧温度下所获产物表现出最为优异的活化PMS的能力,α-Mn2O3/PMS体系对MB的降解率达75.88%,而单一PMS或α-Mn2O3对MB的降解率仅为22.19%和5.72%。该催化体系降解500 mL浓度为10 mg/L的MB溶液的优化实验参数为:PMS(0.1 mol/L)用量为3 mL,催化剂投加量为0.05 g,反应50 min后MB的降解率可达83.55%。反应体系中引入C2O42-或PO43-后会对MB溶液的降解产生抑制作用,抑制率分别为49.11%和10.27%,但Cl-的存在对MB降解无影响。此外,借助淬灭实验和电子顺磁共振技术(EPR)对反应体系中存在的活性物种进行鉴定,α-Mn2O3催化PMS可产生·OH,SO4-·,·O2-和单线态氧(1O2),且1O2是参与直接氧化降解MB的最主要活性中间体。动力学分析表明,α-Mn2O3催化活化PMS对MB溶液的降解为二级反应,反应速率常数为3.53 L·mmol-1·min-1

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
向小倩
夏强
廖小刚
郑林
李纲
胡学步
关键词 草酸盐法α-Mn2O3过一硫酸盐亚甲基蓝单线态氧
Abstract

Porous α-Mn2O3 with irregular granular morphology stacked from microplates was synthesized through thermal decomposition of oxalate, and its performance as a catalyst to activate peroxymonosulfate(PMS) for degradation of simulated dyestuff wastewater with methylene blue(MB)as main component was explored. Influences of calcination temperature, catalyst addition, PMS dosage and anion species on MB degradation efficiency were investigated.The results show that the product obtained at 450℃ exhibits the most excellent catalytic ability. The degradation ratio of MB is 75.88% in the system of α-Mn2O3/PMS, while its counterpart is only 22.19% and 5.72% for PMS or α-Mn2O3 alone, respectively.The optimization reaction additions for degradation of MB of 500 mL with a concentration of 10 mg/L are: 3 mL of PMS (0.1 mol/L), 0.05 g of α-Mn2O3. At this condition, a MB degradation ratio of 83.55% can be achieved in 50 min. In addition, it is found that introduction of C2O42- or PO43- has a negative effect on MB degradation, whose inhibition rate is 49.11% and 10.27%, respectively. However, Cl- has no inhibitory effect for MB degradation. Furthermore, the active species in the reaction system are identified by the quenching experiments and electron paramagnetic resonance(EPR) tests.The results confirm that there are ·OH, SO4-·, ·O2- and 1O2 in the reaction system, and 1O2 is the most important active intermediate involved in the direct oxidation degradation of MB.Kinetic analysis demonstrates that the degradation of MB solution with PMS catalyzed by α-Mn2O3 is a secondary reaction, and the kinetic reaction rate constant is 3.53 L·mmol-1·min-1.

Key wordsoxalate route    α-Mn2O3    peroxymonosulfate    methylene blue    singlet oxygen
收稿日期: 2021-02-09      出版日期: 2022-02-23
中图分类号:  X131.2
基金资助:重庆市教委科学技术研究重点项目(KJZD-K201801103);重庆市科技局技术创新与应用发展专项面上项目(cstc2019jscx-msxmX0358);重庆理工大学项目(clgycx20203085);重庆理工大学项目(KLA20031)
通讯作者: 李纲     E-mail: ligang2015@cqut.edu.cn
作者简介: 李纲(1981-), 男, 副教授, 博士, 主要从事纳米功能材料制备及其应用研究, 联系地址: 重庆市巴南区红光大道69号重庆理工大学化学化工学院(400054), E-mail: ligang2015@cqut.edu.cn
引用本文:
向小倩, 夏强, 廖小刚, 郑林, 李纲, 胡学步. 多孔α-Mn2O3的制备及其催化过一硫酸盐降解亚甲基蓝溶液的性能[J]. 材料工程, 2022, 50(2): 164-172.
Xiaoqian XIANG, Qiang XIA, Xiaogang LIAO, Lin ZHENG, Gang LI, Xuebu HU. Synthesis of porous α-Mn2O3 and its catalytic performance for activating peroxymonosulfate to degrade methylene blue solution. Journal of Materials Engineering, 2022, 50(2): 164-172.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000142      或      http://jme.biam.ac.cn/CN/Y2022/V50/I2/164
Fig.1  样品的XRD谱图

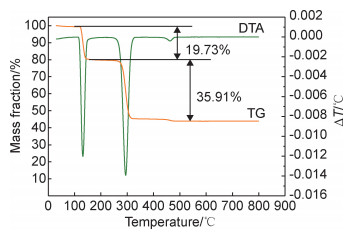

Fig.2  前驱体的TG和DTA曲线
Fig.3  样品的SEM图
(a)前驱体;(b)450 ℃产物;(c)550 ℃产物;(d)650 ℃产物

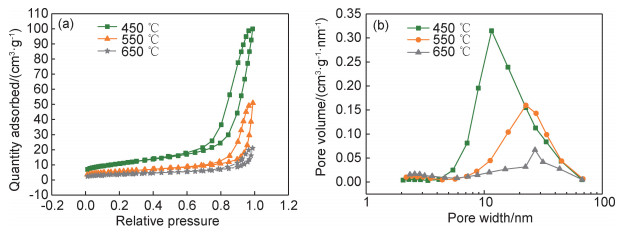

Fig.4  不同煅烧温度所获样品的N2吸附-脱附曲线(a)和相应的孔径分布曲线(b)
Sample Specific surface area/(m2·g-1) Pore volume/(cm3·g-1) Pore size/nm
450 ℃ product 38.47 0.15 11.55
550 ℃ product 20.04 0.08 22.80
650 ℃ product 13.47 0.03 27.17
Table 1  不同煅烧温度下所获Mn2O3样品的物理参数
Fig.5  煅烧温度对Mn2O3催化性能的影响
Fig.6  PMS添加量对MB溶液降解的影响
Fig.7  催化剂投加量对MB溶液降解的影响
Fig.8  阴离子对MB溶液降解的影响
Fig.9  催化剂的重复使用性能

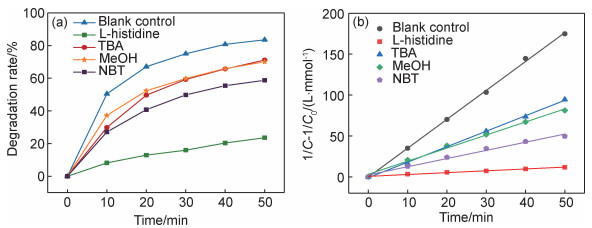

Fig.10  不同猝灭剂作用下MB溶液的降解结果(a)及其降解反应二级动力学曲线(b)

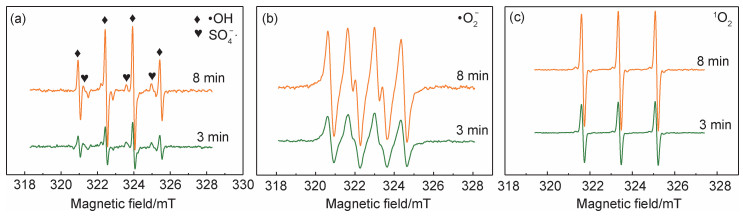

Fig.11  ·OH和SO4-·(a),·O2- (b),1O2(c)的EPR谱图

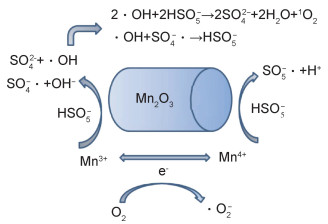

Fig.12  α-Mn2O3/PMS对MB溶液的降解机理示意图
