Fe/Al异质金属接头界面组织演变、生长动力学及力学性能
李鹏1, 邹存柱1, 董红刚1,*(), 吴宝生1, 李超1, 杨跃森1, 闫德俊2
1 大连理工大学 材料科学与工程学院,辽宁 大连 116024
2 中船黄埔文冲船舶有限公司 广东省舰船先进焊接技术 企业重点实验室,广州 510715
Interfacial microstructure evolution, growth kinetics and mechanical properties of Fe/Al dissimilar metal joints
Peng LI1, Cunzhu ZOU1, Honggang DONG1,*(), Baosheng WU1, Chao LI1, Yuesen YANG1, Dejun YAN2
1 School of Materials Science and Engineering, Dalian University of Technology, Dalian 116024, Liaoning, China
2 Guangdong Provincial Key Laboratory of Advanced Welding Technology for Ships, CSSC Huangpu Wenchong Shipbuilding Co., Ltd., Guangzhou 510715, China
全文: PDF(7032 KB)   HTML ( 1 )
输出: BibTeX | EndNote (RIS)
摘要

采用真空扩散连接方法研究Fe/Al异质金属接头界面组织演变规律、金属间化合物(intermetallic compound,IMC)生长动力学及力学性能。结果表明:焊接温度为550 ℃时,接头界面无IMC生成,当焊接温度超过575 ℃时,界面由Fe2Al5及少量FeAl3 IMC构成,且随焊接温度升高IMC层迅速长大。在120 min保温时间条件下,接头剪切强度随焊接温度的升高先增加后降低,当焊接温度为575 ℃时,接头剪切强度达到最大值37 MPa。在550~625 ℃范围内,基于热力学分析得出Fe2Al5的吉布斯自由能ΔGFe-Al最低,而FeAl3的ΔGFe-Al次之,在接头界面处IMC生成顺序为Fe2Al5→FeAl3。Fe/Al接头界面IMC的生长随焊接温度呈抛物线规律,其生长激活能为282.6 kJ·mol-1。在575,600,625 ℃条件下,界面IMC的生长速率分别为1.13×10-14,3.59×10-14,1.21×10-13 m2·s-1

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
李鹏
邹存柱
董红刚
吴宝生
李超
杨跃森
闫德俊
关键词 Fe/Al异质金属扩散连接金属间化合物生长动力学
Abstract

The interfacial microstructure evolution, growth kinetics of the intermetallic compound (IMC) and mechanical properties of Fe/Al dissimilar metal joints were investigated by vacuum diffusion bonding. The results show that there is no IMC formed on the interface of the joint bonded at temperature of 550 ℃. When the bonding temperature exceeds 575 ℃, the interfacial region is composed of Fe2Al5 and a small amount of FeAl3, and the thickness of IMC layer increases rapidly with the increase of bonding temperature.Under the bonding time of 120 min, the shear strength of the joint increases first and then decreases with the increase of the bonding temperature, and the shear strength of the joint reaches the maximum value of 37 MPa.According to thermodynamic theory, the Gibbs free energy change of Fe2Al5 is the lowest in the range from 550 ℃ to 625 ℃, and then followed by that of FeAl3, and the generated sequence of interfacial IMC can be: Fe2Al5→FeAl3. The interfacial IMC grow in a parabolic manner as a function of bonding temperature, and its growth activation energy is 282.6 kJ·mol-1.The growth rates of IMC at the interface are 1.13× 10-14, 3.59×10-14, 1.21×10-13 m2·s-1 at 575, 600, 625 ℃ respectively.

Key wordsFe/Al dissimilar metal    diffusion bonding    intermetallic compound    growth kinetics
收稿日期: 2021-07-25      出版日期: 2022-05-23
中图分类号:  TG401
基金资助:国家自然科学基金项目(52075074);中央高校基本科研业务费(DUT21 JC16);广东特支计划(2019TQ05C752)
通讯作者: 董红刚     E-mail: donghg@dlut.edu.cn
作者简介: 董红刚(1975—),男,教授,博士,主要从事异种材料连接工艺与冶金机理、焊接材料成分设计、焊接热过程数值计算的研究,联系地址:辽宁省大连市甘井子区凌工路2号大连理工大学铸造中心304室(116024),E-mail:donghg@dlut.edu.cn
引用本文:
李鹏, 邹存柱, 董红刚, 吴宝生, 李超, 杨跃森, 闫德俊. Fe/Al异质金属接头界面组织演变、生长动力学及力学性能[J]. 材料工程, 2022, 50(5): 43-51.
Peng LI, Cunzhu ZOU, Honggang DONG, Baosheng WU, Chao LI, Yuesen YANG, Dejun YAN. Interfacial microstructure evolution, growth kinetics and mechanical properties of Fe/Al dissimilar metal joints. Journal of Materials Engineering, 2022, 50(5): 43-51.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000694      或      http://jme.biam.ac.cn/CN/Y2022/V50/I5/43
Material C Si Mn P S Cu Al Ni Fe
Iron 0.003 0.009 0.032 0.007 0.005 0.001 0.01 0.01 Bal
Aluminum 0.25 0.03 0.05 Bal 0.35
Table 1  1060纯铝和工业纯铁的化学成分(质量分数/%)

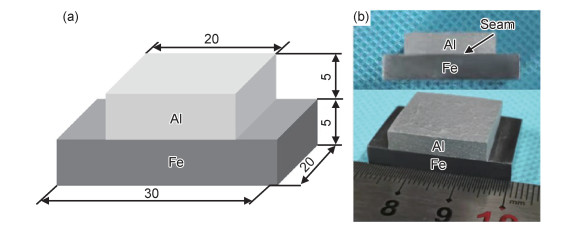

Fig.1  Fe/Al异质金属焊接试样尺寸示意图(a)和接头宏观形貌(b)
Group Temperature/℃ Time/min Pressure/MPa
1 550 120 1
2 575 120 1
3 600 120 1
4 625 120 1
Table 2  扩散连接工艺参数

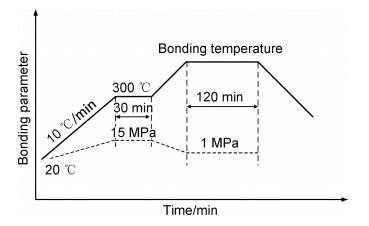

Fig.2  扩散连接工艺参数曲线

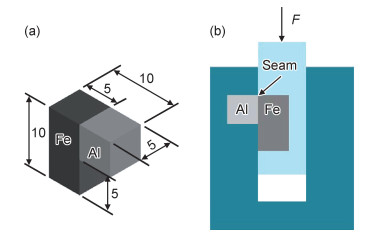

Fig.3  剪切实验试样尺寸(a)和示意图(b)

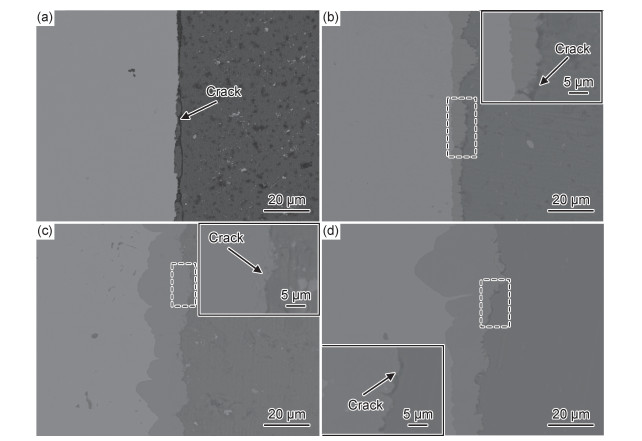

Fig.4  不同焊接温度下Fe/Al接头界面微观组织
(a)550 ℃; (b)575 ℃; (c)600 ℃; (d)625 ℃

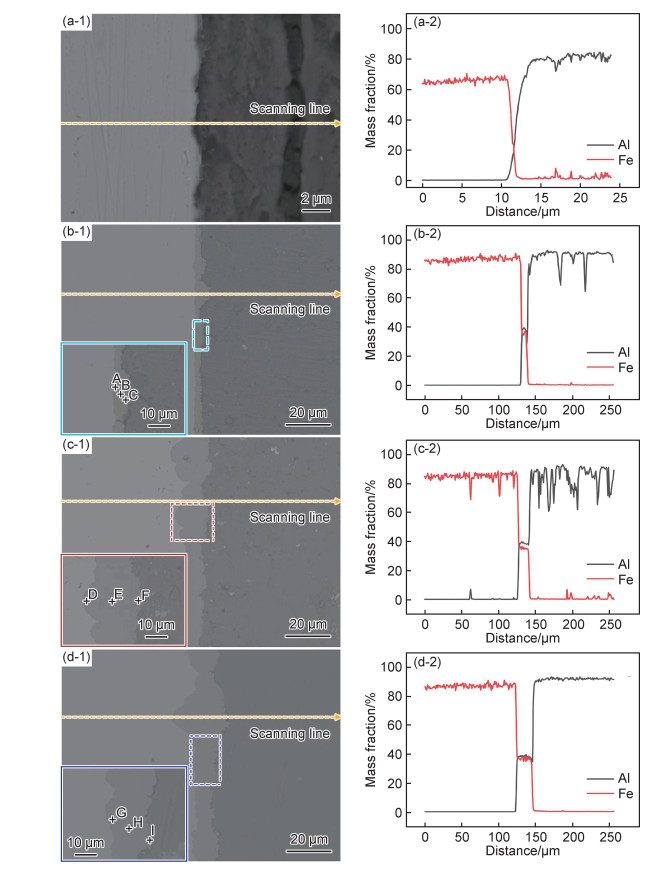

Fig.5  不同焊接温度下Fe/Al接头界面微观组织(1)及线扫描分析结果(2)
(a)550 ℃; (b)575 ℃; (c)600 ℃; (d)625 ℃
Location Fe Al Possible phase
A 26.61 73.39 Fe2Al5
B 27.25 72.75 Fe2Al5
C 27.19 72.81 Fe2Al5
D 27.84 72.16 Fe2Al5
E 28.82 71.18 Fe2Al5
F 23.61 76.39 FeAl3
G 28.33 71.67 Fe2Al5
H 28.64 71.36 Fe2Al5
I 23.55 76.45 FeAl3
Table 3  图 5位置A~I的化学成分(原子分数/%)

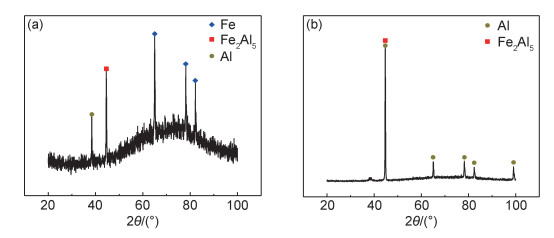

Fig.6  焊接温度575 ℃下接头断口表面XRD谱图
(a)Fe侧; (b)Al侧

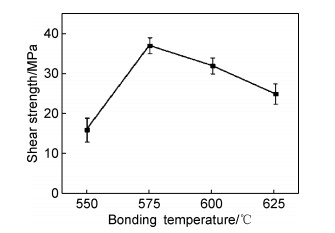

Fig.7  不同焊接温度下Fe/Al接头剪切强度
IMC Chemical reaction ΔH298/(kJ·mol-1)[19] S298/(kJ·mol-1·K-1)[19]
Fe2Al5 2Fe+5Al=Fe2Al5 -201.6 0.154
FeAl3 Fe+3Al=FeAl3 -111.4 0.095
FeAl2 Fe+2Al=FeAl2 -81.6 0.073
FeAl Fe+Al=FeAl -48.5 0.051
Fe3Al 3Fe+Al=Fe3Al -57.2 0.028
Table 4  Fe-Al体系中发生的化学反应以及IMC的标准生成焓和标准熵值
IMC ΔGFe-Al/(kJ·mol-1)
Fe2Al5 -201.6+0.04T
FeAl3 -111.4+0.016T
FeAl2 -81.6+0.01T
FeAl -48.5+0.004T
Fe3Al -57.2+0.081T
Table 5  Fe-Al金属间化合物ΔGFe-Al与焊接温度的关系

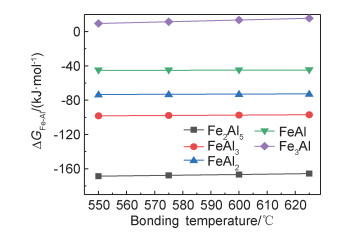

Fig.8  IMC吉布斯自由能变与焊接温度的关系
Temperature/℃ Time/min Average thickness/μm
575 120 9.00
600 120 16.07
625 120 29.55
Table 6  不同工艺条件下IMC的平均厚度

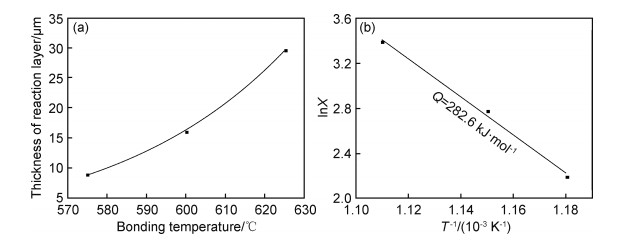

Fig.9  界面反应层的生长曲线(a)和生长激活能(b)

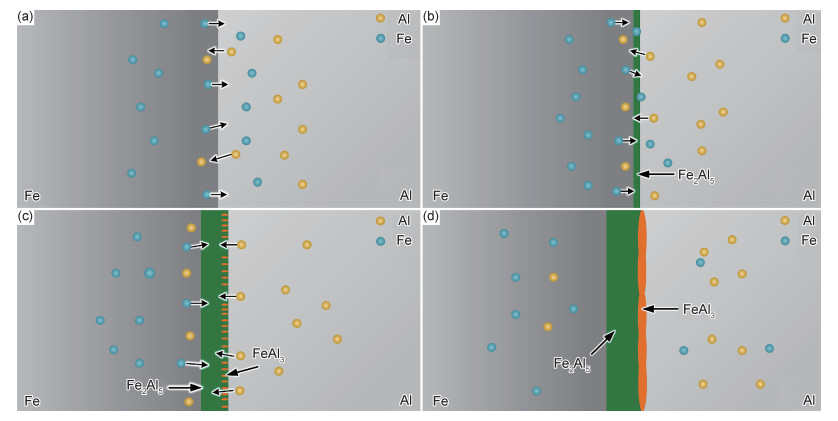

Fig.10  接头界面IMC生长示意图
(a)原子扩散; (b)Fe2Al5形成阶段; (c)FeAl3形核阶段; (d)IMC连续生长
