三向正交预制体织造参数对C/C复合材料性能的影响
邓奇林, 杨敏(), 姚彧敏, 李红, 任慕苏, 孙晋良
上海大学 复合材料研究中心, 上海 200444
Effect of three-directional orthogonal preform weaving parameters on properties of C/C composites
Qilin DENG, Min YANG(), Yumin YAO, Hong LI, Musu REN, Jinliang SUN
Composite Research Center of Shanghai University, Shanghai 200444, China
全文: PDF(15055 KB)   HTML ( 4 )
输出: BibTeX | EndNote (RIS)
摘要

Z向间距不同的三向正交结构预制体为研究对象,采用化学气相渗透和浸渍树脂相结合的工艺制备碳/碳(C/C)复合材料,研究织造参数对C/C复合材料微观结构和弯曲性能的影响。以三向正交预制体最小的重复结构为单元建立计算模型,获得三向正交预制体纤维含量与织造参数的关系式并进行验证,结果表明:Z向纤维间距及XY向纤维层间距越小,预制体纤维含量越高;Z向纤维间距越大,纤维交织处扭曲变形大,预制体孔隙结构发生变化;相同致密化工艺下,孔隙结构的变化影响C/C复合材料中基体碳的组成和分布,对基体碳形貌无影响;XY向纤维含量越高,Z向纤维间距越小,致密后的C/C复合材料弯曲强度越高。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
邓奇林
杨敏
姚彧敏
李红
任慕苏
孙晋良
关键词 三向正交预制体织造参数纤维含量微观形貌弯曲性能
Abstract

Taking the three-directional orthogonal preform with different Z-direction fiber distance as the research object, the carbon/carbon (C/C) composites were prepared by the combination of chemical vapor infiltration and resin impregnation, and the effect of weaving parameters on the microstructure and bending performance of C/C composites were studied. The calculation model was established by taking the smallest repeated structure of three-directional orthogonal preform as a unit, and the relationship between fiber content and weaving parameters of three-directional preform was obtained and verified. The results show that the fiber content of preform is increased with the decrease of Z-direction fiber distance and X, Y-direction fiber layer distance; when the Z-direction fiber distance is increased, the twist deformation of the fiber interweave becomes larger, resulting in the change of the pore structure of the preform; under the same densification process, the change of pore structure affects the composition and distribution of carbon matrix in C/C composites, but has no effect on the morphology of carbon matrix; when the fiber content in X, Y-direction is increased and the distance between fibers in Z-direction is decreased, the flexural strength of the C/C composites is higher.

Key wordsthree-directional orthogonal preform    weaving parameter    fiber content    micro-morphology    bending property
收稿日期: 2021-04-14      出版日期: 2022-05-23
中图分类号:  TB332
基金资助:科技委基础加强项目(2017-JCJQ-ZD-035);上海市教育发展基金会和上海市教育委员会"曙光计划"(18SG34)
通讯作者: 杨敏     E-mail: ym2008@shu.edu.cn
作者简介: 杨敏(1983—), 女, 副研究员, 博士, 从事碳基复合材料的研究, 联系地址: 上海市宝山区上大路99号上海大学113信箱复合材料研究中心(200444), E-mail: ym2008@shu.edu.cn
引用本文:
邓奇林, 杨敏, 姚彧敏, 李红, 任慕苏, 孙晋良. 三向正交预制体织造参数对C/C复合材料性能的影响[J]. 材料工程, 2022, 50(5): 139-146.
Qilin DENG, Min YANG, Yumin YAO, Hong LI, Musu REN, Jinliang SUN. Effect of three-directional orthogonal preform weaving parameters on properties of C/C composites. Journal of Materials Engineering, 2022, 50(5): 139-146.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2021.000342      或      http://jme.biam.ac.cn/CN/Y2022/V50/I5/139
Sample X, Y-direction fiber Z-direction fiber Z-direction fiber center distance/mm X, Y-direction fiber layer distance/mm Density/ (g·cm-3)
Y1 1×6 K 2×6 K 2.0 0.30 0.9
Y2 1×6 K 2×6 K 2.4 0.25 0.8
Y3 2×3 K 4×6 K 4.8 0.31 0.7
Table 1  Y1, Y2, Y3预制体织造参数

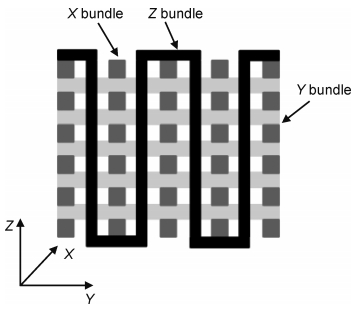

Fig.1  三向正交预制体示意图

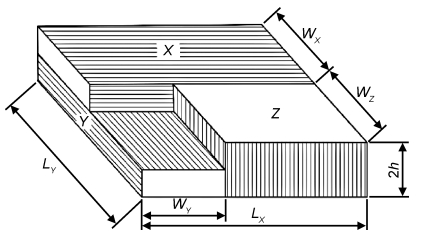

Fig.2  三向正交预制体单元体示意图
Sample VFX/% VFY/% VFZ/% VF/%
Y1 18.9 18.9 11.4 49.2
Y2 18.9 18.9 7.8 45.6
Y3 15.3 15.3 7.8 38.4
Table 2  三种预制体纤维体积分数的计算值
Fig.3  不同预制体增强C/C复合材料显微图
(a)Y1样品;(b)Y2样品;(c)Y3样品
Sample Designed value/mm Measured value/mm
Y1 2.0 1.9
Y2 2.4 2.3
Y3 4.8 3.0-4.6
Table 3  三种预制体结构C/C复合材料Z向纤维中心距离实测值和设计值

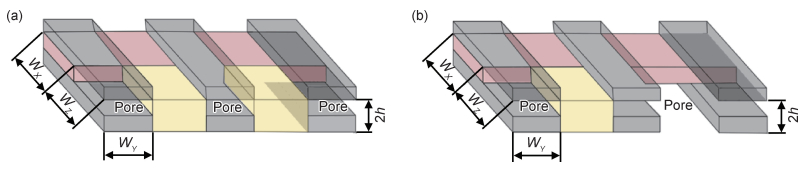

Fig.4  三种预制体结构的孔隙结构示意图
(a)Y1, Y2样品;(b)Y3样品
Fig.5  三种预制体结构C/C复合材料微观形貌
(a)XY向纤维束;(b)Z向纤维束;(c)XYZ向纤维束包裹;(1)Y1;(2)Y2;(3)Y3
Fig.6  Y3预制体结构C/C复合材料Z向纤维未填充处微观形貌
Sample nCF/% nPyC/% nRC/% Density/ (g·cm-3)
Y1 51.1 28.0 15.8 1.86
Y2 46.1 32.5 16.1 1.85
Y3 39.8 37.5 16.6 1.86
Table 4  三种预制体结构C/C复合材料的组成和密度
Fig.7  三种预制体结构C/C复合材料弯曲强度图

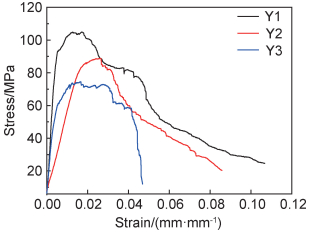

Fig.8  三种预制体结构C/C复合材料弯曲应力-应变曲线

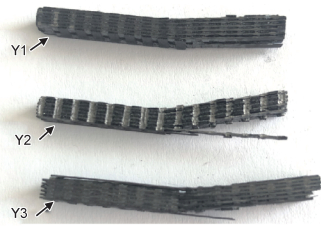

Fig.9  三种预制体结构C/C复合材料弯曲试样断裂后宏观形貌
Fig.10  三种预制体结构C/C复合材料弯曲试样断口形貌
(a)Y1样品;(b)Y2样品;(c)Y3样品

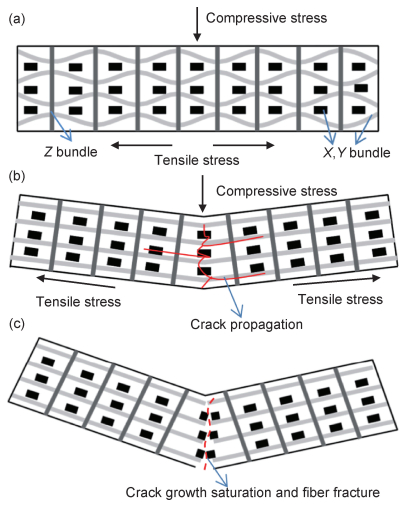

Fig.11  弯曲断裂过程示意图
(a)屈曲变形;(b)裂纹扩展;(c)断裂失效
