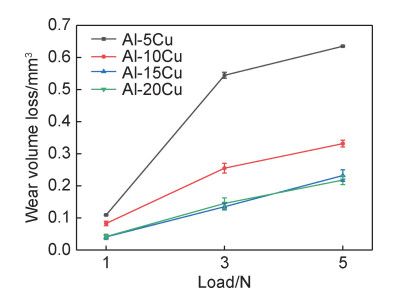

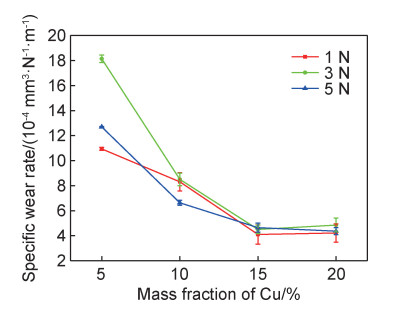

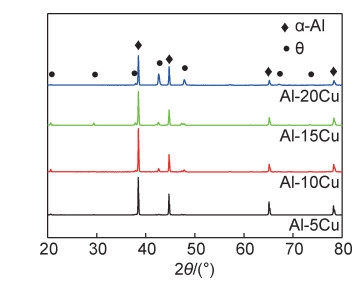

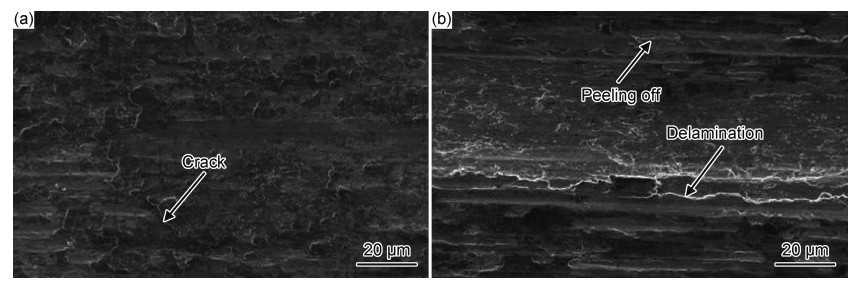

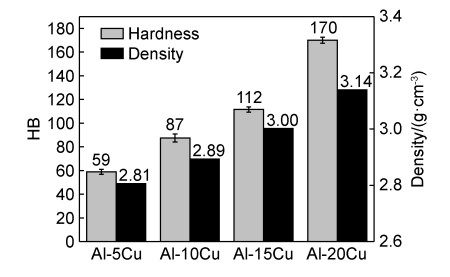

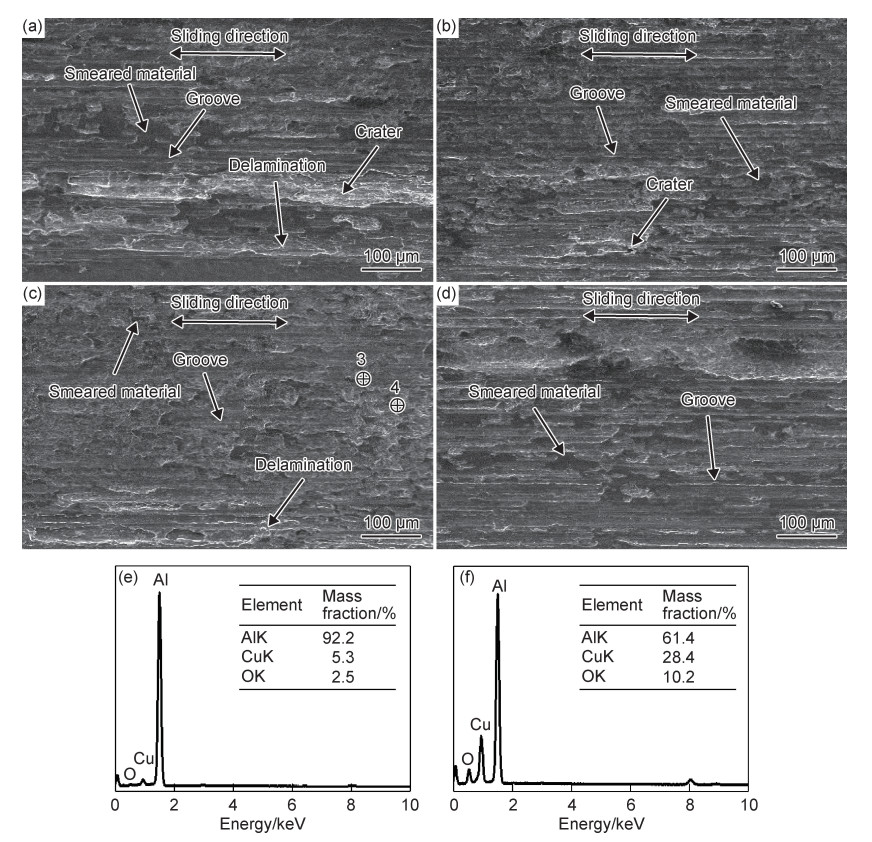

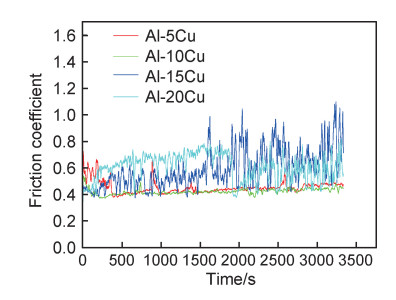

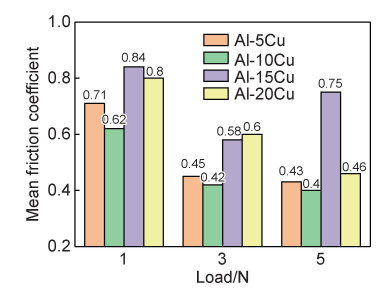

Al-Cu alloy samples with 5%-20% (mass fraction) Cu were prepared by die-casting process. The hardness of the samples was measured on a Brinell hardness tester. The wear experiments with three kinds of load (1-5 N) were carried out with a ball-disk reciprocating wear tester. The wear mechanism of the samples with different Cu contents was analyzed by SEM and EDS. The results show that as the Cu content increases from 5% to 20%, the volume fraction of θ phase in Al-Cu alloy increases from 2.00% to 25.80%, and the size of θ phase increases gradually; the hardness increases from 59HB to 170HB. The coefficient of friction changes within the range of 0.4-0.85; with the increase of Cu content, the specific wear rate of Al-Cu alloy samples decreases sharply at first and then tends to be gentle. When Cu content is more than 15%, the specific wear rate of alloy samples does not change much, and the lowest specific wear rate is about 4.1×10-4 mm3·N-1·m-1. The specific wear rate of samples with lower Cu content changes significantly with the load, and the specific wear rate difference decreases with the increase of Cu content. The main wear mechanisms of Al-Cu alloys are adhesive wear and abrasive wear. For samples with low Cu content, adhesive wear is dominant; while for samples with high Cu content, abrasive wear is dominant. With the increase of load, the adhesive wear degree of the samples with low Cu content increases, and the abrasive wear degree of the samples with high Cu content increases.
ALEXOPOULOS N D , VELONAKI Z , STERGIOU C I , et al. Effect of ageing on precipitation kinetics, tensile and work harde-ning behavior of Al-Cu-Mg (2024) alloy[J]. Materials Science and Engineering: A, 2017, 700, 457- 467.
doi: 10.1016/j.msea.2017.05.090
2
HU Y , WANG G , YE M , et al. A precipitation hardening model for Al-Cu-Cd alloys[J]. Materials & Design, 2018, 151, 123- 132.
3
AAL M , MAHALLAWY N E , SHEHATA F A , et al. Wear pro-perties of ECAP-processed ultrafine grained Al-Cu alloys[J]. Materials Science and Engineering: A, 2010, 527 (16/17): 3726- 3732.
4
LIU X Y , PAN Q L , LU Z L , et al. Effects of solution treatment on the microstructure and mechanical properties of Al-Cu-Mg-Ag alloy[J]. Materials & Design, 2010, 31 (9): 4392- 4397.
WANG D S , WEI S H , FAN J Z , et al. Microstructure and properties of SiCp/Al-Cu-Mg composites with solution treatment[J]. Chinese Journal of Rare Metals, 2016, 40 (2): 125- 131.
6
MURAYAMA M , HORITA Z , HONO K . Microstructure of two-phase Al-1.7 at% Cu alloy deformed by equal-channel angular pressing[J]. Acta Materialia, 2001, 49 (1): 21- 29.
doi: 10.1016/S1359-6454(00)00308-6
7
XU X , LIU Z , LI Y , et al. Evolution of precipitates of Al-Cu alloy during equal-channel angular pressing at room temperature[J]. Transactions of Nonferrous Metals Society of China, 2008, 18 (5): 1047- 1052.
doi: 10.1016/S1003-6326(08)60179-X
8
PRADOS E , SORDI V , FERRANTE M . Tensile behaviour of an Al-4 wt.%Cu alloy deformed by equal-channel angular pressing[J]. Materials Science and Engineering: A, 2009, 503 (1/2): 68- 70.
9
FANG D R , ZHANG Z F , WU S D , et al. Effect of equal channel angular pressing on tensile properties and fracture modes of cas-ting Al-Cu alloys[J]. Materials Science and Engineering: A, 2006, 426 (1/2): 305- 313.
10
BAHL S , HU X , HOAR E , et al. Effect of copper content on the tensile elongation of Al-Cu-Mn-Zr alloys: experiments and finite element simulations[J]. Materials Science and Engineering: A, 2020, 772, 138801.
doi: 10.1016/j.msea.2019.138801
11
BAHL S , HU X , SISCO K , et al. Influence of copper content on the high temperature tensile and low cycle fatigue behavior of cast Al-Cu-Mn-Zr alloys[J]. International Journal of Fatigue, 2020, 140, 105836.
doi: 10.1016/j.ijfatigue.2020.105836
XU H Y , HUANG L J , GENG L , et al. Effect of Cu content on the wear properties of Al2O3·SiO2sf/Al-Cu composites[J]. Acta Metallurgica Sinica, 2013, 49 (9): 1131- 1136.
13
KUMAR A N , SRINIVASU R , RAO J B . Dry sliding wear behavior of pure aluminium and Al-Cu alloys[J]. Journal of the Institution of Engineers, 2009, 90, 7- 11.
14
RAJU P , RAJESH S , RAO J B , et al. Tribological behavior of Al-Cu alloys and innovative Al-Cu metal matrix composite fabricated using stir-casting technique[J]. Materials Today: Procee-dings, 2018, 5 (1): 885- 896.
doi: 10.1016/j.matpr.2017.11.161
WANG F X , LUO L S , WANG L , et al. Effect of alloy composition and cooling rate on the growth morphology of primary Al2Cu phase in Al-Cu alloy during solidification[J]. Acta Metallurgica Sinica, 2016, 52 (3): 361- 368.
16
OTTERLOO J L D M V , BAGNOLI D , HOSSON J T M D . Enhanced mechanical properties of laser treated Al-Cu alloys: a microstructural analysis[J]. Acta Metallurgica et Materialia, 1995, 43 (7): 2649- 2656.
doi: 10.1016/0956-7151(94)00467-V
LIU Y , MA S G , LIU Y J , et al. Friction and wear properties of AlxCrCuFeNi2 high-entropy alloys with multi-principal-elements[J]. Journal of Materials Engineering, 2018, 46 (2): 99- 104.
ZHANG X , WANG X X , ZHANG D K , et al. Influences of ECAP pass on mechanical properties and wear resistance of 6061 aluminum alloy[J]. Forging & Stamping Technology, 2019, 44 (2): 61- 67.
20
潘志勇. 半固态加工Al-Cu合金的组织及性能的研究[D]. 长沙: 湖南大学, 2007.
20
PAN Z Y. The research on microstructure and property of Al-Cu alloy by semi-solid processing[D]. Changsha: Hunan University, 2007.
SONG Q T , XU Y K , XU J . Dry-sliding wear behavior of (TiZrNbTa)90Mo10 high entropy alloy against Al2O3[J]. Acta Metallurgica Sinica, 2020, 56 (11): 1507- 1520.
23
REN X , FU H , XING J , et al. Effect of boron concentration on microstructures and properties of Fe-B-C alloy steel[J]. Journal of Materials Research, 2017, 32 (16): 3078- 3088.
doi: 10.1557/jmr.2017.304
24
MELGAREJO Z H , SUAREZ O M , SRIDHARAN K . Wear resistance of a functionally-graded aluminum matrix composite[J]. Scripta Materialia, 2006, 55 (1): 95- 98.
doi: 10.1016/j.scriptamat.2006.03.031
25
LU J , SONG Y , HUA L , et al. Effect of temperature on friction and galling behavior of 7075 aluminum alloy sheet based on ball-on-plate sliding test[J]. Tribology International, 2019, 140, 105872.
doi: 10.1016/j.triboint.2019.105872
HUANG K , JIANG R P , LI X Q , et al. Effect of ultrasonic field on friction and wear properties of in-situ TiB2/2A14 composite materials[J]. Journal of Materials Engineering, 2019, 47 (12): 78- 84.
27
ASHIRI R , NIROUMAND B , KARIMZADEH F . Physical, mechanical and dry sliding wear properties of an Al-Si-Mg-Ni-Cu alloy under different processing conditions[J]. Journal of Alloys and Compounds, 2014, 582, 213- 222.
doi: 10.1016/j.jallcom.2013.08.016
