45钢的黏结型激光微织构表面摩擦学性能及固体润滑机理分析

doi:10.11868/j.issn.1001-4381.2015.09.007

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5832 KB)

HTML ( 55 )
输出: BibTeX | EndNote (RIS)

摘要

采用二极管泵浦声光调Q Nd:YAG激光器在45钢表面进行织构化处理,对填充不同质量分数聚酰亚胺(PI)的MoS₂复合固体润滑剂织构试样在销-盘线接触摩擦磨损试验机上进行了不同工况下的滚动摩擦性能实验。利用扫描电子显微镜观察和分析材料磨损形貌和元素分布。结果表明:填充黏结型MoS₂复合固体润滑剂织构表面的摩擦因数均随着载荷和转速的增大而减小,其中MoS₂+20%(质量分数)PI复合润滑剂具有最佳的减摩性能。在线接触滚动过程中,存在氧化磨损、磨粒磨损和黏着磨损。高速重载能促进转移膜在对偶面形成,显示出良好的减摩性能。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	华希俊
	王蓉
	周万
	刘凯
	符永宏
	纪敬虎

关键词 ：激光织构, 复合固体润滑剂, 线接触, 滚动摩擦

Abstract：

Q switched diode-pumped solid-state Nd: YAG laser was adopted to carry out texture processing on the surface of 45 steel. Rolling friction property test of textured samples filled with MoS₂ composite solid lubricant containing different mass fractions of PI was examined by a pin-plate line contact friction and wear tester under different working conditions. Wear morphologies and elements distribution were observed and analyzed by SEM. The results indicate that the friction coefficient of textured surface which is filled with bond-type MoS₂ solid lubricant decreases as the load and speed increase, and the composite lubricant containing MoS₂ plus 20%(mass fraction) PI has the best anti-friction property. The textured surfaces exist oxidation wear, abrasive wear and adhesive wear in the condition of line contact rolling. High speed and heavy load can promote transfer films forming on the counterpart face, and show good anti-friction performance.

Key words： laser texture composite solid lubricant line contact rolling friction

收稿日期: 2014-05-08 出版日期: 2015-09-26

基金资助:国家自然科学基金资助项目(51375211,51305168);国家重大科技成果转化项目(2060403);镇江市工业科技支撑项目(GY2012039)

通讯作者: 华希俊 E-mail: xjhua@ujs.edu.cn

作者简介: 华希俊(1966-),男,教授,工学博士,主要从事激光表面改性与摩擦学设计、固体润滑等方面的研究,联系地址:江苏省镇江市京口区学府路301号江苏大学机械工程学院(212013),E-mail:xjhua@ujs.edu.cn

引用本文:

华希俊, 王蓉, 周万, 刘凯, 符永宏, 纪敬虎. 45钢的黏结型激光微织构表面摩擦学性能及固体润滑机理分析[J]. 材料工程, 2015, 43(9): 39-45.
Xi-jun HUA, Rong WANG, Wan ZHOU, Kai LIU, Yong-hong FU, Jing-hu JI. Analysis of Tribological Property and Mechanism of Solid Lubrication on 45 Steel Bond-type Laser Micro-textured Surface. Journal of Materials Engineering, 2015, 43(9): 39-45.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.09.007 或 http://jme.biam.ac.cn/CN/Y2015/V43/I9/39

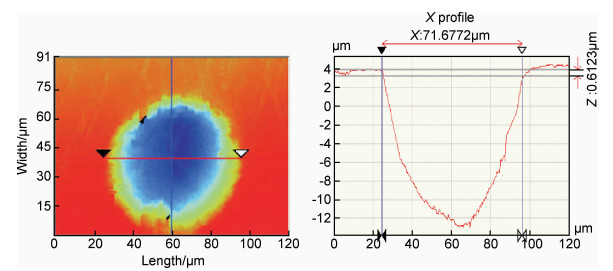

Fig.1 单个凹腔形貌

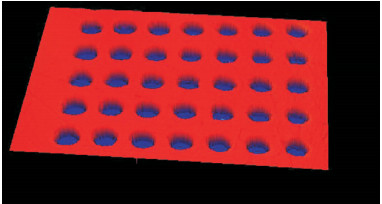

Fig.2 微织构表面形貌图

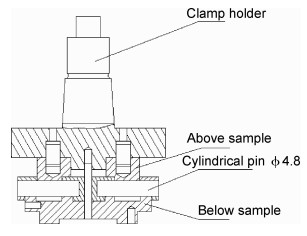

Fig.3 实验装置装配图

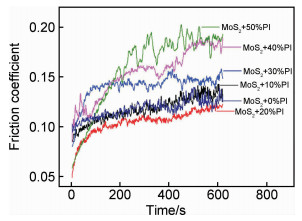

Fig.4 不同复合润滑剂织构表面的摩擦因数变化曲线(载荷：200N；转速：100r/min)

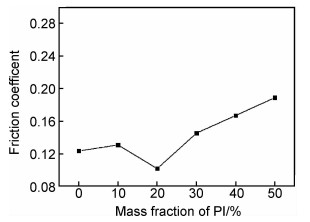

Fig.5 织构表面摩擦因数随PI质量分数的变化曲线

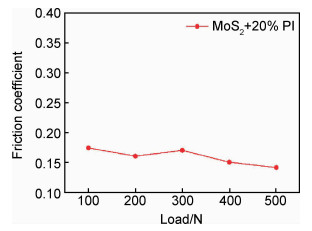

Fig.6 织构表面摩擦因数随载荷的变化曲线

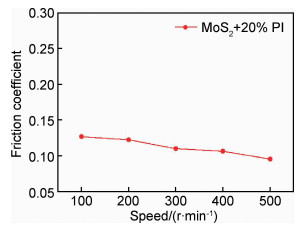

Fig.7 织构表面摩擦因数随转速的变化曲线

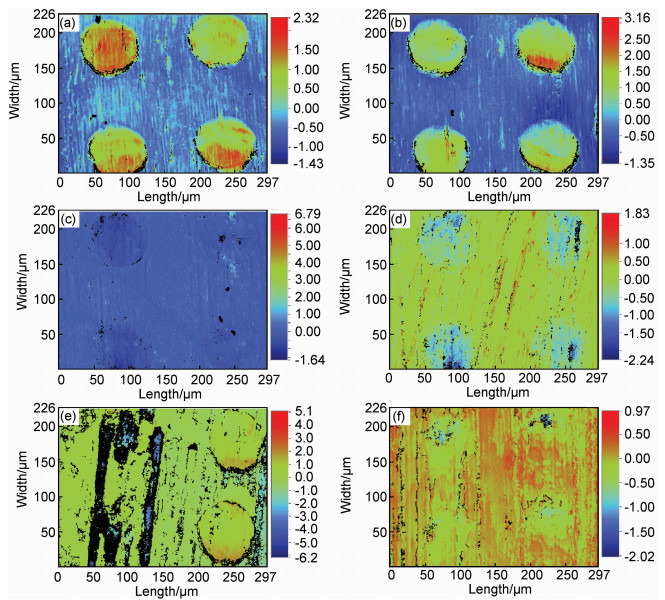

Fig.8 织构表面的磨痕形貌
(a)MoS₂+0%PI;(b)MoS₂+10%PI; (c)MoS₂+20%PI;(d)MoS₂+30%PI;(e)MoS₂+40%PI;(f)MoS₂+50%PI

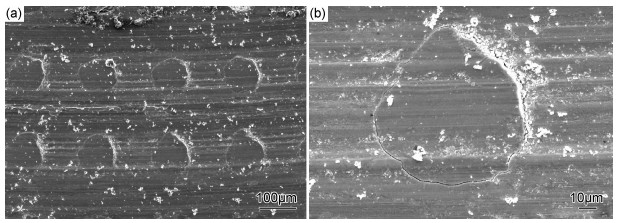

Fig.9 填充MoS₂+20%PI复合固体润滑剂的下试样显微组织照片
(a)凹腔织构表面；(b)单个织构表面

Fig.10 复合固体润滑剂的显微组织照片

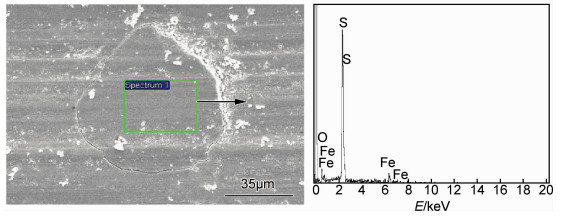

Fig.11 凹腔表面的EDS图谱

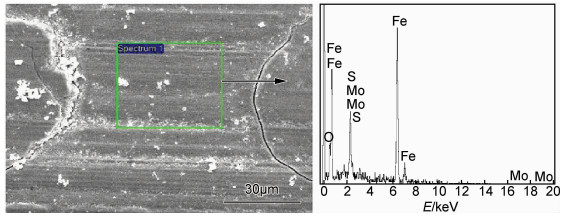

Fig.12 凹腔间表面的EDS图谱
