阳极氧化法制备铝基超疏水涂层及其稳定性和耐蚀性的研究
郑顺丽, 李澄(), 项腾飞, 胡玮, 丁诗炳, 王晶, 刘盼金
南京航空航天大学 材料科学与技术学院, 南京 210016
Fabrication of Aluminum-based Superhydrophobic Coating by Anodization and Research on Stability and Corrosion Resistance
Shun-li ZHENG, Cheng LI(), Teng-fei XIANG, Wei HU, Shi-bing DING, Jing WANG, Pan-jin LIU
College of Materials Science and Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
全文: PDF(12512 KB)   HTML ( 21 )
输出: BibTeX | EndNote (RIS)
摘要

铝由于在潮湿的环境中很容易受到污染和损坏,从而严重影响了其美观性和用途。为了改善铝基材料的耐腐蚀性能,采用电化学阳极氧化法与十四酸修饰相结合的方式在铝基底上制备了超疏水涂层。通过场发射扫描电镜(FESEM)和X射线能量色散光谱(EDS)对涂层表面形貌和化学组成进行了表征。同时利用接触角测量仪、喷砂实验和电化学测试分别对涂层表面的润湿性、机械稳定性以及耐腐蚀性能进行了研究。结果表明:当阳极氧化电压为20V时,所制备的涂层为最佳铝基超疏水涂层,此时涂层的接触角为(155.2±0.5)°,滚动角为(3.5±1.3)°。其对应的腐蚀电流密度较铝基底降低了2个数量级,腐蚀电位从-0.629V正移到-0.570V,呈现出优异的耐腐蚀性能。此外,该涂层还具有良好的机械稳定性。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
郑顺丽
李澄
项腾飞
胡玮
丁诗炳
王晶
刘盼金
关键词 超疏水涂层阳极氧化耐蚀性稳定性
Abstract

Aluminum (Al) can be easily contaminated or damaged after exposure in damp environments, which can adversely affect its aesthetic appearance and desired functionalities. To improve its corrosion resistance, a superhydrophobic coating was fabricated on Al by electrochemical anodization followed by modification with myristic acid. The surface morphology and chemical composition were characterized by using a field emission scanning electron microscope (FESEM) with attached energy dispersive X-ray spectrum (EDS). The surface wettability, mechanical stability as well as corrosion resistance were also investigated by contact angle measuring system, sandblasting test and electrochemical measurements. The results show that the optimal Al-based superhydrophobic coating with a static water contact angle of (155.2±0.5)° and a sliding angle of (3.5±1.3)° is obtained at the anodization voltage of 20V. The corresponding corrosion current density (Icorr) is reduced by 2 orders of magnitude and the corrosion potential (Ecorr) shifts from -0.629V to -0.570V compared to the bare Al substrate, indicating excellent corrosion resistance. Besides, the as-prepared optimal Al-based superhydrophobic coating also suggests good mechanical stability.

Key wordssuperhydrophobic coating    aluminum    anodization    corrosion resistance    stability
收稿日期: 2016-03-15      出版日期: 2017-10-18
中图分类号:  TB37
基金资助:江苏高校优势学科建设工程资助项目(PAPD-062);南航-中联科技电子新材料联合实验室基金资助项目(201503)
通讯作者: 李澄     E-mail: licheng@nuaa.edu.cn
作者简介: 李澄(1959-), 男, 教授, 博士, 主要从事防护性与功能性表面涂层的研究, 联系地址:江苏省南京市御道街29号南京航空航天大学材料科学与技术学院(210016), E-mail:licheng@nuaa.edu.cn
引用本文:
郑顺丽, 李澄, 项腾飞, 胡玮, 丁诗炳, 王晶, 刘盼金. 阳极氧化法制备铝基超疏水涂层及其稳定性和耐蚀性的研究[J]. 材料工程, 2017, 45(10): 71-78.
Shun-li ZHENG, Cheng LI, Teng-fei XIANG, Wei HU, Shi-bing DING, Jing WANG, Pan-jin LIU. Fabrication of Aluminum-based Superhydrophobic Coating by Anodization and Research on Stability and Corrosion Resistance. Journal of Materials Engineering, 2017, 45(10): 71-78.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000301      或      http://jme.biam.ac.cn/CN/Y2017/V45/I10/71
Fig.1  阳极氧化电压对涂层接触角的影响

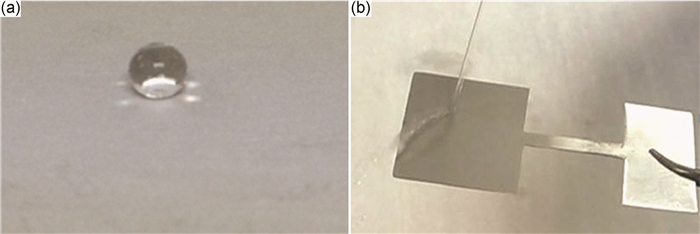

Fig.2  水滴和水流在铝基超疏水涂层表面的静态和动态行为照片(a)静态行为;(b)动态行为
Fig.3  铝基超疏水涂层在去离子水中浸泡7天时的接触角变化值
Fig.4  涂层的FESEM图片(a)M-0;(b)M-20;(c)M-22;(1) 低倍;(2) 高倍

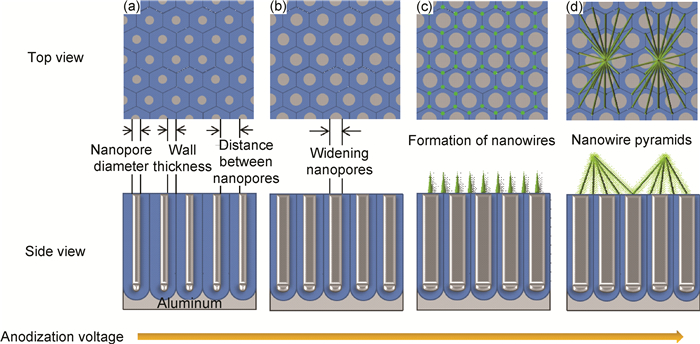

Fig.5  阳极氧化铝纳米孔结构到阳极氧化铝纳米线结构的形成过程示意图(a)纳米孔结构的生长;(b)扩孔阶段;(c)纳米线结构的形成;(d)纳米线金字塔结构的形成
Fig.6  涂层的EDS图谱(a)AAO-20;(b)M-20
Sample Contact
angle/(°)
Sliding
angle/(°)
Contact angle
hysteresis/(°)
f1/%
Al 52.6±1.4
AAO-20 0
M-0 114.1±2.7
M-20 155.2±0.5 3.5±1.3 7.0±3.0 15.59
M-22 152.8±0.3 7.0±1.3 9.6±1.7 18.69
Table 1  不同样品表面的接触角、滚动角、接触角滞后以及理论模型因子
Fig.7  喷砂实验装置图

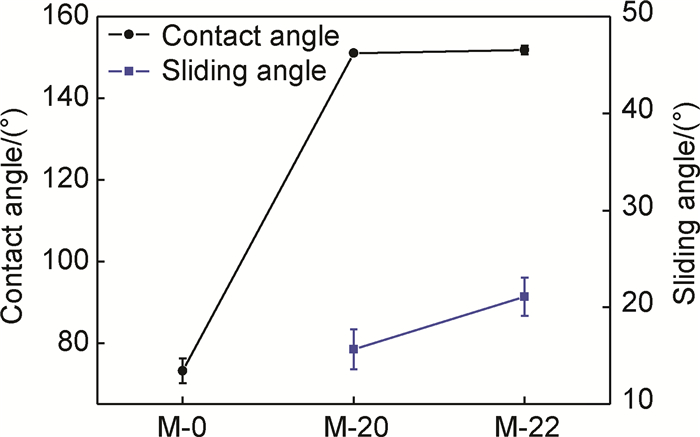

Fig.8  喷砂实验后涂层表面的接触角和滚动角变化值
Fig.9  不同涂层在3.5%NaCl溶液中的动电位极化曲线
Sample Icorr /
(A·cm-2)
Ecorr/
V
Rp/
(Ω·cm2)
Initial
immersion
Al 3.060×10-7 -0.629 8.451×104
AAO-20 1.124×10-8 -1.053 3.982×106
M-0 2.214×10-7 -0.609 2.343×105
M-20 1.527×10-9 -0.570 3.448×107
Immersion
for 12h
M-20 2.255×10-9 ―0.555 4.244×106
Table 2  不同涂层的动电位极化曲线参数
