2222材料工程  2018, Vol. 46 Issue (11): 51-56    DOI: 10.11868/j.issn.1001-4381.2017.001013
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
激光诱导法制备高质量铌酸钾纳米线及其发光性能
李瑞1, 刘立英2,*(), 姬宇航1, 王如志1, 杨炎翰1, 胡安明3, 白石3
1 北京工业大学 材料科学与工程学院, 北京 100124
2 北京工业大学 应用数理学院, 北京 100124
3 北京工业大学 激光工程研究院, 北京 100124
Preparation of High Quality Potassium Niobate Nanowires by Laser Induced Method and Its Luminescence Properties
Rui LI1, Li-ying LIU2,*(), Yu-hang JI1, Ru-zhi WANG1, Yan-han YANG1, An-ming HU3, Shi BAI3
1 College of Materials Science and Engineering, Beijing University of Technology, Beijing 100124, China
2 College of Applied Science, Beijing University of Technology, Beijing 100124, China
3 Institute of Laser Engineering, Beijing University of Technology, Beijing 100124, China
全文: PDF(1809 KB)   HTML ( 12 )
输出: BibTeX | EndNote (RIS)       背景资料
文章导读
摘要

以KOH,Nb2O5为原料,通过激光诱导法成功地在常温常压条件下制备出直径均匀、结晶性良好的铌酸钾纳米线。产物经XRD,SEM,Raman和UV-Vis等技术进行表征,并研究铌酸钾纳米线的光吸收和光致发光性能。结果表明:激光诱导产物化学式为KNb3O8(空间群为Pmmm(47),为正交晶系),纳米线的生长机制为SLS机制。纳米线的带隙宽度为2.84eV,在436nm处有一较强的蓝色发光峰。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
李瑞
刘立英
姬宇航
王如志
杨炎翰
胡安明
白石
关键词 激光诱导铌酸钾纳米线生长机制带隙宽度光致发光
Abstract

Under normal temperature and pressure conditions, potassium niobate nanowires with uniform diameter and good crystallinity were prepared by laser-induced method using KOH and Nb2O5 as raw materials. The samples were characterized by XRD, SEM, Raman and UV-Vis, the light absorption and photoluminescence properties of potassium niobate nanowires were studied. The results show that the chemical formula of laser-induced samples is KNb3O8 (the space group is Pmmm (47), which is orthorhombic system). The growth mechanism of nanowires is the SLS mechanism. The band gap of the prepared nanowires is 2.84eV, there is a strong blue emission peak at 436nm.

Key wordslaser induced    potassium niobate nanowire    growth mechanism    band gap    photoluminescence
收稿日期: 2017-08-10      出版日期: 2018-11-19
中图分类号:  O649
基金资助:国家自然科学基金(51472010);国家自然科学基金(11774017);北京工业大学日新人才支持计划(0060000514117010);北京市留学人员科技项目择优资助重点类项目与北京市属高校高水平创新团队建设计划项目(IDHT20170502)
通讯作者: 刘立英     E-mail: liuliying@bjut.edu.cn
作者简介: 刘立英(1979-), 女, 高级实验师, 博士, 主要从事新型低维光电功能材料的结构设计、制备表征、性能分析及其物理机理探索的研究, 联系地址:北京市朝阳区平乐园100号北京工业大学(100124), E-mail:liuliying@bjut.edu.cn
引用本文:
李瑞, 刘立英, 姬宇航, 王如志, 杨炎翰, 胡安明, 白石. 激光诱导法制备高质量铌酸钾纳米线及其发光性能[J]. 材料工程, 2018, 46(11): 51-56.
Rui LI, Li-ying LIU, Yu-hang JI, Ru-zhi WANG, Yan-han YANG, An-ming HU, Shi BAI. Preparation of High Quality Potassium Niobate Nanowires by Laser Induced Method and Its Luminescence Properties. Journal of Materials Engineering, 2018, 46(11): 51-56.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.001013      或      http://jme.biam.ac.cn/CN/Y2018/V46/I11/51

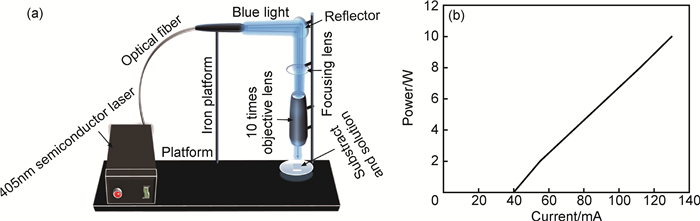

Fig.1  实验装置图
(a)405nm半导体激光器;(b)激光器电流对应功率
Fig.2  激光照射10min时的XRD(a)和Raman(b)图谱
Fig.3  反应10min时的SEM图
(a)KNb3O8纳米线;(b)带有催化剂的KNb3O8纳米线
Fig.4  SLS生长机制

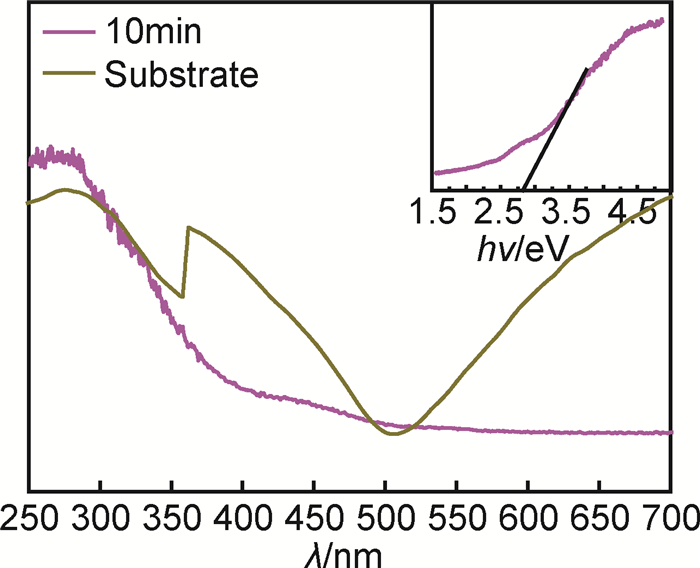

Fig.5  照射时间为10min时的紫外-可见吸收光谱图

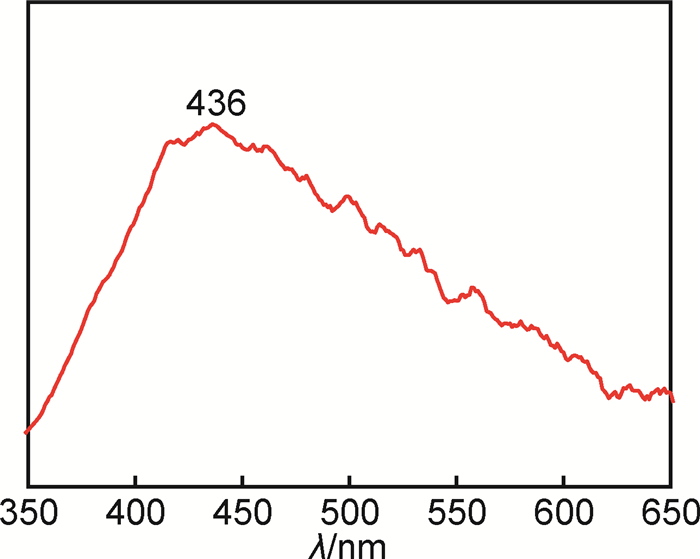

Fig.6  照射时间为10min时的PL图谱
1 GASPERIN P M . Structure du triniobate(Ⅴ) de potassium KNb3O8, un niobate lamellaire[J]. Acta Cryst, 1982, 38 (7): 2024- 2026.
doi: 10.1107/S056774088200781X
2 刘阳龙, 郑玉婴, 曹宁宁, 等. 水热法合成铁掺杂的硫化镉及光催化性能[J]. 材料工程, 2017, 45 (10): 12- 17.
doi: 10.11868/j.issn.1001-4381.2015.000498
2 LIU Y L , ZHENG Y Y , CAO Y Y , et al. Synthesis and photocatalytic activity of iron doped CdS by hydrothermal method[J]. Journal of Materials Engineering, 2017, 45 (10): 12- 17.
doi: 10.11868/j.issn.1001-4381.2015.000498
3 王艳春, 曾效舒, 敖志强, 等. 热还原石墨烯的制备及其对重金属Pb2+的吸附性[J]. 材料工程, 2017, 45 (10): 6- 11.
doi: 10.11868/j.issn.1001-4381.2016.000815
3 WANG Y C , ZENG X S , AO Z Q , et al. Preparation of graphene via thermal reduction and its adsorption capacity for heavy metal Pb2+[J]. Journal of Materials Engineering, 2017, 45 (10): 6- 11.
doi: 10.11868/j.issn.1001-4381.2016.000815
4 ZHANG T , LEI W , LIU P , et al. Insights into the structure-photoreactivity relationships in well-defined perovskite ferroelectric KNbO3 nanowires[J]. Chem Sci, 2015, 6 (7): 4118- 4123.
doi: 10.1039/C5SC00766F
5 WAROQUET A , DEMANGE V , HAKMEH N , et al. Epitaxial growth and cationic exchange properties of layered KNb3O8 thin films[J]. RSC Adv, 2017, 7 (25): 15482- 15491.
doi: 10.1039/C7RA00261K
6 ZHAN J , LIU D , DU W , et al. Synthesis and characterization of high crystallinity, well-defined morphology stoichiometric lithium niobate nanocrystalline[J]. Journal of Crystal Growth, 2011, 318 (1): 1121- 1124.
doi: 10.1016/j.jcrysgro.2010.11.052
7 SHVALAGIN V V , GRODZYUK G Y , ANDRYUSHINA N S , et al. Photocatalytic activity of layered KNb3O8 and K3H3Nb10.8O30 in gas-phase decomposition of methanol[J]. Theoretical and Experimental Chemistry, 2017, 52 (6): 337- 341.
doi: 10.1007/s11237-017-9487-9
8 MATOS J , LANFREDI S , MONTANA R , et al. Photochemical reactivity of apical oxygen in KSr2Nb5O15materials for environmental remediation under UV irradiation[J]. J Colloid Interface Sci, 2017, 496 (14): 211- 221.
9 SUZUKI S , TESHIMA K , YAMAGUCHI A , et al. Fabrication and photocatalytic performance of highly crystalline nanosheets derived from flux-grown KNb3O8 crystals[J]. Cryst Eng Comm, 2012, 14 (3): 987- 992.
doi: 10.1039/C1CE06035J
10 LIANG B , ZHANG N , CHEN C , et al. Hierarchical yolk-shell layered potassium niobate for tuned pH-dependent photocatalytic H2 evolution[J]. Catal Sci Technol, 2017, 7 (4): 1000- 1005.
doi: 10.1039/C6CY02640K
11 KUDO A . Effect of ion exchange on photoluminescence of layered niobates K4Nb6O17 and KNb3O8[J]. J Phys Chem, 1996, 28 (6): 17323- 17326.
12 ZHANG G , HE F , ZOU X , et al. Hydrothermal synthesis and photocatalytic property of KNb3O8 with nanometer leaf-like network[J]. Journal of Alloys and Compounds, 2007, 427 (1): 82- 86.
13 GEORGIEV R , GEORGIEVA B , VASILEVA M , et al. Optical properties of sol-gel Nb2O5 films with tunable porosity for sensing applications[J]. Advances in Condensed Matter Physics, 2015, 2015 (3): 244- 247.
14 YU B , CAO B , CAO H , et al. Synthesis and nonlinear optical properties of single-crystalline KNb3O8 nanowires[J]. Nanotechnology, 2013, 24 (8): 085704.
doi: 10.1088/0957-4484/24/8/085704
15 ZHAN Z Y , XU C Y , ZHEN L , et al. Large-scale synthesis of single-crystalline KNb3O8 nanobelts via a simple molten salt method[J]. Ceramics International, 2010, 36 (2): 679- 682.
doi: 10.1016/j.ceramint.2009.11.007
16 YEO J , HONG S , KIM G , et al. Laser-Induced hydrothermal growth of heterogeneous metal-oxide nanowire on flexible substrate by laser absorption layer design[J]. American Chemical Society, 2015, 9 (6): 6059- 6068.
17 ZHANG G , NAKAMURA A , AOKI T , et al. Au-assisted growth approach for vertically aligned ZnO nanowires on Si substrate[J]. Applied Physics Letters, 2006, 89 (11): 113112.
doi: 10.1063/1.2207832
18 NAM W , MITCHELL J I , YE P D , et al. Laser direct synthesis of silicon nanowire field effect transistors[J]. Nanotechnology, 2015, 26 (5): 055306.
doi: 10.1088/0957-4484/26/5/055306
19 LIN L , LIU L , PENG P , et al. In situ nanojoining of Y-and T-shaped silver nanowires structures using femtosecond laser radiation[J]. Nanotechnology, 2016, 27 (12): 125201.
doi: 10.1088/0957-4484/27/12/125201
20 IN J B , KWON H J , LEE D , et al. In situ monitoring of laser-assisted hydrothermal growth of ZnO nanowires:thermally deactivating growth kinetics[J]. Small, 2014, 10 (4): 741- 749.
doi: 10.1002/smll.201301599
21 HWANG D J , RYU S G , GRIGOROPOULOS C P . Multi-parametric growth of silicon nanowires in a single platform by laser-induced localized heat sources[J]. Nanotechnology, 2011, 22 (38): 385303.
doi: 10.1088/0957-4484/22/38/385303
22 HAN L L , XIN H L , KULINICH S A , et al. Hierarchical, ultrathin single-crystal nanowires of CdS conveniently produced in laser-induced thermal field[J]. Langmuir, 2015, 31 (29): 8162- 8167.
doi: 10.1021/acs.langmuir.5b01923
23 PAENG D , LEE D , YEO J , et al. Laser-induced reductive sintering of nickel oxide nanoparticles under ambient conditions[J]. The Journal of Physical Chemistry C, 2015, 119 (11): 6363- 6372.
doi: 10.1021/jp512776p
24 SUN Y , ZHANG Z , LIU L , et al. FTIR, Raman and NMR investigation of CaO-SiO2-P2O5 and CaO-SiO2-TiO2-P2O5 glasses[J]. Journal of Non-Crystalline Solids, 2015, 420 (15): 26- 33.
25 SUN Y , ZHANG Z . Structural roles of boron and silicon in the CaO-SiO2-B2O3 glasses using FTIR, Raman, and NMR spectroscopy[J]. Metallurgical and Materials Transactions B, 2015, 46 (4): 1549- 1554.
doi: 10.1007/s11663-015-0374-2
26 TRENTLER T J . Solution-liquid-solid growth of crystalline Ⅲ-Ⅴ semiconductors:an analogy to vapor-liquid-solid growth[J]. Science, 1995, 270 (5243): 1791- 1794.
doi: 10.1126/science.270.5243.1791
27 ZHANG T , LEI W , LIU P , et al. Insights into the structure-photoreactivity relationships in well-defined perovskite ferroelectric KNbO3 nanowires[J]. Chem Sci, 2015, 6 (7): 4118- 4123.
doi: 10.1039/C5SC00766F
28 SAITO K , KUDO A . Niobium-complex-based syntheses of sodium niobate nanowires possessing superior photocatalytic properties[J]. Inorg Chem, 2010, 49 (5): 2017- 2019.
doi: 10.1021/ic902107u
