Additive-assisted hydrothermal route to synthesize nanoporous carbon microspheres with controlled particle size
Shun-jian XU1,2,*()
1 School of Mechanical and Electrical Engineering, Xinyu University, Xinyu 338004, Jiangxi, China
2 Xinyu Institute of New Energy, Xinyu University, Xinyu 338004, Jiangxi, China
全文: PDF(7267 KB)   HTML ( 12 )
输出: BibTeX | EndNote (RIS)
摘要

以KCl和HCl为添加剂,以果糖和淀粉为前躯体,通过水热处理和后续热解制备碳微球,探讨添加剂的作用机制。结果表明:碳微球具有纳米孔隙结构和表面含氧官能团。在2种前躯体中,添加剂均能促使具有规则球形的微球尺寸呈不同幅度的增大,平均直径控制在0.53~6.67μm之间。碳微球的形状和尺寸源于水热处理,而热解促使微球的结构由聚合物向玻璃碳转变,同时伴随着超过20%的尺寸收缩和近50%的质量损失。在水热反应过程中,氯化氢主要促进前期的多糖水解动力学以及单糖脱水与分裂动力学,而氯化钾主要加速后期微球的生长动力学。微球的生长涉及2种主要模式:构造单元交联生长和微粒合并生长。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
徐顺建
关键词 添加剂碳水化合物水热反应碳微球
Abstract

Carbon microspheres were synthesized by the hydrothermal treatment of saccharides (fructose and starch) in the presence of additives (HCl and KCl) and the subsequent pyrolysis, and the role of the additives in the hydrothermal reaction was also investigated. The results show that carbon microspheres with well-developed nanoporous structures and surface oxygen functional groups are obtained. Both of the additives in the saccharide solutions induce the enlargement of the size of the microspheres. The mean diameter of the microspheres can be tailored in a range from 0.53μm to 6.67μm. The morphology of the microspheres depends on the reaction kinetics during hydrothermal treatment. During pyrolysis, the microstructure of the microspheres is transformed from polymer to glassy carbon, which is accompanied by a mass loss of about 50% and a contraction of over 20% in scale. Both of the additives display distinct effects on the stages of the hydrothermal reaction of the saccharide solutions. The HCl mainly accelerates the hydrolysis kinetic of polysaccharide and the dehydration and fragmentation of monosaccharide, while the KCl chiefly enhances the growth kinetic of the microspheres. The growth of the microspheres is performed through two main ways:the reactive oxygen functionalities present in both the surfaces of the microspheres and the building units and the merged fine microspheres.

Key wordsadditive    carbohydrate    hydrothermal reaction    carbon microsphere
收稿日期: 2017-03-01      出版日期: 2019-05-17
中图分类号:  TB383
基金资助:江西省青年科学家培养对象计划(20133BCB23035);江西省自然科学基金(20161BAB206106);江西省高等学校科技落地计划(KJLD13100);江西省教育厅科技项目(GJJ171060)
通讯作者: 徐顺建     E-mail: xushunjian@126.com
作者简介: 徐顺建(1978-), 男, 副教授, 博士, 主要从事新型碳材料的制备与应用研究, 联系地址:江西省新余市阳光大道2666号新余学院机电工程学院(338004), E-mail:xushunjian@126.com
引用本文:
徐顺建. 添加剂辅助水热热解制备尺寸可控纳米孔碳微球[J]. 材料工程, 2019, 47(5): 137-144.
Shun-jian XU. Additive-assisted hydrothermal route to synthesize nanoporous carbon microspheres with controlled particle size. Journal of Materials Engineering, 2019, 47(5): 137-144.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000224      或      http://jme.biam.ac.cn/CN/Y2019/V47/I5/137
Fig.1  碳微球的XRD谱图

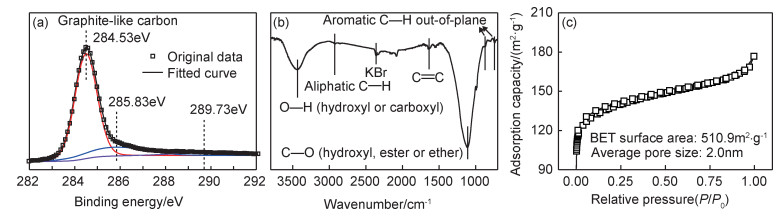

Fig.2  碳微球的XPS C1s谱图(a),FT-IR光谱图(b)和N2吸附-脱附等温曲线(c)

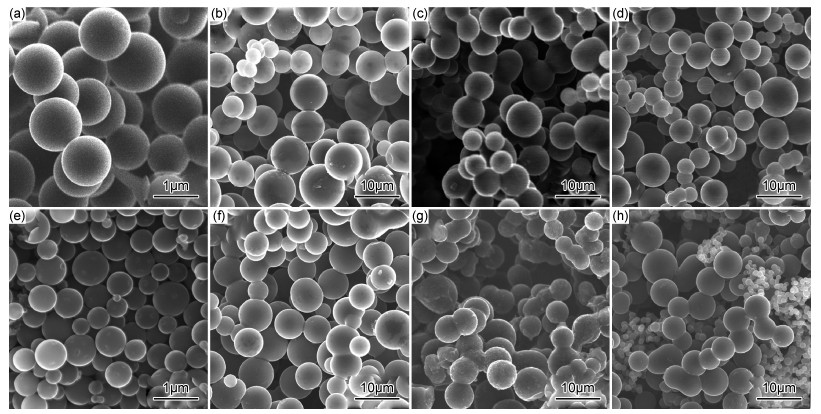

Fig.3  碳微球的SEM图
(a)CS-F; (b)CS-FK; (c)CS-FH1;(d)CS-FH2;(e)CS-S; (f)CS-SK; (g)CS-SH1;(h)CS-SH2

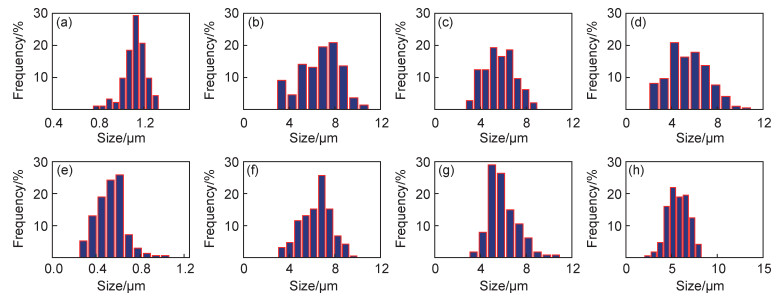

Fig.4  碳微球的尺寸分布图
(a)CS-F; (b)CS-FK; (c)CS-FH1;(d)CS-FH2;(e)CS-S; (f)CS-SK; (g)CS-SH1;(h)CS-SH2
Fig.5  未经热解处理的碳微球的XRD谱图

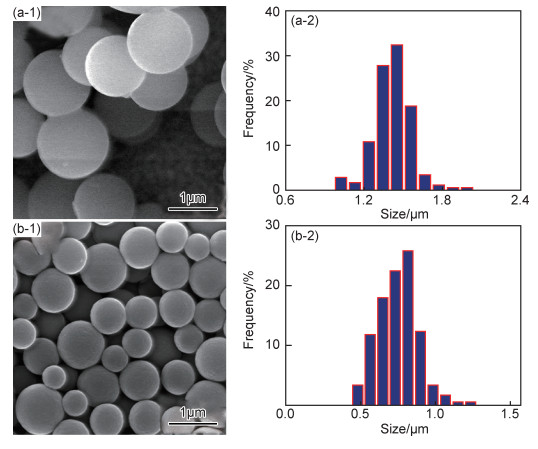

Fig.6  未经热解处理的碳微球CS-F,CS-S的SEM形貌(1)与尺寸分布图(2)
(a)CS-F;(b)CS-S

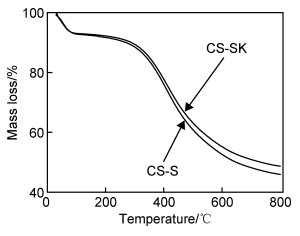

Fig.7  未经热解处理的碳微球的TG曲线
Fig.8  清洗废液干燥后获得的固体粉末的FT-IR光谱图
Fig.9  水热处理2h后不同淀粉溶液的UV-Vis谱图(插图为经水热处理不同时间后的宏观照片)

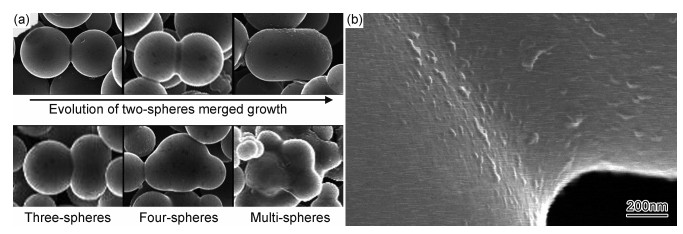

Fig.10  合并状态的碳微球SEM形貌(a)及2球连接处的局部放大SEM形貌(b)
