共聚低热膨胀聚酰亚胺薄膜的制备与表征
张明艳1,2, 高升1, 吴子剑1,2,*(), 崔宏玉1, 高岩1
1 哈尔滨理工大学 材料科学与工程学院, 哈尔滨 150040
2 哈尔滨理工大学 工程电介质及其应用技术教育部重点实验室, 哈尔滨 150080
Preparation and characterization of low expansion transparent copolyimide films
Ming-yan ZHANG1,2, Sheng GAO1, Zi-jian WU1,2,*(), Hong-yu CUI1, Yan GAO1
1 School of Materials Science and Engineering, Harbin University of Science and Technology, Harbin 150040, China
2 Engineering Dielectrics and Its Application Key Laboratory(Ministry of Education), Harbin University of Science and Technology, Harbin 150080, China
全文: PDF(901 KB)   HTML ( 8 )
输出: BibTeX | EndNote (RIS)
摘要

以4,4'-(六氟异丙烯)二酞酸酐(6FDA)为含氟二酐,4,4'-二氨基-2,2'-双三氟甲基联苯(TFMB)为含氟二胺,通过引入分子结构相对对称的刚性单体1,2,4,5-均苯四甲酸二酐(PMDA)进行共聚合成了5种含氟比例不同的透明聚酰亚胺薄膜,并对其性能进行了表征。分析表明:引入刚性单体共聚后薄膜的热稳定性和耐热性有所提高;薄膜的介电常数随着PMDA含量的上升而增加;共聚薄膜在可见光领域的透光率低于均聚薄膜;拉伸实验显示在添加少量PMDA后,薄膜的拉伸强度和弹性模量有所增大,但当PMDA含量过高时其力学性能反而下降;随着PMDA含量的增加,薄膜的热膨胀系数明显降低。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
张明艳
高升
吴子剑
崔宏玉
高岩
关键词 聚酰亚胺薄膜透明含氟共聚热膨胀系数
Abstract

Five transparent polyimide thin films with different proportions of 1, 2, 4, 5-, pyromellitic dianhydride (PMDA) were made by copolymerization of 4, 4'-(six fluoro isopropenyl) two phthalic anhydride (6FDA), 4, 4'-two amino -2, 2'-double three trifluoromethyl biphenyl (TFMB) and PMDA, and their properties were characterized. The results show that thermal stability and heat resistance are increased after the introduction of rigid monomers; the dielectric constant of the films is increased with the increase of PMDA content; homopolymer film has higher light transmission rate than copolymer films in visible light; tensile test shows that adding a small amount of PMDA, the tensile strength and elastic modulus of the film are increased, but when the content of PMDA is higher than 40%, the mechanical properties are decreased; the coefficient of thermal expansion of the films are decreased obviously while PMDA content is increased.

Key wordspolyimide film    transparent    fluorine containing    copolymerization    coefficient of thermal expansion
收稿日期: 2017-06-27      出版日期: 2019-05-17
中图分类号:  TQ317.3
基金资助:国家自然基金面上项目(51677045);黑龙江省博士后面上项目一等资助(LBH-Z16089);中国博士后面上项目一等资助(2017M610212)
通讯作者: 吴子剑     E-mail: zijian.wu@hrbust.edu.com
作者简介: 吴子剑(1983-), 男, 讲师, 博士, 研究方向:树脂基复合材料, 联系地址:哈尔滨市香坊区林园路4号哈尔滨理工大学南区(150040), E-mail:zijian.wu@hrbust.edu.com
引用本文:
张明艳, 高升, 吴子剑, 崔宏玉, 高岩. 共聚低热膨胀聚酰亚胺薄膜的制备与表征[J]. 材料工程, 2019, 47(5): 153-158.
Ming-yan ZHANG, Sheng GAO, Zi-jian WU, Hong-yu CUI, Yan GAO. Preparation and characterization of low expansion transparent copolyimide films. Journal of Materials Engineering, 2019, 47(5): 153-158.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000830      或      http://jme.biam.ac.cn/CN/Y2019/V47/I5/153
Number Monomer molar ratio Relative content of PMDA/%
PI-0 n(6FDA):n(TFMB)=1:1 0
PI-1 n(6FDA):n(PMDA):n(TFMB)=9:1:10 10
PI-2 n(6FDA):n(PMDA):n(TFMB)=8:2:10 20
PI-3 n(6FDA):n(PMDA):n(TFMB)=7:3:10 30
PI-4 n(6FDA):n(PMDA):n(TFMB)=6:4:10 40
Table 1  单体配比与试样编号

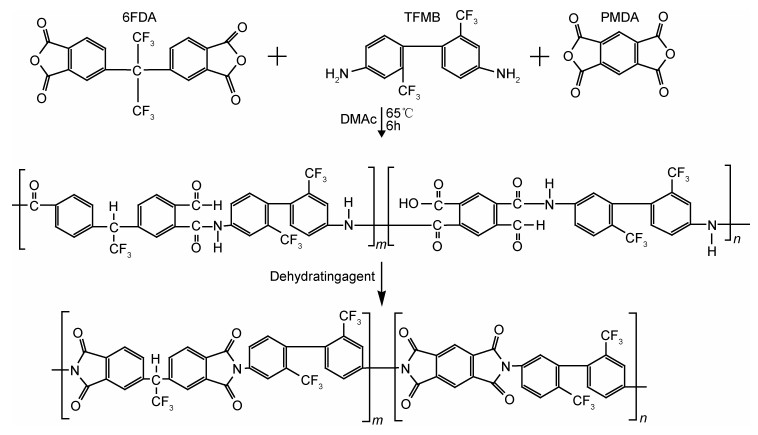

Fig.1  聚酰亚胺合成反应式
Fig.2  聚酰亚胺薄膜的红外吸收光谱
Film t0/s t/s [η]/(dL·g-1) ηr/(dL·g-1)
PI-0 144.38 232.45 1.61 0.95
PI-1 144.38 242.56 1.68 1.04
PI-2 144.38 254.11 1.76 1.13
PI-3 144.38 272.89 1.89 1.27
PI-4 144.38 291.65 2.02 1.41
Table 2  PAA溶液的黏度数据
Film Td5%/℃ Td10%/℃ Residual mass/% T>g/℃
PI-0 498.51 533.02 48.12 290.44
PI-1 521.53 544.52 49.72 297.28
PI-2 525.33 548.33 50.48 303.60
PI-3 529.17 552, 17 49.84 316.75
PI-4 536.83 559.83 54.47 323.36
Table 3  聚酰亚胺薄膜的热性能

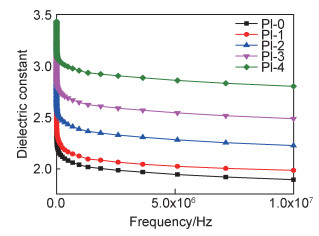

Fig.3  薄膜的介电常数与频率的关系
Fig.4  聚酰亚胺薄膜的紫外-可见光谱
Film λ0/nm T450/% T500/%
PI-0 339 90.66 92.74
PI-1 338 90.31 92.67
PI-2 339 89.14 92.65
PI-3 348 88.03 92.46
PI-4 359 82.07 88.24
Table 4  薄膜的光学性能
Film Tensile strength/MPa Elongation at break/% Modulus of elasticity/GPa
PI-0 87.16 3.03 1.62
PI-1 95.31 2.69 1.76
PI-2 114.38 2.62 1.89
PI-3 125.35 2.44 2.12
PI-4 108.28 2.41 1.80
Table 5  薄膜的力学性能
