烧结颈分布对3D打印覆膜Al2O3零件强度的影响
赵枢明, 薛铠华, 杨通, 张雪, 姚山()
大连理工大学 材料科学与工程学院, 辽宁 大连 116024
Effect of sintered neck distribution on strength of 3D printing coated Al2O3 parts
Shu-ming ZHAO, Kai-hua XUE, Tong YANG, Xue ZHANG, Shan YAO()
School of Materials Science and Engineering, Dalian University of Technology, Dalian 116024, Liaoning, China
全文: PDF(7516 KB)   HTML ( 13 )
输出: BibTeX | EndNote (RIS)
摘要

从烧结颈的尺寸及分布入手,研究覆膜Al2O3粉末的粒径分布对零件强度的影响。使用UV激光对覆膜粉末进行原位加热,在影像测量仪下测量并获得烧结颈束腰直径与颗粒直径之间的关系。建立颗粒堆积模型,将烧结颈分布与颗粒配位点对应,计算得出某一截面上被断开的烧结颈的投影面积比例。结果表明:对于2%(质量分数)树脂含量的覆膜Al2O3粉末,随着颗粒直径从75μm增长至375μm,烧结颈的束腰直径从40μm增长至100μm。而堆积模拟结果显示,随着颗粒直径从75~107μm区间增加至300~375μm区间,烧结颈的投影面积比例从0.2557降低至0.0823,与实验测量的覆膜Al2O3粉末的抗拉强度的趋势一致。将70/100,100/140目的颗粒按照质量比0:10,1:9,2:8,3:7,4:6,5:5,6:4,7:3,8:2,9:1,10:0混合后计算,发现投影面积比例从0.1772降低至0.1264,孔隙率从0.4511升高至0.4633。综合考虑抗拉强度及透气性,得出优化结果为两者比例为7:3时,投影面积比为0.1481,堆积孔隙率为0.4596。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
赵枢明
薛铠华
杨通
张雪
姚山
关键词 烧结颈颗粒堆积覆膜Al2O3粉末抗拉强度3D打印激光选区烧结
Abstract

The influence of the particle size distribution on the strength of the coated Al2O3 parts was studied, through the size and distribution of the sintered neck. The powder was heated in situ by a UV laser, and the relationship between the sintered neck waist diameter and the particle diameter was obtained under an image measuring apparatus. A particle packing model was established, and the distribution of the sintered neck was corresponding to the particle coordination point, then the projected area ratio of the sintered neck that was broken in a certain section was calculated. As for the coated Al2O3 powder with the resin content of 2%(mass fraction), the results indicate that the sintered neck waist diameter increases from 40μm to 100μm as the particle diameter increases from 75μm to 375μm. The packing simulation results show that the projected area ratio decreases from 0.2557 to 0.0823, as the particle diameter increases from 75-107μm to 300-375μm, which is consistent with the experimentally measured tensile strength of the coated Al2O3 powder. The 70/100, 100/140 mesh powder are mixed to simulate based on the mass ratios of 0:10, 1:9, 2:8, 3:7, 4:6, 5:5, 6:4, 7:3, 8:2, 9:1, 10:0. The projected area ratio decreases from 0.1772 to 0.1264 and the porosity increases from 0.4511 to 0.4633. Considering the tensile strength and gas permeability, the optimization result is that the ratio is 7:3, the projected area ratio is 0.1481 and the porosity is 0.4596.

Key wordssintered neck    particle packing    coated Al2O3 powder    tensile strength    3D printing    select-ive laser sintering
收稿日期: 2018-09-17      出版日期: 2019-08-22
中图分类号:  TB332
基金资助:国家高技术研究发展计划(863计划)(2015AA042502)
通讯作者: 姚山     E-mail: yaoshan@dlut.edu.cn
作者简介: 姚山(1966-), 男, 教授, 硕士, 从事砂型激光3D打印技术及应用研究, 联系地址:辽宁省大连市甘井子区凌工路2号大连理工大学铸造中心311室(116024), E-mail:yaoshan@dlut.edu.cn
引用本文:
赵枢明, 薛铠华, 杨通, 张雪, 姚山. 烧结颈分布对3D打印覆膜Al2O3零件强度的影响[J]. 材料工程, 2019, 47(8): 132-140.
Shu-ming ZHAO, Kai-hua XUE, Tong YANG, Xue ZHANG, Shan YAO. Effect of sintered neck distribution on strength of 3D printing coated Al2O3 parts. Journal of Materials Engineering, 2019, 47(8): 132-140.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.001092      或      http://jme.biam.ac.cn/CN/Y2019/V47/I8/132

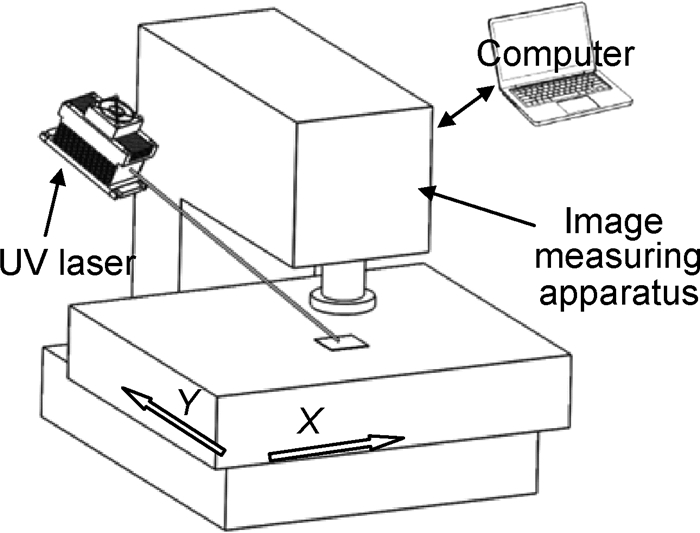

Fig.1  烧结颈束腰直径测量示意图
Fig.2  覆膜Al2O3颗粒
(a)加热前;(b)加热后
Fig.3  烧结颈模型及覆膜Al2O3的SEM断口形貌
(a)加热前颗粒接触状态;(b)加热后的烧结颈;(c)70~100目覆膜Al2O3的SEM断口形貌;(d)烧结颈在某一方向的受力

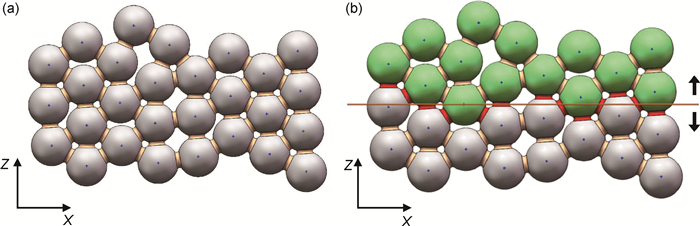

Fig.4  堆积模型中的烧结颈计算
(a)颗粒堆积及烧结颈状态;(b)Z向截面及断开的烧结颈

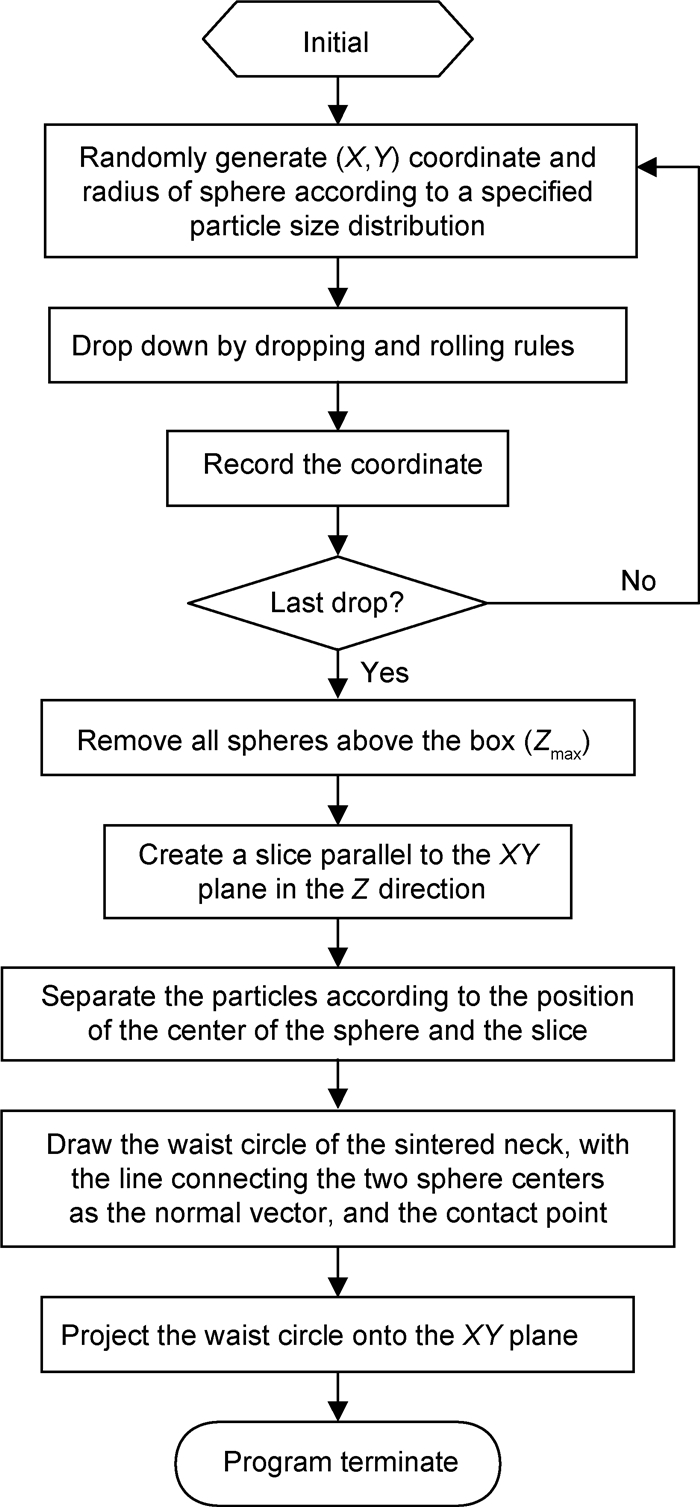

Fig.5  颗粒堆积及烧结颈分布模型的流程
Sieve size/mesh Particle diameter/μm
40/50 300-375
50/70 214-300
70/100 150-214
100/140 107-150
140/200 75-107
Table 1  实验筛分的粒度及模拟中使用的参数

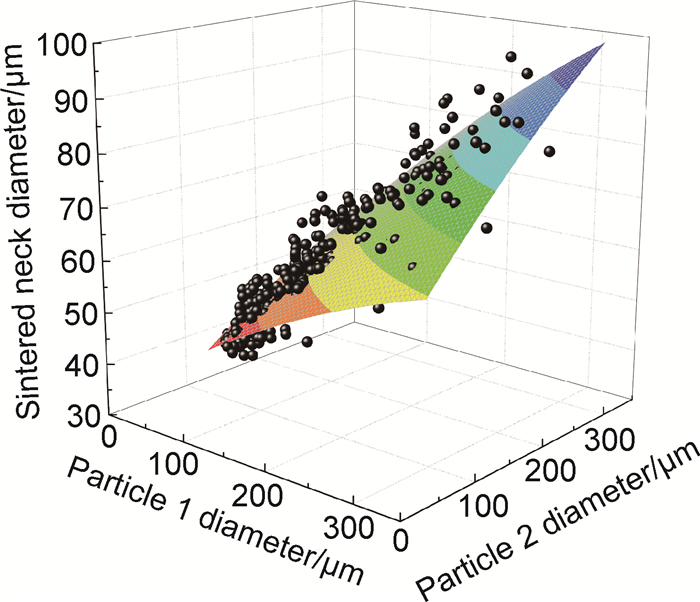

Fig.6  烧结颈束腰直径与颗粒直径的关系

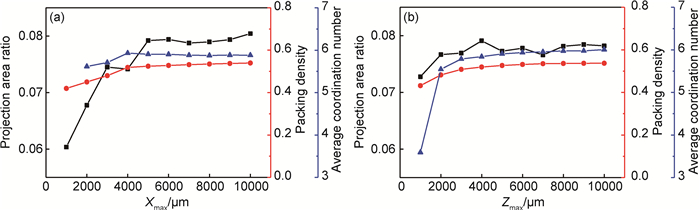

Fig.7  单颗粒堆积模拟结果
(a)X向容器尺寸;(b)Z向容器尺寸

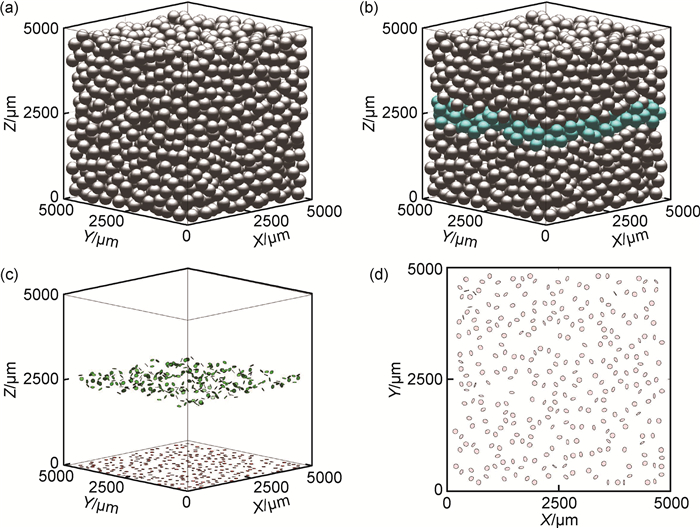

Fig.8  直径为375μm的单组元颗粒的堆积结构及烧结颈分布
(a)颗粒堆积三维视图;(b)z=Zmax/2处颗粒查找;(c)烧结颈束腰圆集合;(d)束腰圆在XY面上的投影

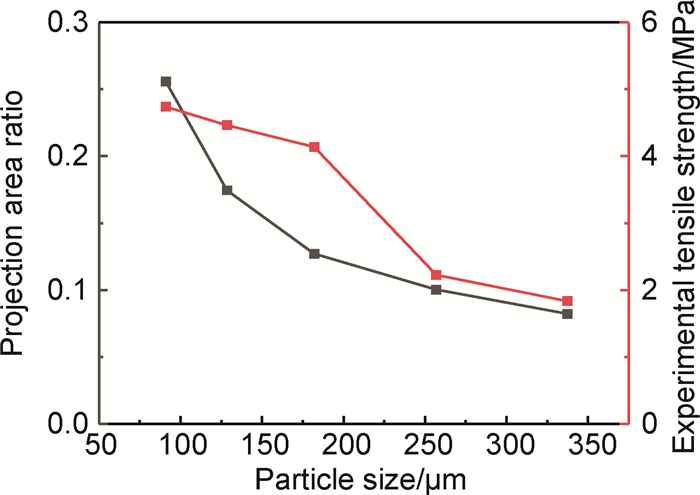

Fig.9  不同粒径的投影面积比例与实测抗拉强度

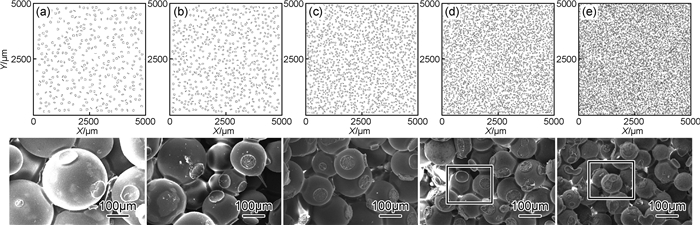

Fig.10  不同粒径的烧结颈投影及对应的覆膜Al2O3 SEM断口形貌
(a)300~375μm;(b)214~300μm;(c)150~214μm;(d)107~150μm;(e)75~107μm

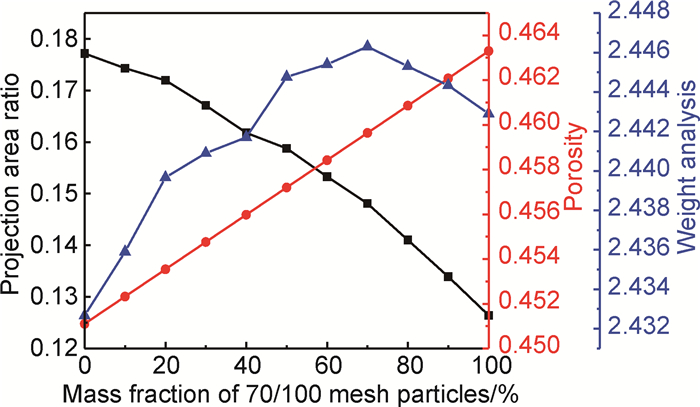

Fig.11  70/100,100/140目颗粒不同混合比例

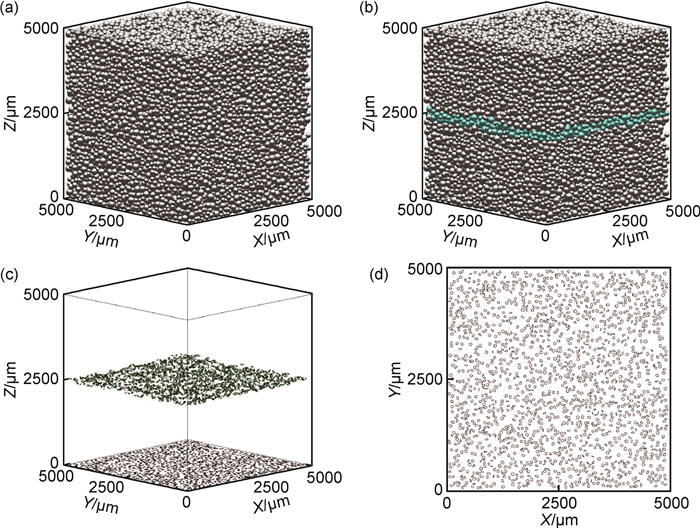

Fig.11  优化比例后的堆积结构及烧结颈分布
(a)颗粒堆积三维视图;(b)z=Zmax/2处查找颗粒;(c)烧结颈束腰圆集合;(d)束腰圆在XY面上的投影
