Ti-22Al-24Nb-0.5Y合金流变行为及BP神经网络高温本构模型
周峰, 王克鲁, 鲁世强, 万鹏, 陈虚怀
南昌航空大学 航空制造工程学院, 南昌 330063
Flow behavior and BP neural network high temperature constitutive model of Ti-22Al-24Nb-0.5Y alloy
ZHOU Feng, WANG Ke-lu, LU Shi-qiang, WAN Peng, CHEN Xu-huai
School of Aeronautical Manufacturing Engineering, Nanchang Hangkong University, Nanchang 330063, China
全文: PDF(2620 KB)   HTML()
输出: BibTeX | EndNote (RIS)

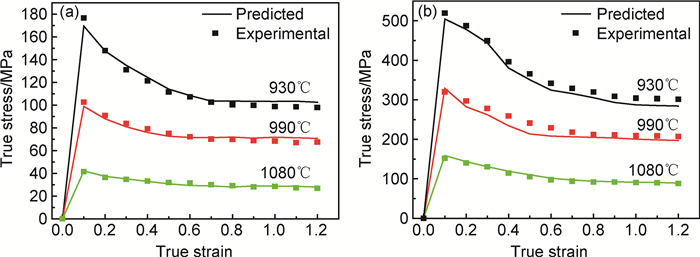

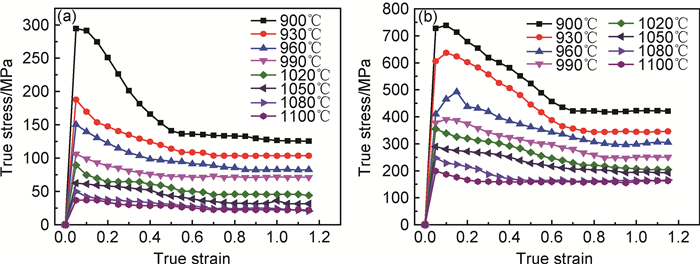

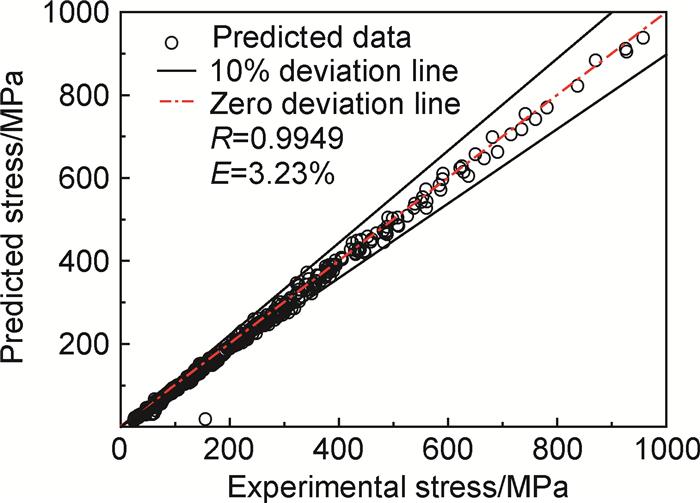

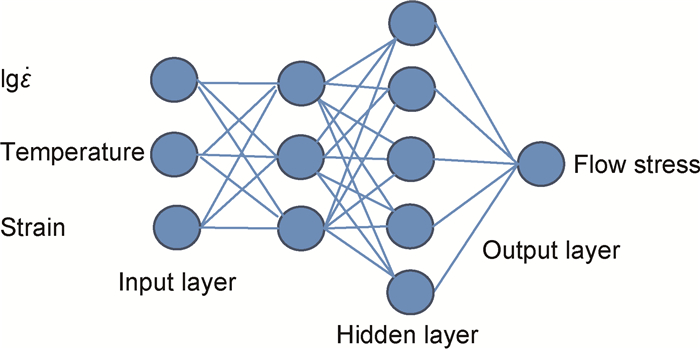

摘要 利用Gleeble-3500热模拟试验机进行等温恒应变热压缩实验,以实验获得的数据为基础,研究Ti-22Al-24Nb-0.5Y合金流变行为,通过正交实验对影响合金的流变应力因素进行分析,并建立基于BP神经网络的合金高温本构关系模型。结果表明:影响合金流变应力的主要因素依次为应变速率、变形温度和应变量;Ti-22Al-24Nb-0.5Y合金在热变形时的流变应力对应变速率和变形温度都较为敏感。当变形温度较低,应变速率较高时,合金变形呈流变软化特征,当变形温度较高,应变速率较低时,合金变形趋向于稳态流动;利用BP神经网络建立的合金高温本构关系模型,具有较高的精度,其相关性系数达到0.9949,平均相对误差在3.23%,预测值偏差在10%以内的数据点达98.79%,该预测模型可作为Ti2AlNb基合金塑性成形过程有限元模拟的本构关系。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
周峰
王克鲁
鲁世强
万鹏
陈虚怀
关键词 Ti-22Al-24Nb-0.5Y合金流变应力正交实验BP神经网络本构关系模型
Abstract:Isothermal constant strain thermal compression test was carried out by Gleeble-3500 thermal simulation test machine. Based on the experimental data, the flow behavior of Ti-22Al-24Nb-0.5Y alloy was studied. The factors affecting the flow stress of the alloy were analyzed by orthogonal test, and a constitutive model based on BP neural network was established. The results show that the main factors affecting the flow stress of the alloy successively are the strain rate, deformation temperature and strain. The flow stress of Ti-22Al-24Nb-0.5Y alloy in hot deformation is more sensitive to the strain rate and the deformation temperature. The deformation of the alloy is characterized by flow softening at low deformation temperature and high strain rate, but the deformation tends to steady flow with high deformation temperature and low strain rate. The high temperature constitutive model of alloy established by BP neural network has high accuracy. The correlation coefficient reaches 0.9949, the average relative error is 3.23%, the predictive value with the deviation within 10% data points reaches up to 98.79%, and the prediction model can be used as a constitutive relation for the finite element simulation in Ti2AlNb based alloy plastic forming process.
Key wordsTi-22Al-24Nb-0.5Y alloy    flow stress    orthogonal test    BP neural network    constitutive relationship model
收稿日期: 2017-12-17      出版日期: 2019-08-22
中图分类号:  TG146.2
通讯作者: 王克鲁(1968-),男,教授,博士,研究方向:航空难变形材料与新型金属材料,联系地址:江西省南昌市丰和南大道696号南昌航空大学M栋教学楼(330063),E-mail:wangkelu@126.com     E-mail: wangkelu@126.com
引用本文:
周峰, 王克鲁, 鲁世强, 万鹏, 陈虚怀. Ti-22Al-24Nb-0.5Y合金流变行为及BP神经网络高温本构模型[J]. 材料工程, 2019, 47(8): 141-146.
ZHOU Feng, WANG Ke-lu, LU Shi-qiang, WAN Peng, CHEN Xu-huai. Flow behavior and BP neural network high temperature constitutive model of Ti-22Al-24Nb-0.5Y alloy. Journal of Materials Engineering, 2019, 47(8): 141-146.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.001548      或      http://jme.biam.ac.cn/CN/Y2019/V47/I8/141
[1] LI S Q, MAO Y, ZHANG J W, et al. Effect of microstructure on tensile properties and fracture behavior of intermetallic Ti2AlNb alloys[J].Transactions of Nonferrous Metals Society of China, 2002, 12(4):582-586.
[2] SHAGIEV M R, GALEYEV R M, VALIAKHMETOV O R, et al. Improved mechanical properties of Ti2AlNb-based intermeta-llic alloys and composites[J]. Advanced Materials Research, 2009, 59:105-108.
[3] 沈军,冯艾寒. Ti2AlNb基合金微观组织调制及热成形研究进展[J]. 金属学报, 2013, 49(11):1286-1294. SHEN J, FENG A H. Recent advances on microstructural contr-olling and hot forming of Ti2AlNb-based alloys[J]. Acta Metall-urgica Sinica, 2013, 49(11):1286-1294.
[4] YAN J, PAN Q L, LI A D, et al. Flow behavior of Al-6.2Zn-0.70Mg-0.30Mn-0.17Zr alloy during hot compressive deforma-tion based on Arrhenius and ANN models[J]. Transactions of Nonferrous Metals Society of China, 2017, 27(3):638-647.
[5] 张麦仓,罗子健,曾凡昌. 应用多元非线性回归方法建立FGH95合金的本构关系[J]. 材料工程, 1999(1):20-22. ZHANG M C, LUO Z J, ZENG F C. Establishment of constitutive relationship for FGH95 alloy using multiple nonlinear regression method[J]. Journal of Materials Engineering, 1999(1):20-22.
[6] 陈慧琴,林海,郭灵,等. TC11钛合金热变形特性分析及其本构关系的建立[J]. 材料工程, 2007(8):32-36. CHEN H Q, LIN H, GUO L, et al. Hot deformation charact-eristics and constitutive relation of TC11 alloy[J]. Journal of Materials Engineering, 2007(8):32-36.
[7] 焦李成. 神经网络系统理论[M]. 西安:西安电子科技大学出版社, 1990. JIAO L C. Neural network system theory[M]. Xi'an:Xidian University Press,1990.
[8] 王克鲁,鲁世强,李鑫,等. Ti-6.5Al-3.5Mo-1.5Zr-0.3Si合金本构关系的BP神经网络模型[J]. 特种铸造及有色合金, 2008, 28(8):575-578. WANG K L, LU S Q, LI X, et al. A constitutive relation model for the Ti-6.5Al-3.5Mo-1.5Zr-0.3Si alloy based on BP neural network[J]. Special Casting & Nonferrous Alloys, 2008,28(8):575-578.
[9] 刘雪峰,马胜军,刘锦平,等. Cu-12%Al合金高温压缩变形过程本构关系的BP神经网络模型[J]. 材料工程, 2009(1):10-14. LIU X F, MA S J, LIU J P, et al. BP neural networks models for constitutive relationship during high temperature deformation process of Cu-12%Al alloy[J]. Journal of Materials Engineering,2009(1):10-14.
[10] WANG Z, MAO F, HUANG X P, et al. Orthogonal test design for preparation of TiO2/graphene composites and study on its photocatalytic activity[J]. Rare Metals, 2011, 30(Suppl 1):271-275.
[11] JING L J, CUI G W, FENG Q, et al. Orthogonal test design for optimization of the extraction of polysaccharides from Lycium barbarum and evaluation of its anti-athletic fatigue activity[J]. Journal of Medicinal Plants Research, 2009, 3(5):433-437.
[12] 杨雄,刘昌明,易松林,等. 水平射流钻头真空扩散焊接工艺正交优化试验[J]. 石油天然气学报, 2007, 29(5):158-160. YANG X, LIU C M, YI S L, et al. Orthogonal optimization test of vacuum diffusion welding of horizontally projected jet bits[J]. Journal of Oil and Gas Technology, 2007, 29(5):158-160.
[13] 王克鲁,鲁世强,李鑫,等. 变形温度对TC11合金流动应力及组织的影响[J]. 特种铸造及有色合金, 2008, 28(3):165-167. WANG K L, LU S Q, LI X, et al. Effects of temperature on flow stress and microstructure of TC11 alloy at high strain rate[J].Special Casting & Nonferrous Alloys,2008,28(3):165-167.
[14] MURTY S V S N, RAO B N. On the flow localization concepts in the processing maps of titanium alloy Ti-24Al-20Nb[J]. Journal of Materials Processing Technology, 2000, 104(1/2):103-109.
[15] ZENG Z P, JONSSON S, ROVEN H J. The effects of defor-mation conditions on microstructure and texture of commercially pure Ti[J]. Acta Materialia, 2009, 57(19):5822-5833.
[16] 骆俊廷,陈艺敏,尹宗美,等. TA15钛合金热变形应力应变曲线及本构模型[J]. 稀有金属材料与工程, 2017,46(2):399-405. LUO J T, CHEN Y M, YIN Z M, et al. Stress strain curve and constitutive model of TA15 titanium alloy in hot deformation[J]. Rare Metal Materials and Engineering, 2017,46(2):399-405.
[17] 任彦军,王家伟,张晓兵,等. 基于LM算法BP神经网络的高炉-转炉界面铁水温度预报模型[J]. 钢铁, 2012, 47(9):40-42. REN Y J, WANG J W, ZHANG X B, et al. Prediction model of hot metal temperature for BF-BOF interface based on LM BP neural network[J]. Iron and Steel,2012, 47(9):40-42.
