超临界干燥制备PSNB气凝胶及其超疏水性能研究

doi:10.11868/j.issn.1001-4381.2016.000958

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(2369 KB)

HTML ( 21 )
输出: BibTeX | EndNote (RIS)

摘要

以聚硼硅氮烷为原料，二乙烯苯为交联剂，通过硅氢加成反应结合超临界干燥工艺制备聚硼硅氮烷气凝胶。利用红外光谱、扫描电镜、比表面积与孔径分析仪对所制备气凝胶的形成及微观结构进行了分析，并通过接触角仪对样品的疏水性能进行了研究。结果表明：聚硼硅氮烷和二乙烯苯通过硅氢加成反应制得聚硼硅氮烷气凝胶；所制备的气凝胶的比表面积为307~458cm²/g，孔体积为1.20~2.17cm³/g，孔径分布为2.0~100nm，是一种具有三维网状结构的介孔材料，并具有超疏水性能，且当起始溶剂体积分数为85%时，气凝胶疏水性能最佳，接触角为151.5°。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	刘洪丽
	邓青沂
	褚鹏

关键词 ：聚硼硅氮烷, 硅氢加成反应, 气凝胶, 二氧化碳超临界干燥, 疏水性

Abstract：

The polyborosilazane aerogels were prepared by hydrosilylation reaction using polyborosilazane as raw material with divinylbenzeneas crosslinking agent, and then dried by CO₂ supercritical drying. Infrared spectroscopy, scanning electron microscopy, specific surface area and aperture analyzer, contact angle measurement were used to characterize the formation, microstructure and hydrophobic property of polyborosilazane aerogels. The results show that the polyborosilazane aerogels are prepared by hydrosilylation reaction using polyborosilazane with divinylbenzene; the specific surface areas of the resultant aerogels with three-dimensional network structure are in the range of 307-458cm²/g, which is a mesoporous material with superhydrophobic property. The pore volume is in the range of 1.20-2.17cm³/g and pore size is in the range of 2.0-100nm, and when the volume fraction of the starting solvent is 85%, the hydrophobic performance of polyborosilazane aerogels is the best, the water contact angle is 151.5°.

Key words： polyborosilazane hydrosilylation reaction aerogel CO₂ supercritical drying hydrophobic property

收稿日期: 2016-08-11 出版日期: 2018-02-01

中图分类号:

O648

基金资助:国家自然科学基金资助项目(51472175);天津市应用基础与前沿技术研究计划重点资助项目(15JCZDJC37200)

通讯作者: 刘洪丽 E-mail: lhlbh@163.com; 1599411585@qq.com

作者简介: 刘洪丽(1971-), 女, 教授, 博士, 研究方向为绿色化学建材, 联系地址:天津市西青区津静路26号天津城建大学材料学院(300384), E-mail: lhlbh@163.com, 1599411585@qq.com

引用本文:

刘洪丽, 邓青沂, 褚鹏. 超临界干燥制备PSNB气凝胶及其超疏水性能研究[J]. 材料工程, 2018, 46(2): 22-26.
Hong-li LIU, Qing-yi DENG, Peng CHU. Preparation and Hydrophobic Properties of Polyborosilazane Aerogels via CO₂ Supercritical Drying. Journal of Materials Engineering, 2018, 46(2): 22-26.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000958 或 http://jme.biam.ac.cn/CN/Y2018/V46/I2/22

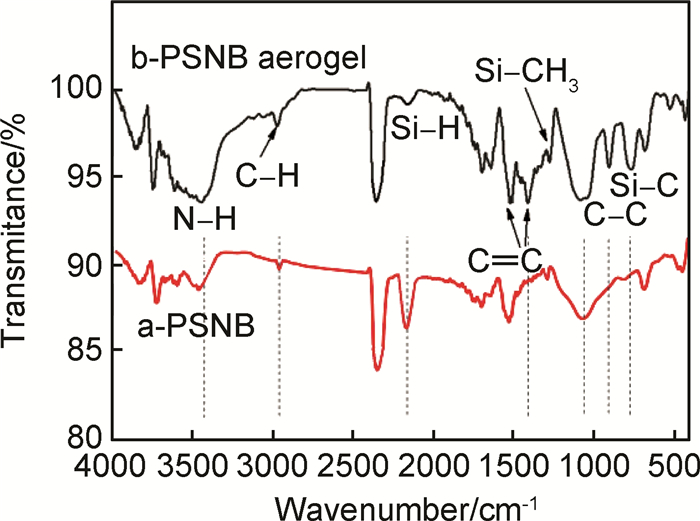

Fig.1 PSNB先驱体和PSNB气凝胶的红外光谱图

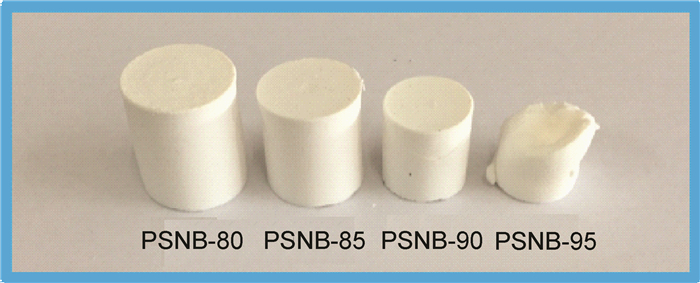

Fig.2 PSNB气凝胶实物照片

Fig.3 PSNB气凝胶的SEM照片 (a)PSNB-80；(b)PSNB-85；(c)PSNB-90；(d)PSNB-95

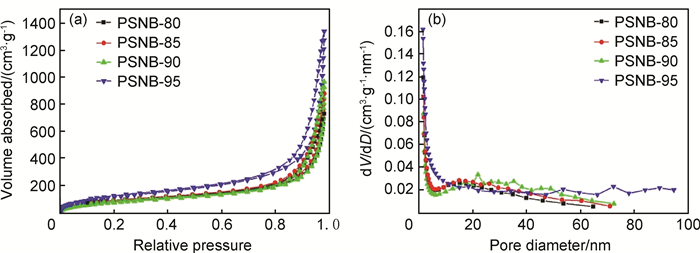

Fig.4 PSNB气凝胶不同起始溶剂浓度的吸附-脱附等温线(a)和孔径分布图(b)

Table 1 气凝胶不同溶剂浓度的微观结构参数表

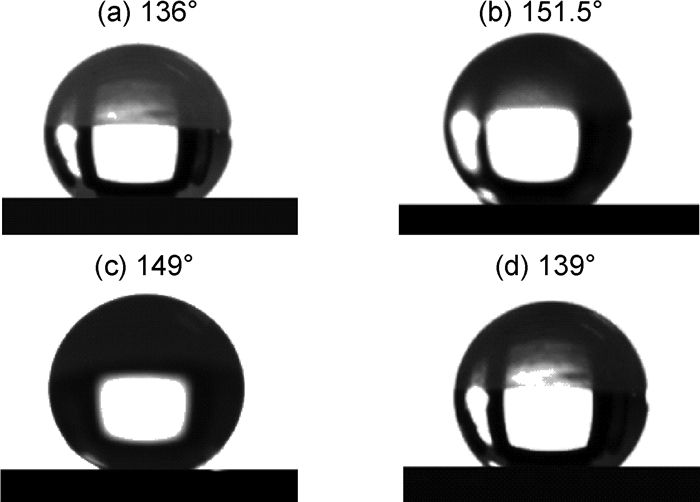

Fig.5 PSNB气凝胶的接触角图像 (a)PSNB-80;(b)PSNB-85;(c)PSNB-90;(d)PSNB-95

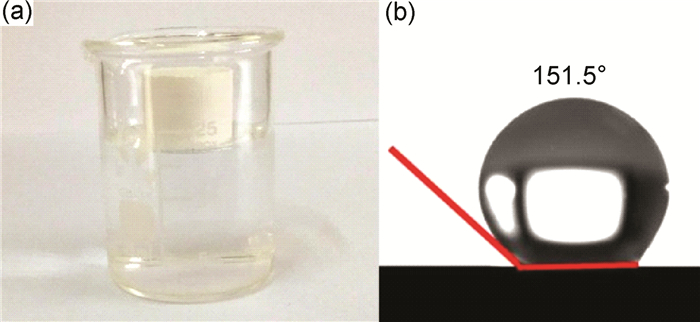

Fig.6 PSNB-85气凝胶(密度为0.19g/cm³)浮于水面照片(a)及接触角图像(b)

1	HRUBESH L W . Aerogel applications[J]. Journal of Non-Crystalline Solids, 1998, 225, 335- 342. doi: 10.1016/S0022-3093(98)00135-5
2	MUCALO M R , MILESTONE N B , BROWNI W M . NMR and X-ray diffraction studies of amorphous and crystallized pyrolysis residues from pre-ceramic polymers[J]. Journal of Material Science, 1997, 32 (9): 2433- 2444. doi: 10.1023/A:1018517526441
3	房光强, 沈登雄, 栗付平, 等. 聚酰亚胺/SiO₂纳米复合抗原子氧气凝胶的合成与性能[J]. 材料工程, 2015, 43 (12): 17- 23. doi: 10.11868/j.issn.1001-4381.2015.12.004
3	FANG G Q , SHEN D X , LI F P , et al. Synthesis and properties of atomic-oxygen resistant polyimide-SiO₂nanocomposite aerogels[J]. Journal of Materials Engineering, 2015, 43 (12): 17- 23. doi: 10.11868/j.issn.1001-4381.2015.12.004
4	ALKEMPER J , BUCHHOLZ T , MURAKAMI K , et al. Solidification of aluminium alloys in aerogel moulds[J]. Journal of Non-crystalline Solids, 1995, 186, 395- 401. doi: 10.1016/0022-3093(95)00060-7
5	ALKEMPER J , SOUS S , STOCKER C , et al. Directional solidification in an aerogel furnace with high resolution optical temperature measurements[J]. Journal of Crystal Growth, 1998, 191, 252- 260. doi: 10.1016/S0022-0248(98)00114-6
6	AHMED M S , ATRIA Y A . Aerogel materials for photocatalytic detoxification of cyanide wastes in water[J]. Journal of Non-crystalline Solids, 1995, 186, 402- 407. doi: 10.1016/0022-3093(95)00085-2
7	YING T Y , YANG K L , YIACOUMI S , et al. Electrosorption of ions from aqueous solutions by nanostructured carbon aerogel[J]. Journal of Colloid and Interface Science, 2002, 250 (1): 18- 27. doi: 10.1006/jcis.2002.8314
8	GOEL J , KADIRBELU K , RAJAGOPAL C , et al. Removal of mercury from aqueous solution by adsorption on carbon aerogel:response surface methodological approach[J]. Carbon, 2005, 43 (1): 197- 200. doi: 10.1016/j.carbon.2004.08.002
9	KISTLER S S . Coherent expanded aerogels and jellies[J]. Nature, 1931, 127 (3211): 741- 741.
10	HE S , LI Z , SHI X , et al. Rapid synthesis of sodium silicate based hydrophobic silica aerogel granules with large surface area[J]. Advanced Powder Technology, 2015, 26 (2): 537- 541. doi: 10.1016/j.apt.2015.01.002
11	NGUYEN C T , NGHIEM Q D , KIM D . Controlled/living radical polymerization of vinylcyclicsilazane by RAFT process and their block copolymers[J]. Journal of Polymer Science Part A Polymer Chemistry, 2008, 46 (13): 4594- 4601. doi: 10.1002/(ISSN)1099-0518
12	SORARÙ G D , MODENA S , GUADAGNINO E , et al. Chemical durability of silicon oxycarbide glasses[J]. Journal of the American Ceramic Society, 2002, 85 (6): 1529- 1536. doi: 10.1111/jace.2002.85.issue-6
13	冯坚, 高庆福, 冯军宗, 等. 纤维增强SiO₂气凝胶隔热复合材料的制备及其性能[J]. 国防科技大学学报, 2010, 32 (1): 40- 44.
13	FENG J , GAO Q F , FENG J Z , et al. Preparation and properties of fiber reinforced SiO₂ aerogel insulation composites[J]. Journal of National University of Defense Technology, 2010, 32 (1): 40- 44.
14	余煜玺, 吴晓云, 伞海生. 常压干燥制备疏水性SiO₂-玻璃纤维复合气凝胶及表征[J]. 材料工程, 2015, 43 (8): 31- 36. doi: 10.11868/j.issn.1001-4381.2015.08.006
14	YU Y X , WU X Y , SAN H S . Preparation and characterization of hydrophobic SiO₂-glass fibers aerogels via ambient pressure drying[J]. Journal of Materials Engineering, 2015, 43 (8): 31- 36. doi: 10.11868/j.issn.1001-4381.2015.08.006
15	BLASZCZYŃSKI T , SLOSARCZYK A , MORAWSKI M . Synthesis of silica aerogel by supercritical drying method[J]. Procedia Engineering, 2013, 57 (1): 200- 206.
16	何余生, 李忠, 奚红霞, 等. 气固吸附等温线的研究进展[J]. 离子交换与吸附, 2004, 20 (4): 376- 384.
16	HE Y S , LI Z , XI H X , et al. Research progress of gas-solid adsorption isotherms[J]. Ion Exchange and Adsorption, 2004, 20 (4): 376- 384.
