梯度结构Al<sub>2</sub>O<sub>3</sub>-(W, Ti) C-TiN-Mo-Ni纳米金属陶瓷刀具材料的设计及制备

doi:10.11868/j.issn.1001-4381.2016.001286

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5012 KB)

HTML ( 13 )
输出: BibTeX | EndNote (RIS)

摘要

基于对高速硬切削时刀具应力和温度分布，以及刀具内部疲劳裂纹扩展仿真分析，提出一个组分含量分布和微观结构具有梯度特征的设计模型。通过韧性相的添加和梯度结构的引入，实现疲劳裂纹扩展速率的减缓，从而提高刀具寿命。采用二阶段热压烧结工艺制备出具有梯度结构的Al₂O₃-（W，Ti）C-TiN-Mo-Ni纳米复合刀具材料，并对其微观结构和力学性能进行研究。结果表明：所制备的梯度结构金属陶瓷材料表层硬度、内层的断裂韧度和抗弯强度分别达到19.258GPa，10.015MPa·m^1/2和1017.475MPa，满足高速硬切削刀具的性能要求。材料的断口出现韧窝和黏结相撕裂形成的断裂棱，有利于断裂韧度和抗弯强度的增强，从而提高刀具抗疲劳裂纹扩展能力。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	倪秀英
	赵军
	孙加林
	李洪江
	侯冠明
	田源

关键词 ：梯度结构, 金属陶瓷, 疲劳裂纹, 结构设计, 热压烧结

Abstract：

Based on the analysis on temperature and stress distributions, as well as fatigue crack propagation in cutting tools, a model for designing compositional distribution and microstructure with graded characteristics was proposed. The addition of ductile phase and the introduction of the graded structure are beneficial to slow down the fatigue crack propagation rate and improve tool life.Al₂O₃-(W, Ti)C-TiN-Mo-Ni nano-composite tool material with graded structures was fabricated via two stage hot pressing sintering process, and the microstructure and mechanical properties were studied. The results show that the surface hardness, fracture toughness of inner layer and bending strength of the cermet with sintered gradient structure reach 19.258GPa, 10.015MPa·m^1/2 and 1017.475MPa, respectively.The performance requirements to cutting tools were met. The dimple cleavage and torn edge of the binding phase in the fracture surfaces can be beneficial to the improvement of the fracture toughness and bending strength, so the resistance to fatigue crack propagation of tools is improved.

Key words： graded structure cermet fatigue crack structure design hot-pressing sintering

收稿日期: 2016-10-24 出版日期: 2018-02-01

中图分类号:

TQ174

基金资助:国家自然科学基金资助项目(51475273)

通讯作者: 赵军 E-mail: zhaojun@sdu.edu.cn

作者简介: 赵军(1967-), 男, 教授, 博士, 研究方向:高效切削刀具, 联系地址:山东省济南市经十路17923号山东大学机械工程学院(250061), E-mail: zhaojun@sdu.edu.cn

引用本文:

倪秀英, 赵军, 孙加林, 李洪江, 侯冠明, 田源. 梯度结构Al₂O₃-(W, Ti) C-TiN-Mo-Ni纳米金属陶瓷刀具材料的设计及制备[J]. 材料工程, 2018, 46(2): 50-56.
Xiu-ying NI, Jun ZHAO, Jia-lin SUN, Hong-jiang LI, Guan-ming HOU, Yuan TIAN. Design and Fabrication of Al₂O₃-(W, Ti)C-TiN-Mo-Ni Nano-composite Cermet Tool Materials with Graded Structures. Journal of Materials Engineering, 2018, 46(2): 50-56.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.001286 或 http://jme.biam.ac.cn/CN/Y2018/V46/I2/50

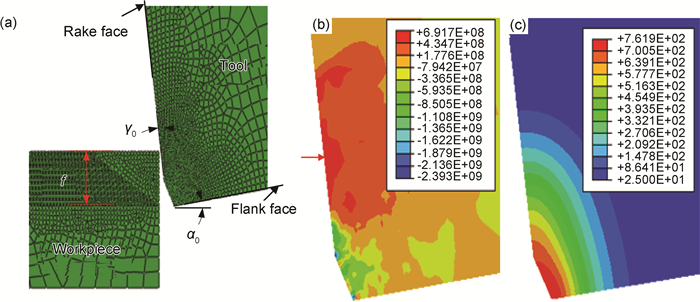

Fig.1 有限元模型及仿真结果 (a)切削仿真模型；(b)最大主应力场；(c)温度场

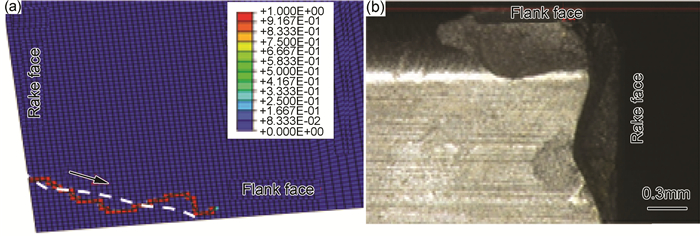

Fig.2 切削疲劳裂纹仿真(a)和实验结果(b)

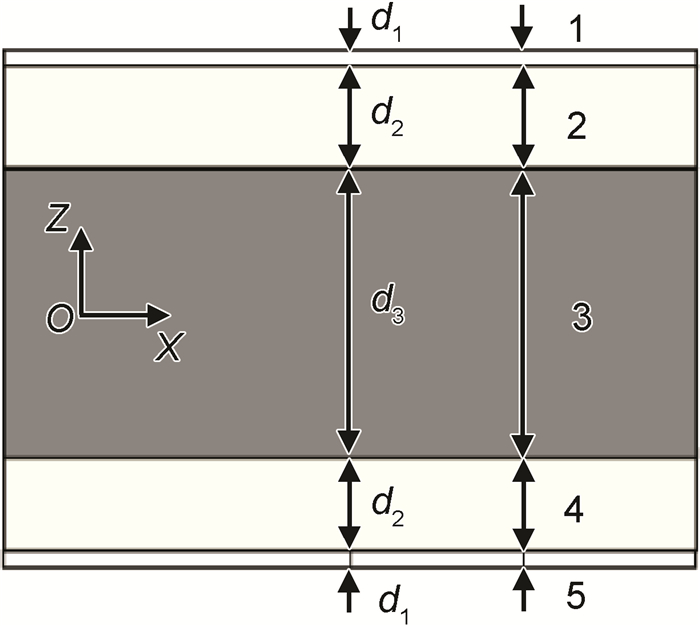

Fig.3 5层对称梯度结构材料模型

Table 1 不同纳米复合材料的组成(体积分数/%)

Table 2 5层对称型梯度结构金属陶瓷刀具材料设计

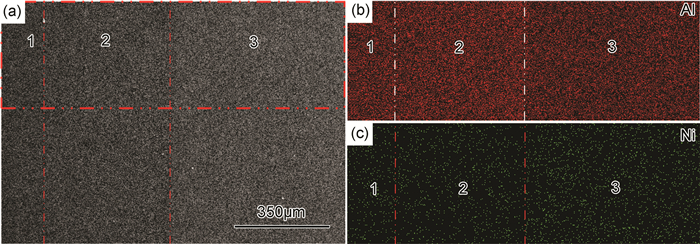

Fig.4 样品A的横剖面(a)及红色框内的Al(b)和Ni(c)元素面分布图

Table 3 梯度纳米复合材料的力学性能

Fig.5 梯度结构材料断口各层的SEM图 (a)样品A；(b)样品D；(1)第1层；(2)第2层；(3)第3层

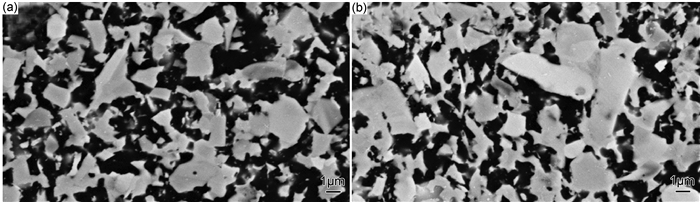

Fig.6 样本A抛光面的SEM图 (a)第1层；(b)第3层

1	WANG B , LIU Z . Cutting performance of solid ceramic end milling tools in machining hardened AlSi H13 steel[J]. International Journal of Refractory Metals and Hard Materials, 2016, 55, 24- 32. doi: 10.1016/j.ijrmhm.2015.11.004
2	ZHOU S Q , WEI Z , WEI H X , et al. Thermodynamics of the formation of contiguity between ceramic grains and interface structures of Ti(C, N)-based cermets[J]. International Journal of Refractory Metals and Hard Materials, 2009, 27 (4): 740- 746. doi: 10.1016/j.ijrmhm.2008.12.005
3	ZHAO J , AI X . Fabrication and cutting performance of an Al₂O₃-(W, Ti)C functionally gradient ceramic tool[J]. International Journal of Machining and Machinability of Materials, 2006, 1 (3): 277- 286. doi: 10.1504/IJMMM.2006.011371
4	TIAN X , ZHAO J , WANG Y , et al. Fabrication and mechanical properties of Si₃N₄/(W, Ti)C/Co graded nano-composite ceramic tool materials[J]. Ceramics International, 2015, 41 (3): 3381- 3389. doi: 10.1016/j.ceramint.2014.10.067
5	KEⅡCHIRO T , TAKAFUMI S , HIROYASU A . Evaluation of R-curve behavior of ceramic-metal functionally graded materials by stable crack growth[J]. Engineering Fracture Mechanics, 2005, 72, 2359- 2372. doi: 10.1016/j.engfracmech.2005.03.006
6	史国栋, 梁军, 陈贵清, 等. 金属/陶瓷微叠层材料的微观结构及力学性能[J]. 稀有金属材料与工程, 2007, 36, 677- 680. doi: 10.3321/j.issn:1002-185x.2007.z2.195
6	SHI G D , LIANG J , CHEN G Q , et al. Microstructure and mechanical properties of metal/ceramic microlaminate composites[J]. Rare Metal Materials and Engineering, 2007, 36, 677- 680. doi: 10.3321/j.issn:1002-185x.2007.z2.195
7	HUANG C Y , CHEN Y L . Design and impact resistant analysis of functionally graded Al₂O₃-ZrO₂ ceramic composite[J]. Materials & Design, 2016, 91, 294- 305.
8	ZHOU W , ZHOU H , ZHANG R , et al. Measuring residual stress and its influence on properties of porous ZrO₂/(ZrO₂+Ni) ceramics[J]. Materials Science and Engineering:A, 2015, 622, 82- 90. doi: 10.1016/j.msea.2014.11.018
9	ZHENG G M , ZHAO J , ZHOU Y H , et al. Fabrication and characterization of Sialon-Si₃N₄ graded nano-composite ceramic tool materials[J]. Composites Part B:Engineering, 2011, 42 (7): 1813- 1820. doi: 10.1016/j.compositesb.2011.07.007
10	CARVALHO O , BUCIUMEANU M , MIRANDA G , et al. Development of a method to produce FGMs by controlling the reinforcement distribution[J]. Materials & Design, 2016, 92, 233- 239.
11	郑光明, 赵军, 周咏辉, 等. Sialon-Si₃N₄系梯度纳米复合陶瓷刀具材料的设计及制备[J]. 硅酸盐学报, 2011, 39 (5): 783- 788.
11	ZHENG G M , ZHAO J , ZHOU Y H , et al. Design and fabrication of Sialon-Si₃N₄ gradient nano-composite ceramic tool materials[J]. Journal of the Chinese Ceramic Society, 2011, 39 (5): 783- 788.
12	YIN Z B , HUANG C Z , ZOU B , et al. Preparation and characterization of Al₂O₃/TiC micro-nano-composite ceramic tool materials[J]. Ceramics International, 2013, 39, 4253- 4262. doi: 10.1016/j.ceramint.2012.10.277
13	ZHOU Y H , AI X , ZHAO J , et al. Mechanical properties and microstructure of A1₂O₃/(W, Ti)C nanocomposite[J]. Key Engineering Materials, 2008, 368/372, 717- 720. doi: 10.4028/www.scientific.net/KEM.368-372
14	LI J , SUN J L , HUANG L P . Effects of ductile cobalt on fracture behavior of Al₂O₃-TiC ceramic[J]. Materials Science and Engineering:A, 2002, 323, 17- 20. doi: 10.1016/S0921-5093(01)01377-6
15	YIN Z B , HUANG C Z , ZOU B , et al. Effects of particulate metallic phase on microstructure and mechanical properties of carbide reinforced alumina ceramic tool materials[J]. Ceramics International, 2014, 40, 2809- 2817. doi: 10.1016/j.ceramint.2013.10.033
16	陈维平, 韩孟岩, 杨少锋. Al₂O₃陶瓷复合材料的研究进展[J]. 材料工程, 2011, (3): 91- 96.
16	CHEN W P , HAN M Y , YANG S F . Research progress of Al₂O₃ ceramic composites[J]. Journal of Materials Engineering, 2011, (3): 91- 96.
17	QU H X , ZHU S G . Two step hot pressing sintering of dense fine grained WC-Al₂O₃ composites[J]. Ceramics International, 2013, 39 (5): 5415- 5425. doi: 10.1016/j.ceramint.2012.12.049
18	YANG D Y , YOON D Y , KANG S L . Suppression of abnormal grain growth in WC-Co via two step liquid phase sintering[J]. Journal of the American Ceramic Society, 2011, 94 (4): 1019- 1024. doi: 10.1111/jace.2011.94.issue-4
19	EVANS A G , CHARLES E A . Fracture toughness determinations by indentation[J]. Journal of the American Ceramic Society, 1976, 59 (7/8): 371.
20	王跃明, 时启龙. 等温化学气相渗透法制备C/C-SiC复合材料的摩擦磨损性能[J]. 航空材料学报, 2017, 37 (4): 52- 60. doi: 10.11868/j.issn.1005-5053.2016.000199
20	WANG Y M , SHI Q L . Tribological property of C/C-SiC composites fabricated by isothermal chemical vapor infiltration[J]. Journal of Aeronautical Materials, 2017, 37 (4): 52- 60. doi: 10.11868/j.issn.1005-5053.2016.000199
