双相不锈钢中奥氏体沉淀相的晶粒取向及界面特征分布

doi:10.11868/j.issn.1001-4381.2017.000179

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5545 KB)

HTML ( 23 )
输出: BibTeX | EndNote (RIS)

摘要

利用电子背散射衍射（EBSD）技术和基于Rodrigues-Frank（R-F）空间的取向差分析方法研究双相不锈钢中过饱和铁素体（α）经1323K沉淀析出的奥氏体（γ）相的晶粒取向和界面（晶界和相界）特征分布。结果表明：α晶粒经ε=2预先轧制变形后，γ析出相具有较强的织构，晶粒内取向差呈现以小角度晶界为主，孪晶界次之的晶界特征分布，这些晶粒与α基体的取向关系满足K-S，N-W和Bain关系的数量基本相当。具有相同取向而未经轧制变形的α晶粒沉淀析出的γ晶粒取向基本随机分布，与基体的取向关系主要以K-S为主；但内部发生孪晶的γ晶粒与基体不再满足K-S关系，其周围的相界约有1/4满足35°/〈110〉的新型取向关系。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	许婷
	方晓英
	朱言利
	王铭
	尹文红
	郭红

关键词 ：晶粒取向, 界面特征分布, 沉淀析出, 双相不锈钢

Abstract：

The grain orientation and the interface character distribution were investigated for γ precipitation from the supersaturated α during aging at 1323K in duplex stainless steel by using EBSD technique and misorientation analysis based on Rodrigues-Frank (R-F) space. The results show that sharp texture and the grain boundary character distribution featured by a high population of low angle grain boundary (LAB) and a small number of twin boundaries (TBs) are produced in the γ precipitated from cold-rolled supersaturated coarse α with pre-strain of ε=2. The precipitated γ grains approximately possess K-S, N-W and Bain orientation relationship with the α matrix equally. For the unstrained α matrix of the same orientation, nearly random texture and the grain boundary character predominated by TBs are introduced in the γ precipitation after aging. Most of γ have K-S relation with the α matrix. However, twining in γ leads to the deviation from typical K-S orientation relationship. And also, one-fourth of phase boundaries along γ grains containing twins are found to obey a new orientation relationship of 35°/〈110〉 with α matrix.

Key words： grain orientation interface character distribution precipitation duplex stainless steel

收稿日期: 2017-02-22 出版日期: 2018-02-01

中图分类号:

TG142

基金资助:国家自然科学基金项目(51471100);国家自然科学基金项目(51171095)

通讯作者: 方晓英 E-mail: fxy@sdut.edu.cn

作者简介: 方晓英(1971-), 女, 博士, 教授, 主要从事金属材料界面工程研究, 联系地址:山东省淄博市张店区新村西路266号山东理工大学机械工程学院(255000), E-mail: fxy@sdut.edu.cn

引用本文:

许婷, 方晓英, 朱言利, 王铭, 尹文红, 郭红. 双相不锈钢中奥氏体沉淀相的晶粒取向及界面特征分布[J]. 材料工程, 2018, 46(2): 34-40.
Ting XU, Xiao-ying FANG, Yan-li ZHU, Ming WANG, Wen-hong YIN, Hong GUO. Grain Orientation and Interface Character Distribution During Austenite Precipitation Phase in Duplex Stainless Steel. Journal of Materials Engineering, 2018, 46(2): 34-40.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000179 或 http://jme.biam.ac.cn/CN/Y2018/V46/I2/34

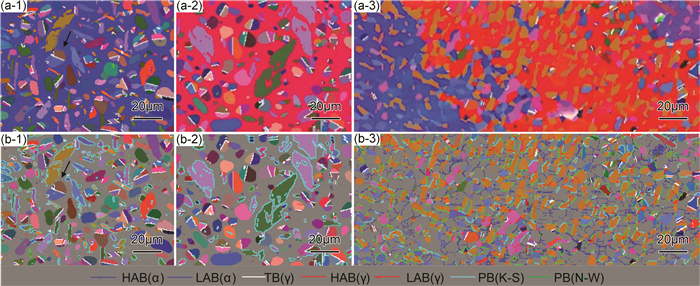

Fig.1 不同处理状态样品的EBSD重构图
(a)两相晶粒取向成像图；(b)内界面(晶界和相界)特征分布图；(1)样品A(α的取向为(111)[0${\rm{\bar 1}}$1])；(2)样品A(α的取向为(001)[${\rm{\bar 2}}$10])；(3)样品B

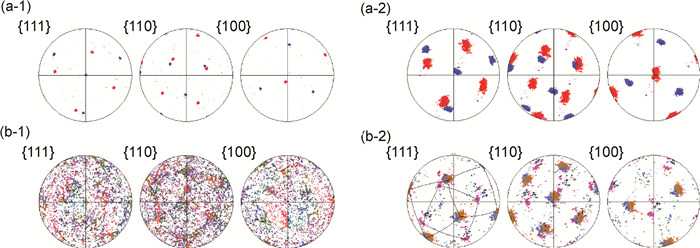

Fig.2 基体α和析出相γ的极图 (a)α基体；(b)γ析出相；(1)样品A；(2)样品B

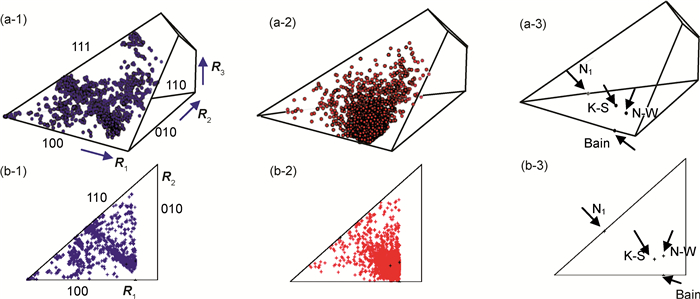

Fig.3 利用R-F空间表示相界取向差
(a)R-F空间基区；(b)R-F基面投影图；(1)样品A；(2)样品B；(3)K-S，N-W，Bain和N₁关系的理想位置

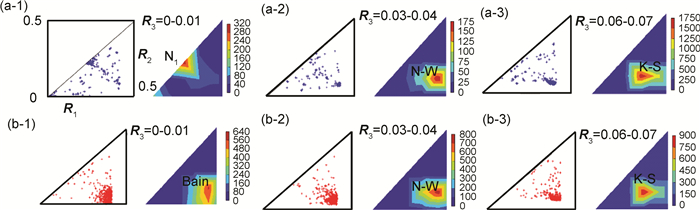

Fig.4 利用R-F空间基面投影图表示相界取向差
(a)样品A；(b)样品B；(1)N₁关系及Bain关系在R-F空间基面上的投影及分布强度；(2)N-W关系在R-F空间基面上的投影及分布强度；(3)K-S关系在R-F空间基面上的投影及分布强度

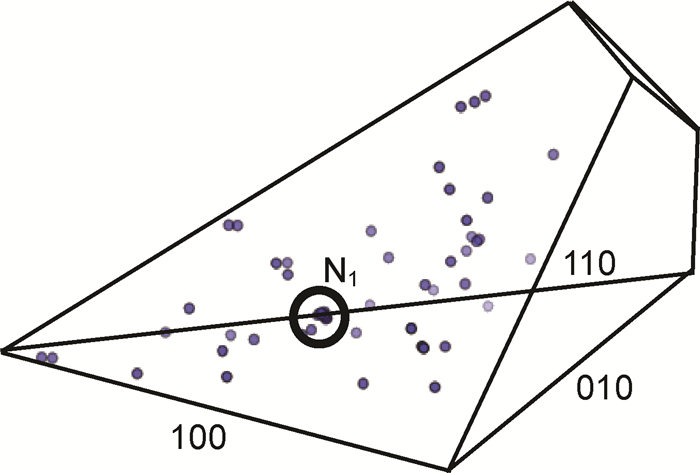

Fig.5 包含孪晶的γ与基体α的取向关系

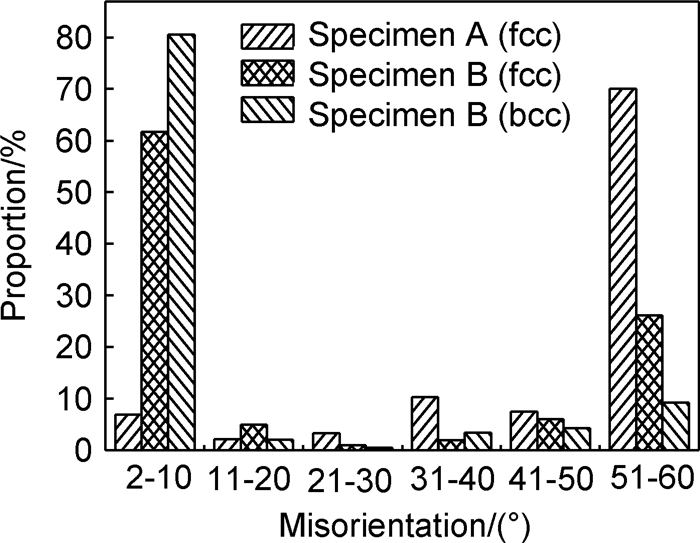

Fig.6 样品A和样品B中的γ析出相(A1，A2分别对应图 1(a-1)，(a-2))与α基体(样品B)晶界取向差分布

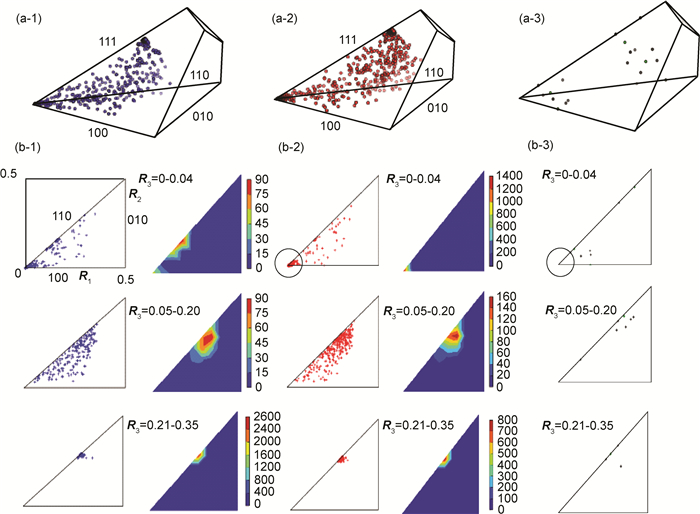

Fig.7 利用R-F空间表示γ相中晶粒取向差
(a)R-F空间基区；(b)按照不同R₃(0~0.35)截面区的数据点在基面上的投影及分布强度；(1)样品A；(2)样品B；(3)24种K-S变体间的取向差(黑色点)和12种N-W变体间的取向差(绿色点)分布

1	FANG X Y , LIU Z Y , TIKHONOVA M , et al. Evolution of texture and development of ∑3ⁿ grain clusters in 316 austenitic stainless steel during thermal mechanical processing[J]. Journal of Materials Science, 2013, 48 (3): 997- 1004. doi: 10.1007/s10853-012-6829-9
2	秦健朝, 崔仁杰, 黄朝晖, 等. 小角度晶界对DD5镍基单晶高温合金力学性能的影响[J]. 航空材料学报, 2017, 37 (3): 24- 29. doi: 10.11868/j.issn.1005-5053.2016.000127
2	QIN J C , CUI R J , HUANG Z H , et al. Effect of low angle grain boundaries on mechanical properties of DD5 single crystal Ni-base superalloy[J]. Journal of Aeronautical Materials, 2017, 37 (3): 24- 29. doi: 10.11868/j.issn.1005-5053.2016.000127
3	方晓英, 刘志勇, TIKHONOVAM, 等. 多向锻造和单向轧制304不锈钢高温退火后的晶界特征分布[J]. 金属学报, 2012, 48 (8): 895- 906.
3	FANG X Y , LIU Z Y , TIKHONOVA M , et al. Grain boundary plane distribution in 304 steel annealed at high temperature after a parallel processing of multiple forging and direct rolling[J]. Acta Metallurgica Sinica, 2012, 48 (8): 895- 906.
4	张留艳, 马爱斌, 江静华, 等. ECAP加工与热处理对工业纯铁点蚀行为的影响[J]. 材料工程, 2016, 44 (11): 66- 72. doi: 10.11868/j.issn.1001-4381.2016.11.011
4	ZHANG L Y , MA A B , JIANG J H , et al. Effect of ECAP and heat-treatment on pitting corrosion behavior of industrial pure iron[J]. Journal of Materials Engineering, 2016, 44 (11): 66- 72. doi: 10.11868/j.issn.1001-4381.2016.11.011
5	MICHIUCHI M , KOKAWA H , WANG Z J , et al. Twin-induced grain boundary engineering for 316 austenitic stainless steel[J]. Acta Materialia, 2006, 54 (19): 5179- 5184. doi: 10.1016/j.actamat.2006.06.030
6	马洛宁, 王天佑, 张峥. 短时氧化对定向凝固高温合金不同取向腐蚀性能的影响[J]. 材料工程, 2016, 44 (7): 78- 87. doi: 10.11868/j.issn.1001-4381.2016.07.014
6	MA L N , WANG T Y , ZHANG Z . Influence of short-time oxidation on corrosion properties of directionally solidified superalloys with different orientations[J]. Journal of Materials Engineering, 2016, 44 (7): 78- 87. doi: 10.11868/j.issn.1001-4381.2016.07.014
7	SHEK C H , LAI J K L , WONG K W , et al. Early-stage widmanstatten growth of the γ phase in a duplex steel[J]. Metallurgical and Materials Transactions A, 2000, 31 (1): 15- 19. doi: 10.1007/s11661-000-0047-9
8	QIU D , ZHANG W Z . A TEM study of the crystallography of austenite precipitates in a duplex stainless steel[J]. Acta Materialia, 2007, 55 (20): 6754- 6764. doi: 10.1016/j.actamat.2007.08.024
9	HUANG X X , TSUZAKI K , MAKI T . Subgrain growth and misorientation of the α matrix in an (α+γ) microduplex stainless steel[J]. Acta Metallurgica et Materialia, 1995, 43 (9): 3375- 3384. doi: 10.1016/0956-7151(95)00028-T
10	RANDLE V , DAY A . Use of Rodrigues-Frank space for representation of microtexture and grain boundary parameters[J]. Materials Science and Technology, 1993, 9 (12): 1069- 1078. doi: 10.1179/mst.1993.9.12.1069
11	HE Y L , GODET S , JONAS J J . Representation of misorientations in Rodrigues-Frank space:application to the Bain, Kurdjumov-Sachs, Nishiyama-Wassermann and Pitsch orientation relationships in the Gibeon meteorite[J]. Acta Materialia, 2005, 53 (4): 1179- 1190. doi: 10.1016/j.actamat.2004.11.021
12	FANG X Y , YIN W H , QIN C X , et al. The interface character distribution of cold-rolled and annealed duplex stainless steel[J]. Materials Characterization, 2016, 118, 397- 404. doi: 10.1016/j.matchar.2016.06.017
13	LISCHEWSKI I , GOTTSTEIN G . Nucleation and variant selection during the α-γ-α phase transformation in microalloyed steel[J]. Acta Materialia, 2011, 59 (4): 1530- 1541. doi: 10.1016/j.actamat.2010.11.017
14	FURUHARA T , MAKI T . Variant selection in heterogeneous nucleation on defects in diffusional phase transformation and precipitation[J]. Materials Science and Engineering:A, 2001, 312 (1): 145- 154.
15	BUTRON-GUILLEN M P , JONAS J J , RAY R K . Effect of austenite pancaking on texture formation in a plain carbon and a Nb microalloyed steel[J]. Acta Metallurgica et Materialia, 1994, 42 (11): 3615- 3627. doi: 10.1016/0956-7151(94)90428-6
16	MORITO S , TANAKA H , KONISHI R , et al. The morphology and crystallography of lath martensite in Fe-C alloys[J]. Acta Materialia, 2003, 51 (6): 1789- 1799. doi: 10.1016/S1359-6454(02)00577-3
17	WANG W G , DAI Y , LI J H , et al. An atomic-level mechanism of annealing twinning in copper observed by molecular dynamics simulation[J]. Crystal Growth & Design, 2011, 11 (7): 2928- 2934.
18	ARONSON H I , SPANOS G , MASAMURA R A , et al. Sympathetic nucleation:an overview[J]. Materials Science and Engineering:B, 1995, 32 (3): 107- 123. doi: 10.1016/0921-5107(95)80022-0
19	YANG J R , BHADESHIA H K D H . Acicular ferrite transformation in alloy-steel weld metals[J]. Journal of Materials Science, 1991, 26 (3): 839- 845. doi: 10.1007/BF00588325
20	CHEN C Y , YEN H W , YANG J R . Sympathetic nucleation of austenite in a Fe-22Cr-5Ni duplex stainless steel[J]. Scripta Materialia, 2007, 56 (8): 673- 676. doi: 10.1016/j.scriptamat.2006.12.021
21	CHOWDURY S G , DATTA S , KUMAR B R , et al. Randomization of texture during recrystallization of austenite in a cold rolled metastable austenitic stainless steel[J]. Materials Science and Engineering:A, 2007, 443 (1): 114- 119.
