热浸镀铝球墨铸铁失效机理研究

doi:10.11868/j.issn.1001-4381.2016.08.013

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(7968 KB)

HTML ( 16 )
输出: BibTeX | EndNote (RIS)

摘要

采用VK-9710型激光共聚焦显微镜对热浸镀铝球墨铸铁试样的三点弯曲失效过程进行原位观察，分析镀层和基体的裂纹萌生和扩展机理。结果表明：对于纯Al浸镀球墨铸铁，在拉应力作用下，铁铝合金镀层率先萌生裂纹，诱导临近基体中铁素体撕裂与石墨球剥离，裂纹近似垂直于拉应力方向并沿着临近石墨球最短途径扩展；压应力导致表面纯Al层剥离和铁铝合金层破碎，镀层失效对球墨铸铁基体基本无影响。对于Al-3.7Si-1.0RE浸镀球墨铸铁，拉应力作用下的失效机理与纯Al浸镀相似；压应力作用下纯Al层和铁铝合金层与基体脱开，表现为铁素体基体失效。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	雍薇
	黄兴民
	张雷
	程乾
	戴光泽

关键词 ：球墨铸铁, 热浸镀铝, 原位观察, 失效机理

Abstract：

Using laser scanning confocal microscope, failure process of aluminized ductile iron samples were in-situ observed during three-point bending test, while crack initiation and propagation mechanism were analyzed in the area of coating and matrix. The results show that for hot-dipped samples in Al, cracks mainly initiate in the Fe-Al alloy coating under tensile stress, then induce the tearing of ferrite and the peeling of graphite in the adjacent matrix. Thereby cracks spread to the inner matrix in shortest route between graphite and ferrite, in the direction nearly vertical to tensile stress. In case of compression stress, aluminized alloy layer is crushed and aluminum layer is peeled off, which having little influence on the failure of matrix. For hot-dipped samples in Al-3.7Si-1.0RE, failure mechanism under tensile stress is similar to that of hot-dipped samples in Al; under compression stress, aluminum and Fe-Al alloy coatings are disengaged from matrix, exhibits failure occurring in the ferrite matrix.

Key words： ductile iron hot-dip aluminizing in-situ observation failure mechanism

收稿日期: 2014-11-04 出版日期: 2016-08-23

中图分类号:

TG174.443

通讯作者: 黄兴民 E-mail: xmhuang@home.swjtu.edu.cn

作者简介: 黄兴民(1980-), 男, 副教授, 博士, 主要从事高速列车关键零部件材料研究, 联系地址:西南交通大学九里校区材料学院(610031), xmhuang@home.swjtu.edu.cn

引用本文:

雍薇, 黄兴民, 张雷, 程乾, 戴光泽. 热浸镀铝球墨铸铁失效机理研究[J]. 材料工程, 2016, 44(8): 77-84.
Wei YONG, Xing-min HUANG, Lei ZHANG, Qian CHENG, Guang-ze DAI. Failure Mechanism of Hot Dip Aluminized Ductile Iron. Journal of Materials Engineering, 2016, 44(8): 77-84.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.08.013 或 http://jme.biam.ac.cn/CN/Y2016/V44/I8/77

Table 1 球墨铸铁化学成分(质量分数/%)

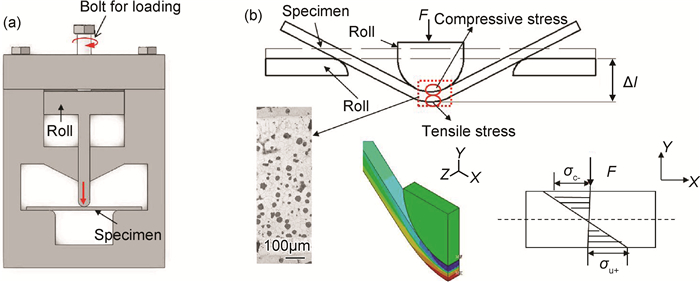

Fig.1 三点弯曲原位显微观察实验示意图
(a)加载装置; (b)试样应力分布

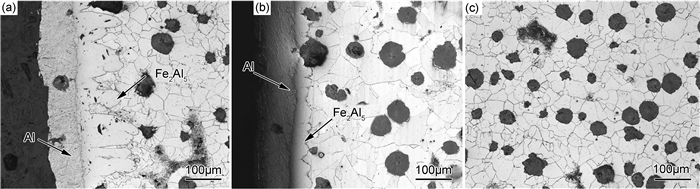

Fig.2 热浸镀铝球墨铸铁的显微形貌
(a)纯Al浸镀表层; (b)Al-3.7Si-1.0RE浸镀表层; (c)球墨铸铁基体

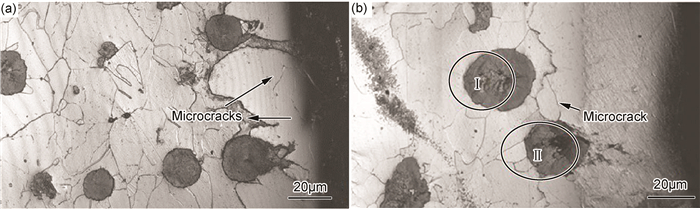

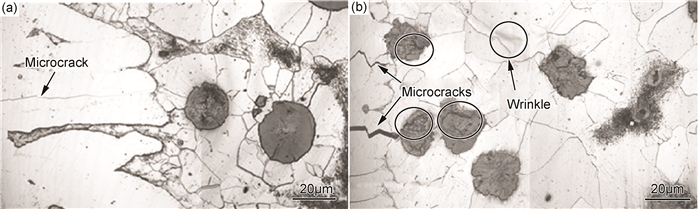

Fig.3 热浸镀铝球墨铸铁(受拉侧)裂纹萌生显微形貌
(a)纯Al浸镀; (b)Al-3.7Si-1.0RE浸镀

Fig.4 热浸镀铝球墨铸铁(受压侧)裂纹萌生显微形貌
(a)纯Al浸镀; (b)Al-3.7Si-1.0RE浸镀

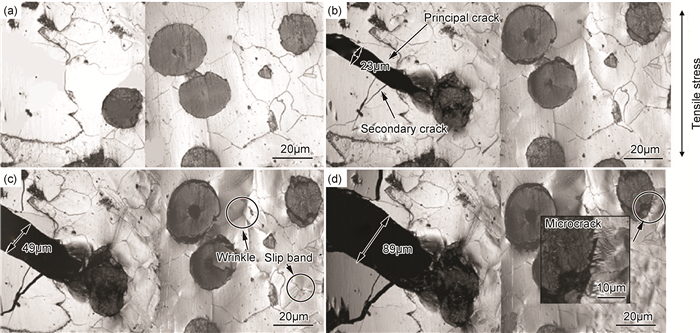

Fig.5 热浸镀铝球墨铸铁(纯Al浸镀)受拉侧显微形貌
(a)Δl=0mm; (b)Δl=5mm; (c)Δl=10mm; (d)Δl=15mm

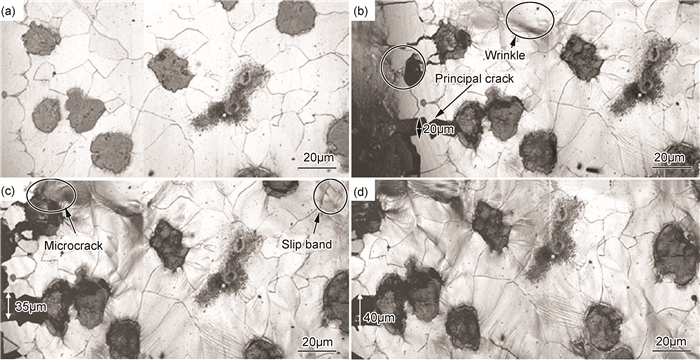

Fig.6 热浸镀铝球墨铸铁(Al-3.7Si-1.0RE浸镀)受拉侧显微形貌
(a)Δl=0mm; (b)Δl=5mm; (c)Δl=10mm; (d)Δl=15mm

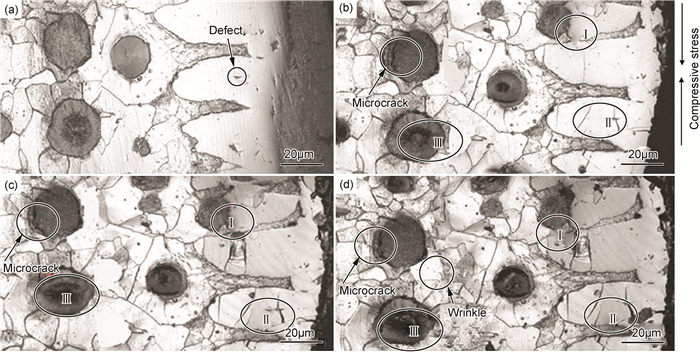

Fig.7 热浸镀铝球墨铸铁(纯Al浸镀)受压侧显微形貌
(a)Δl=0mm; (b)Δl=5mm; (c)Δl=10mm; (d)Δl=15mm

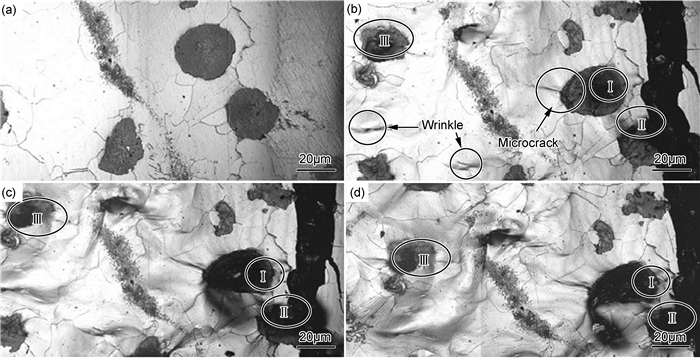

Fig.8 热浸镀铝球墨铸铁(Al-3.7Si-1.0RE浸镀)受压侧显微形貌
(a)Δl=0mm; (b)Δl=5mm; (c)Δl=10mm; (d)Δl=15mm

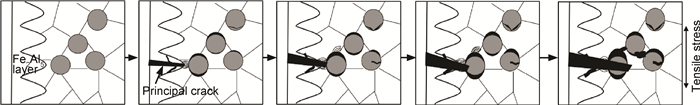

Fig.9 热浸镀铝球墨铸铁(纯Al浸镀)在拉应力状态下失效机理

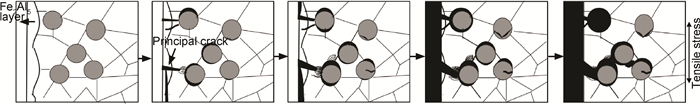

Fig.10 热浸镀铝球墨铸铁(Al-3.7Si-1.0RE浸镀)在拉应力状态下失效机理

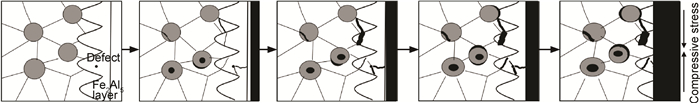

Fig.11 热浸镀铝球墨铸铁(纯Al浸镀)在压应力状态下失效机理
